HiPNUC HI14 High-Precision Industrial IMU

HiPNUC (Beijing) HI14 is a high-precision industrial IMU: gyro ±2000 °/s (±4000 °/s on S* high-range variants) with best S5-grade three-axis bias instability of 0.9/1.1/1.0 °/h; accelerometer ±24 g/±32 g with best bias instability of 0.0045~0.01 mg. IP68-rated housing (M12 version 59×40×20 mm, PG version 40×36×16.5 mm), wide 7~48 V supply, output at UART 1000 Hz / RS485 250 Hz / CAN 200 Hz, RoHS/CE certified — built for harsh environments such as outdoor robots, robot dogs, unmanned boats and industrial mobile platforms.

COMPONENT

IMUHigh PrecisionIP68HiPNUCIndustrial grade

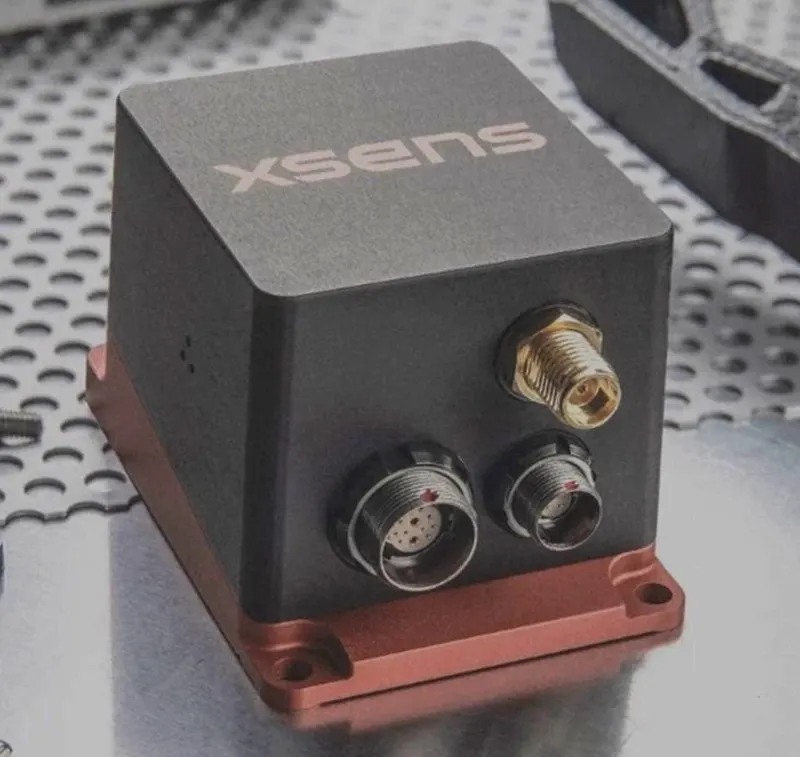

Movella (Xsens) MTi-680G RTK Rugged GNSS/INS Module

MTi-680G - The highest standard in GNSS/INS with an internal, integrated RTK to improve your positional data from meter-level to centimeter-level accuracy.

COMPONENT

GNSS/INSRTKRuggedIP68Inspection

Movella Xsens MTi-620R Rugged VRU

Movella (formerly Xsens) MTi-620R is a rugged industrial VRU: IP68 aluminum housing at 75 g, 0.2 deg RMS roll/pitch, 2000 deg/s gyro with 8 deg/h bias stability and 0.007 deg/s/sqrt(Hz) noise; onboard magnetometer and barometer, 4.5-24 V at <0.5 W, CAN/RS232, up to 2 kHz. Reliable roll/pitch for inspection robots, unmanned platforms and marine systems.

COMPONENT

IMUVRUIP68RuggedInspection

Movella Xsens MTi-610R Rugged Industrial IMU

Movella (formerly Xsens) MTi-610R is a rugged industrial IMU: IP68 aluminum housing at 75 g, 2000 deg/s gyro with 8 deg/h bias stability and 0.007 deg/s/sqrt(Hz) noise, 60 ug/sqrt(Hz) accelerometer noise; onboard magnetometer and barometer, 4.5-24 V input at <0.5 W, CAN/RS232, up to 2 kHz output. Reliable inertial measurement for inspection robots, unmanned platforms and off-road vehicles.

COMPONENT

IMUInertial measurementIP68RuggedInspection

Movella Xsens MTi-630R Rugged AHRS

Movella (formerly Xsens) MTi-630R is a rugged industrial AHRS: 2000 deg/s gyro with 8 deg/h bias stability, 0.007 deg/s/sqrt(Hz) noise, 0.2 deg RMS roll/pitch and 1 deg RMS heading; IP68, 75 g, <0.5 W, 4.5-24 V input, CAN/RS232, up to 2 kHz output. Reliable attitude and heading for inspection robots, unmanned platforms and marine systems.

COMPONENT

IMUAHRSInertial navigationIP68Inspection

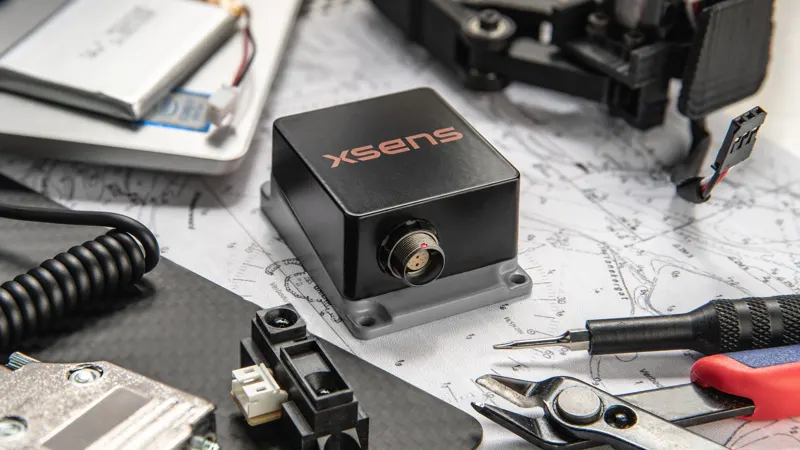

Movella Xsens MTi-300 (Sirius) Rugged AHRS

Movella (formerly Xsens) MTi-300 belongs to the rugged Sirius family: +/-300 deg/s gyro with 7 deg/h in-run bias stability, 400 Hz bandwidth, 0.003 deg/s/sqrt(Hz) noise density, +/-8 g accelerometer with 15 ug bias stability; IP68 and MIL-STD shock/vibration rated, -40 to +85 C, aluminum housing with ODU connector at 78.5 g. Reliable roll/pitch/heading for inspection robots, USVs and autonomous systems.

COMPONENT

IMUAHRSInertial navigationPoseInspection
