HiPNUC HI14 High-Precision Industrial IMU
Vendor: HiPNUC ( )
Product: HI14 IMU

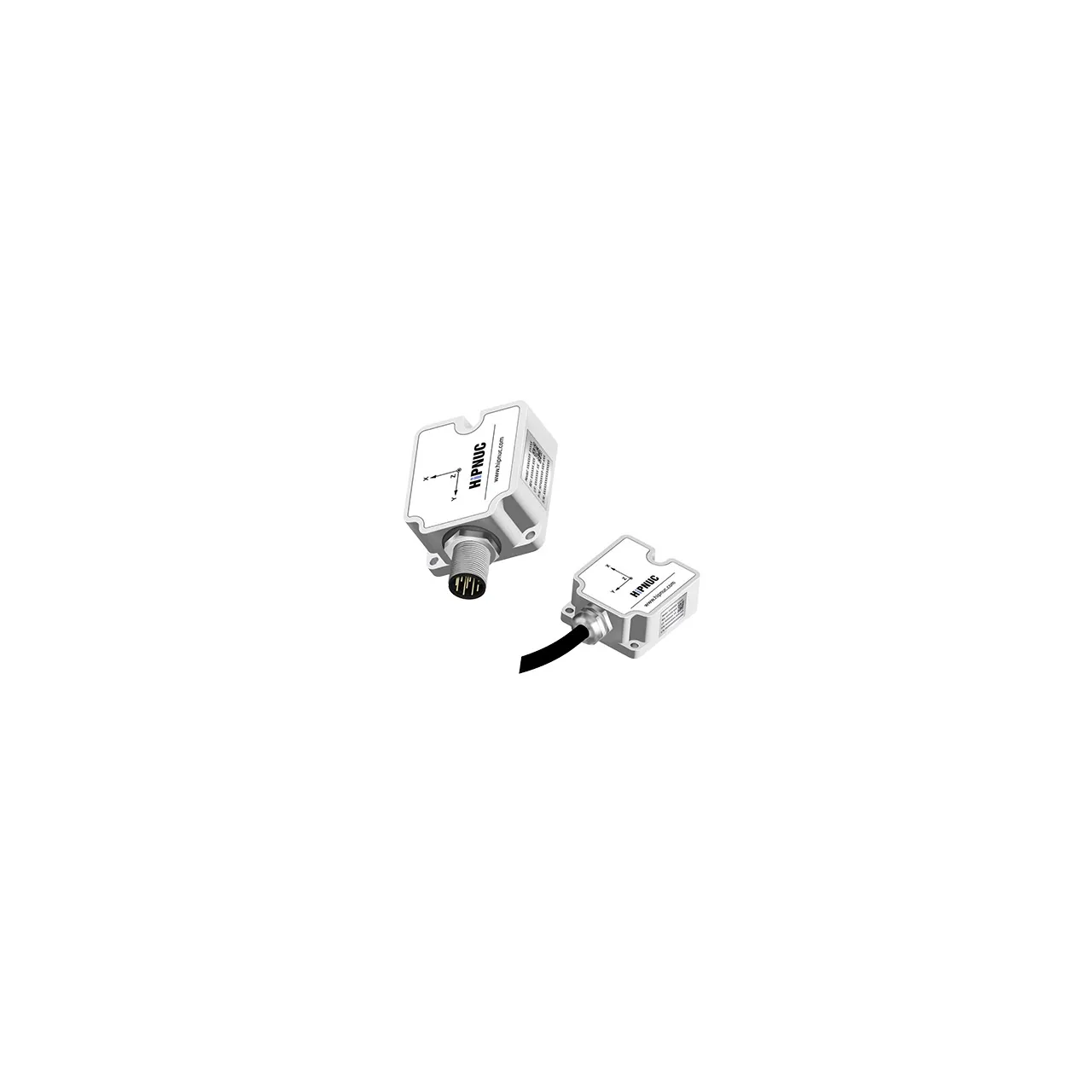

HiPNUC (Beijing) HI14 is a high-precision industrial IMU: gyro ±2000 °/s (±4000 °/s on S* high-range variants) with best S5-grade three-axis bias instability of 0.9/1.1/1.0 °/h; accelerometer ±24 g/±32 g with best bias instability of 0.0045~0.01 mg. IP68-rated housing (M12 version 59×40×20 mm, PG version 40×36×16.5 mm), wide 7~48 V supply, output at UART 1000 Hz / RS485 250 Hz / CAN 200 Hz, RoHS/CE certified — built for harsh environments such as outdoor robots, robot dogs, unmanned boats and industrial mobile platforms.
| Axes | 6 (3-axis accel + 3-axis gyro) |
| Dimensions | M12: 59 × 40 × 20 mm / PG: 40 × 36 × 16.5 mm |
| Output Rate | UART 1000 Hz / RS485 250 Hz / CAN 200 Hz |
| Certifications | RoHS / CE / IP68 |
| Supply Voltage | 7~48 V |
| Gyro Full Range | ±2000 °/s (±4000 °/s on S* variants) |
| Accel Full Range | ±24 g / ±32 g |
| Protection Rating | IP68 |
| Gyro Bias Instability | X 0.9 / Y 1.1 / Z 1.0 °/h (best S5 grade) |
| Accel Bias Instability | 0.0045~0.01 mg (best S5 grade) |
