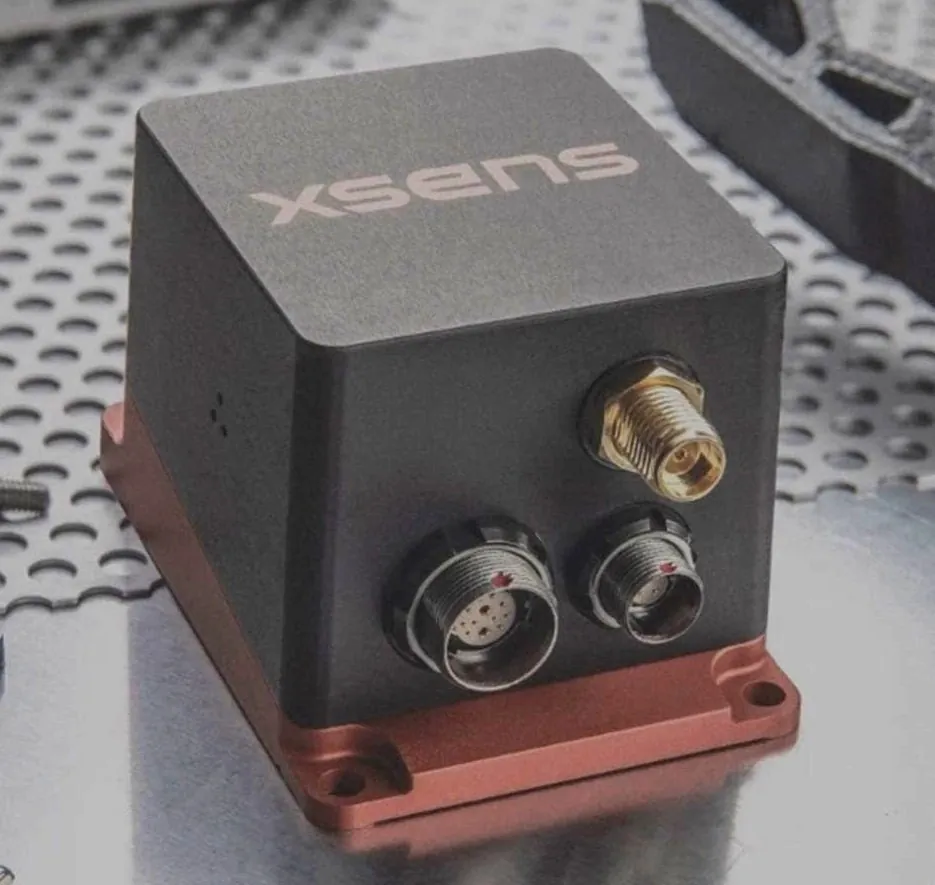

Movella (Xsens) MTi-680G RTK Rugged GNSS/INS Module
Vendor: Movella Technologies B.V. (Netherlands, formerly Xsens)
Product: MTi-680G RTK GNSS/INS
MTi-680G - The highest standard in GNSS/INS with an internal, integrated RTK to improve your positional data from meter-level to centimeter-level accuracy.
| Brand | u-blox |
| Model | ZED F9 |
| Weight | 98 g |
| Position | 1 cm + 1 ppm CEP |
| Velocity | 0.05 m/s RMS |
| Barometer | onboard |
| Protocols | Xbus, ASCII (NMEA) or CAN |
| Dimensions | 56.5 × 40.9 × 36.75 mm |
| Interfaces | CAN, RS232 |
| Roll, Pitch | 0.2 deg RMS |
| Yaw/heading | 0.5 deg RMS |
| Magnetometer | onboard |
| Input Voltage | 4.5 to 24 V |
| Noise Density | 0.007 °/s/√Hz |
| Rtcm Input Port | RS232 (38k4-921k6 bit/s) |
| Output Frequency | Up to 2 kHz, 400 Hz SDI |
| Standard Full Range | 2000 deg/s |
| Rtk Correction Input | RTCM 3.2/3.3 |
| In-run Bias Stability | 8 deg/h |
| Ip-rating (equivalent) | IP68 |
| Power Consumption (typ.) | <1 W |
