#RTK (7)

Movella (Xsens) MTi-680G RTK Rugged GNSS/INS Module

MTi-680G - The highest standard in GNSS/INS with an internal, integrated RTK to improve your positional data from meter-level to centimeter-level accuracy.

COMPONENT

GNSS/INSRTKRuggedIP68Inspection

Movella (Xsens) MTi-680 RTK GNSS/INS Module

The MTi-680 - Supports RTK accuracy. Access smooth high frequency (400Hz) centimeter-level accuracy in position even in GNSS-denied environments. See more.

COMPONENT

GNSS/INSInertial navigationRTKInspectionDrones

Movella Xsens MTi-670 Industrial GNSS/INS

Movella (formerly Xsens) MTi-670 is an industrial GNSS/INS: 0.2 deg RMS roll/pitch, 0.8 deg RMS heading, 1 m CEP position and 0.05 m/s RMS velocity; 2000 deg/s gyro with 8 deg/h bias stability, external RTK corrections; IP51, 8.9 g, 4.5-24 V at <0.5 W, UART/CAN/RS232, up to 2 kHz. Reliable position, velocity and attitude for inspection robots, UAVs and UGVs.

COMPONENT

GNSS/INSInertial navigationRTKInspectionDrones

Movella Xsens MTi-8 RTK GNSS/INS Module

Movella (formerly Xsens, Netherlands) MTi-8 is an RTK-enhanced GNSS/INS module: 1 cm + 1 ppm CEP RTK position, 1 deg RMS heading, 0.5 deg RMS roll/pitch; 2000 deg/s gyro range, 6 deg/h bias stability, 0.003 deg/s/sqrt(Hz) noise density in a 12.1x12.1x2.55 mm, 0.6 g package with up to 1 kHz output. Centimeter-grade position and attitude for drones, inspection robots and autonomous systems.

COMPONENT

GNSS/INSRTKIMUInertial navigationLocalization

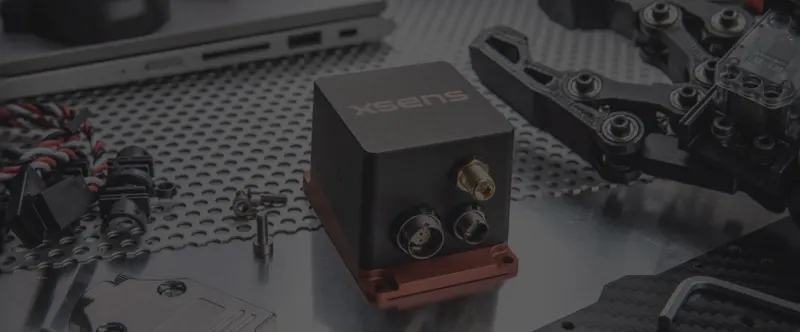

Movella Xsens MTi-680G RTK GNSS/INS Module

Movella (formerly Xsens, Netherlands) MTi-680G adds an internal RTK engine to the MTi-670G platform, improving position from meter- to centimeter-level (1 cm + 1 ppm CEP) with 0.5 deg RMS heading and 0.2 deg RMS roll/pitch; gyro range +/-2000 deg/s, 8 deg/h in-run bias stability, 0.007 deg/s/sqrt(Hz) noise density; onboard magnetometer and barometer; RTCM 3.2/3.3 corrections via RS232; IP68-equivalent, 56.5x40.9x36.75 mm at 98 g, 4.5-24 V at <1 W, CAN/RS232, up to 2 kHz. Shares the 670G rugged enclosure; ideal for high-precision outdoor localization and navigation on inspection robots and unmanned vehicles.

COMPONENT

GNSS/INSRTKInertial navigationCentimeter-Level LocalizationSLAM

Inspection

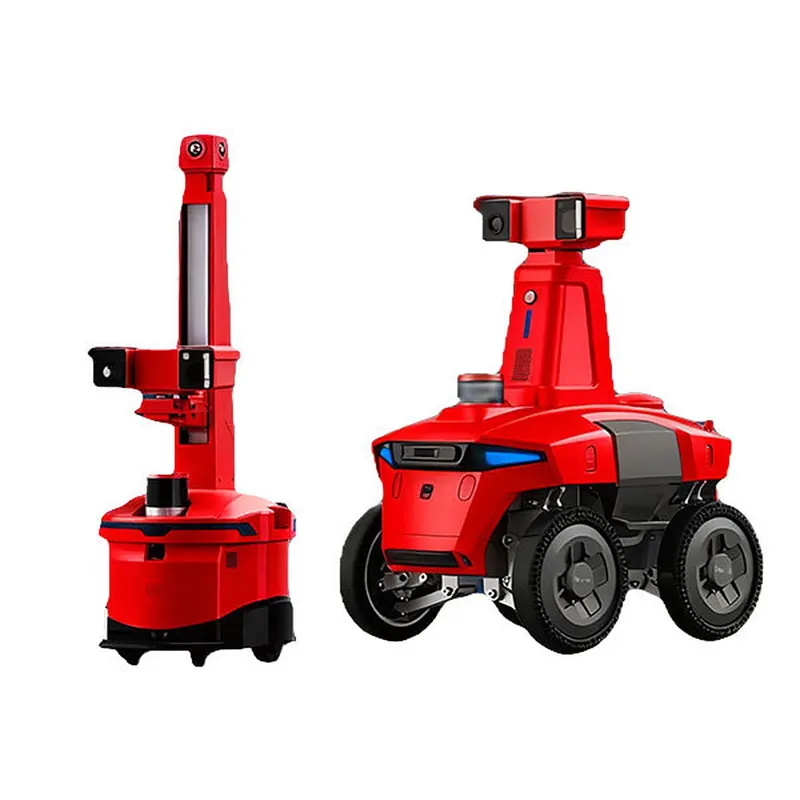

BangQi Inspection Robot (Outdoor/Indoor Series)

InspectionWheeled

1:02

DJI and XGRIDS air-ground 3DGS map fusion

@DuckbillStudio · 106 views · 2026-08-12

3D Gaussian SplattingDJIMatrice 4E
