HIKROBOT Wheeled Humanoid and Bin AMR Collaborate in Warehouse

@CyberRobooo · 173 views · 2026-08-23

HIKROBOTwarehouseAMR

Inspection

Hikrobot Q4-300 Latent Lifting AMR (MR-Q4-300LE-A)

Hikrobot WaySuite

InspectionAMR

Inspection

Piezo Sonic Mighty D4S Rough-Terrain Autonomous Inspection Robot

Piezo Sonic

InspectionUneven Ground

WD42 - Compact wheel drives with motor

Enhance the precision & agility of service robots & AGVs using Nanotec's compact WD42 wheel drives. Discover our customized intralogistics solutions now!

COMPONENT

Wheel DriveAGVAMRHub Motor

RoboSense E1R Fully Solid-State Digital LiDAR

RoboSense (Shenzhen, HKEX 2498.HK, top global lidar shipper) E1R is a new-generation fully solid-state digital LiDAR on the automotive-grade E platform: 120°x90° ultra-wide FOV, 75 m range (30 m @10% reflectivity), 260,000 pts/s with 144-beam structured point clouds; self-developed 250k+ pixel digital SPAD-SoC and 2D addressable VCSEL chips, fully chip-based with no moving parts; body only 7x35x75 mm with a 1/4-inch threaded mount; -40 to +85 °C operating range, 50 G shock, 60+ automotive reliability tests, IP67/IP6K9K, mass-produced at $999. Ideal for close-range blind-spot sensing, obstacle avoidance and high-precision 3D SLAM on inspection robots, AGV/AMR and service robots.

COMPONENT

LiDARAll-solid-stateSPAD-SoCVCSELAGV

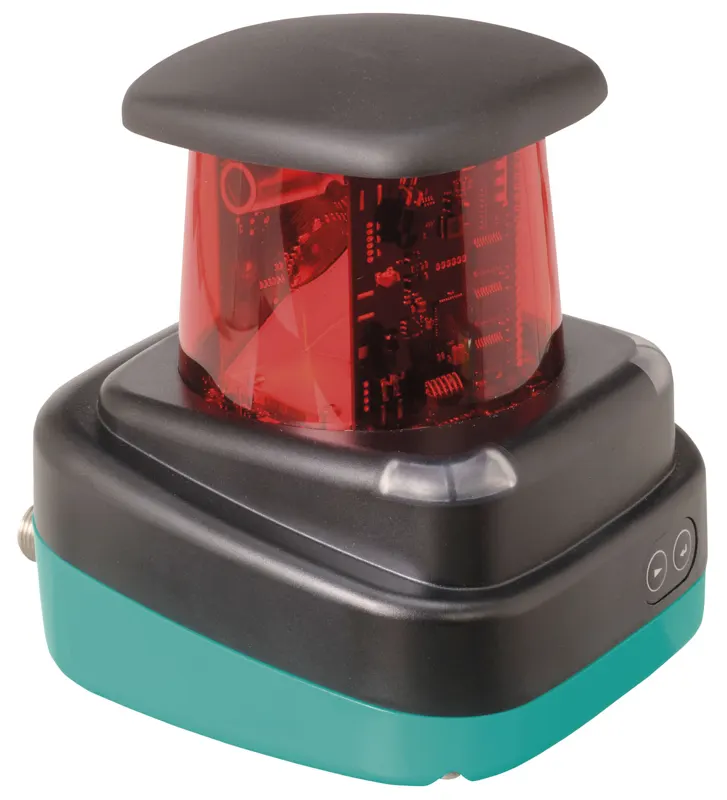

Pepperl+Fuchs R2000 OMD30M-HD 360° 2D LiDAR Scanner Sensor

Pepperl+Fuchs (Mannheim, Germany, industrial sensor leader) R2000 is its flagship 2D laser scanner; the OMD30M-R2000-B23-V1V1D-HD-1L is the 30 m high-accuracy variant: 905 nm pulsed laser (Class 1 eye-safe) based on Pulse Ranging Technology (PRT), 360° unobstructed scanning at 10-50 Hz with up to 84,000 measurements/s and 0.042° angular resolution; measuring range 0.1-10 m (black 10%) / 0.1-30 m (white 90% or reflector), min. reflectivity 2.5%, 1 mm distance resolution, ±25 mm absolute accuracy, <12 mm repeatability; 80,000 lux ambient light immunity, IP65, -10 to +50 °C; Fast Ethernet (HTTP/TCP/IP, UDP/IP) plus 2 configurable switching outputs, M12 connectors, 10-30 VDC, <10 W, approx. 0.8 kg, MTTFd 75 years. Widely used for AGV/AMR navigation, inspection-robot perception, intralogistics and access control.

COMPONENT

2D LiDARLiDAR360-Degree ScanningPRTAGV

Ouster OS1 Rev8 Mid-Range High-Resolution Imaging Lidar

Ouster (San Francisco, pioneer of digital lidar, merged with Velodyne in 2023) is a leading digital LiDAR maker. The OS1 Rev8 is its flagship mid-range imaging lidar: 865 nm laser, 360°x44° FOV, 32/64/128 channels, 512-4096 horizontal columns (0.088° angular resolution), 5-40 Hz configurable rotation; 170 m range at 80% Lambertian reflectivity (>90% detection, 100 klx sunlight), 90 m at 10%, 500 m max representable, 0 m minimum; native RGB-D color point cloud with range/signal/reflectivity/NIR/azimuth/timestamp per point and up to 2 returns; gigabit Ethernet UDP with PTP/gPTP/PPS/NMEA time sync (<1 ms error); 12/24 VDC supply (9-58 V), 10-20 W power; IP68/IP69K, -40 to +85 °C, 100 g shock and 10 Grms vibration, designed for functional safety ASIL-B/SIL-2/PLd, ~500 g. Ideal for inspection robots, AMR navigation, smart infrastructure and security.

COMPONENT

LiDAROusterRGB-DDigital LiDAR3D Imaging

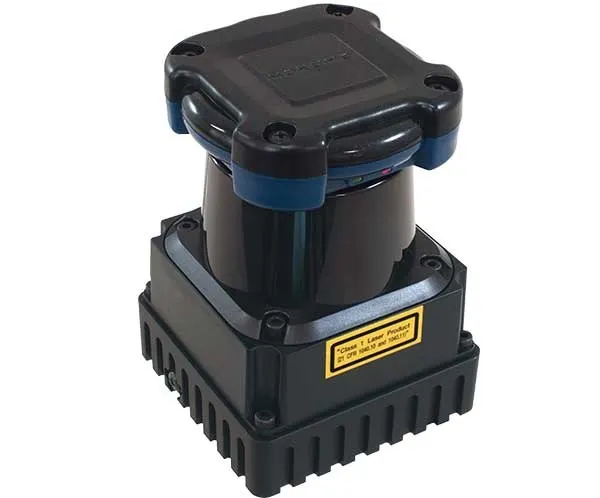

Hokuyo UTM-30LX-EW 2D Scanning Laser Range Finder

Hokuyo Automatic (Osaka, Japan, est. 1971) is a leading maker of photoelectric sensors and 2D LiDAR. The UTM-30LX-EW is its flagship long-range 2D scanning laser range finder: 905 nm Class 1 laser diode, 270° scan field, 0.25° angular resolution (360°/1440 steps), 25 ms per scan (40 Hz); guaranteed range 0.1-30 m (60 m max), accuracy ±30 mm (0.1-10 m) / ±50 mm (10-30 m), 1 mm measurement resolution; Ethernet 100BASE-TX with SCIP2.2 protocol and wireless configuration; 12 VDC ±10% supply at <8 W; IP67 optics, -10 to +50 °C operation; 62×62×87.5 mm and only 210 g. Widely used for AGV/AMR navigation, obstacle avoidance, mapping and area monitoring.

COMPONENT

LiDAR2D ScanningHokuyoAGVAMR
