RoboSense E1R Fully Solid-State Digital LiDAR

Vendor: RoboSense Technology Co., Ltd. (China, 2498.HK)

Product: E1R

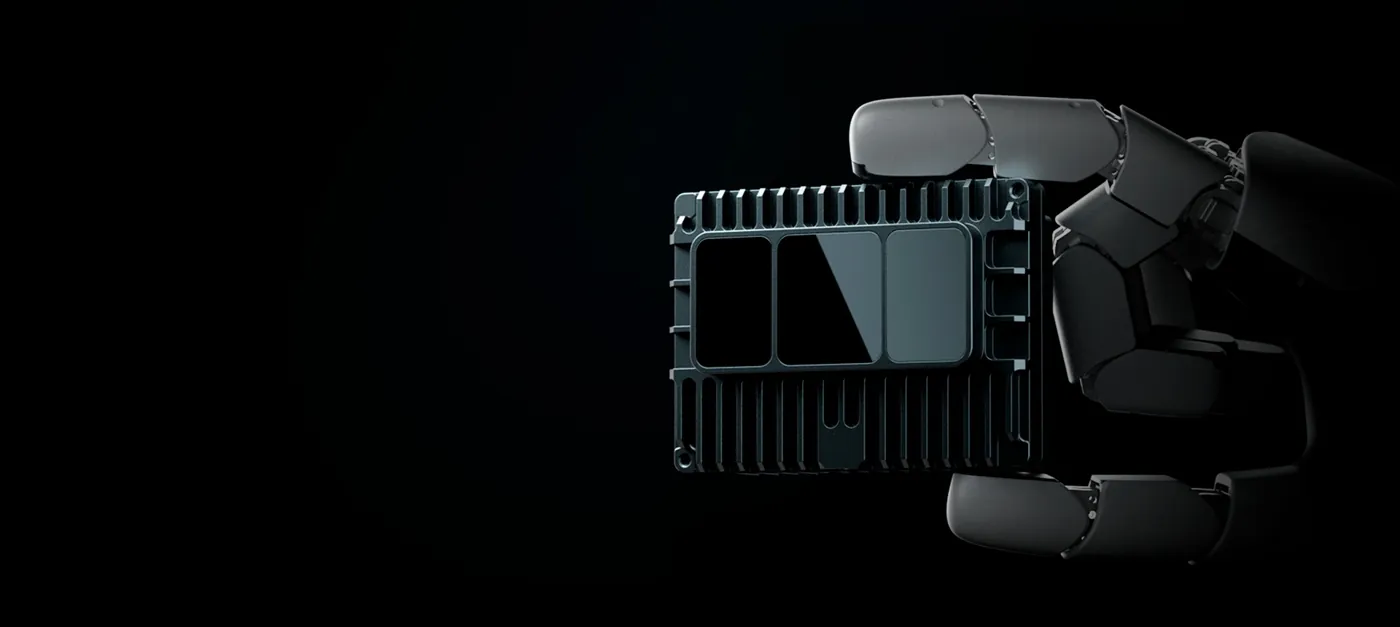

RoboSense E1R Fully Solid-State Digital LiDAR

RoboSense (Shenzhen, HKEX 2498.HK, top global lidar shipper) E1R is a new-generation fully solid-state digital LiDAR on the automotive-grade E platform: 120°x90° ultra-wide FOV, 75 m range (30 m @10% reflectivity), 260,000 pts/s with 144-beam structured point clouds; self-developed 250k+ pixel digital SPAD-SoC and 2D addressable VCSEL chips, fully chip-based with no moving parts; body only 7x35x75 mm with a 1/4-inch threaded mount; -40 to +85 °C operating range, 50 G shock, 60+ automotive reliability tests, IP67/IP6K9K, mass-produced at $999. Ideal for close-range blind-spot sensing, obstacle avoidance and high-precision 3D SLAM on inspection robots, AGV/AMR and service robots.

Fov120° × 90°
Beams144 (structured point cloud)
Mount1/4-inch threaded mount
Price$999 (mass production)
Dimensions7 × 35 × 75 mm
Point Rate260,000 pts/s
ProtectionIP67 / IP6K9K
Spad Pixels250,000+ (digital SPAD-SoC)
Architecturefully solid-state, 2D VCSEL electronic scanning, no moving parts
Detection Range75 m max; 30 m @ 10% reflectivity
Shock Vibrationup to 50 G
Operating Temperature-40 to +85 °C
LiDARAll-solid-stateSPAD-SoCVCSELAGVAMRInspectionSLAMObstacle Avoidance
https://www.robosense.ai/en/rslidar/E1R
