#Tolomatic (8)

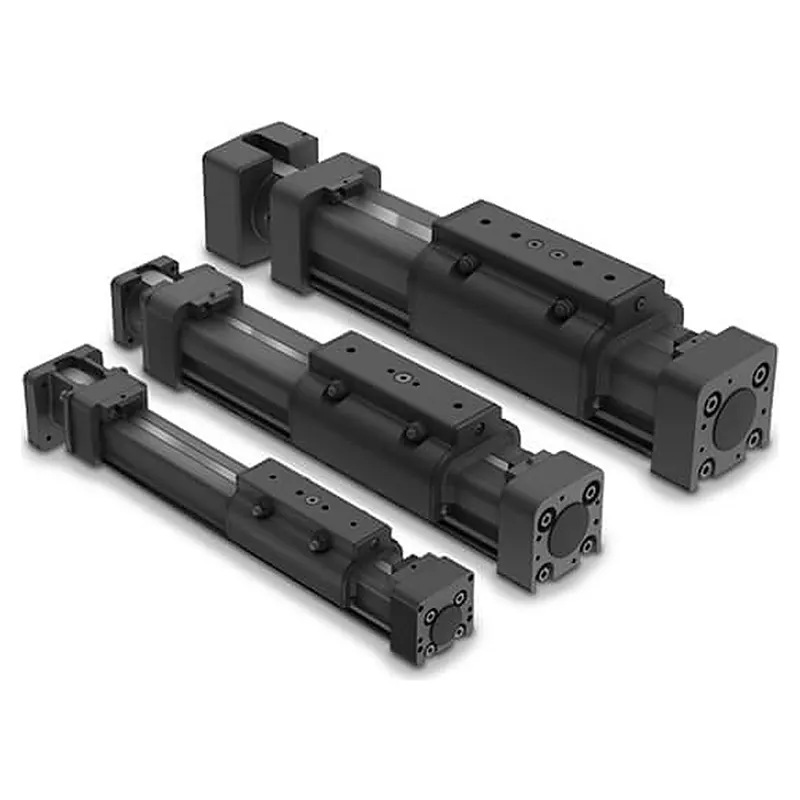

Tolomatic BCS Rodless Screw Electric Actuators (3.4 m stroke)

Tolomatic (USA) BCS is a rodless screw electric actuator in three body sizes BCS10/15/20: max load 272 kg (600 lbf), strokes to 3.4 m (120 in) and speeds to 1.5 m/s (60 in/s) with Acme or ball screw drive options and an auxiliary carrier for higher load and moment capacity; the sealed design does not collect particulate like exposed ball bearing systems, fitting transfer, stacking and pick-and-place over long travel.

COMPONENT

Rodless Electric CylinderRodless ActuatorTolomaticLead Screw DriveLong Stroke

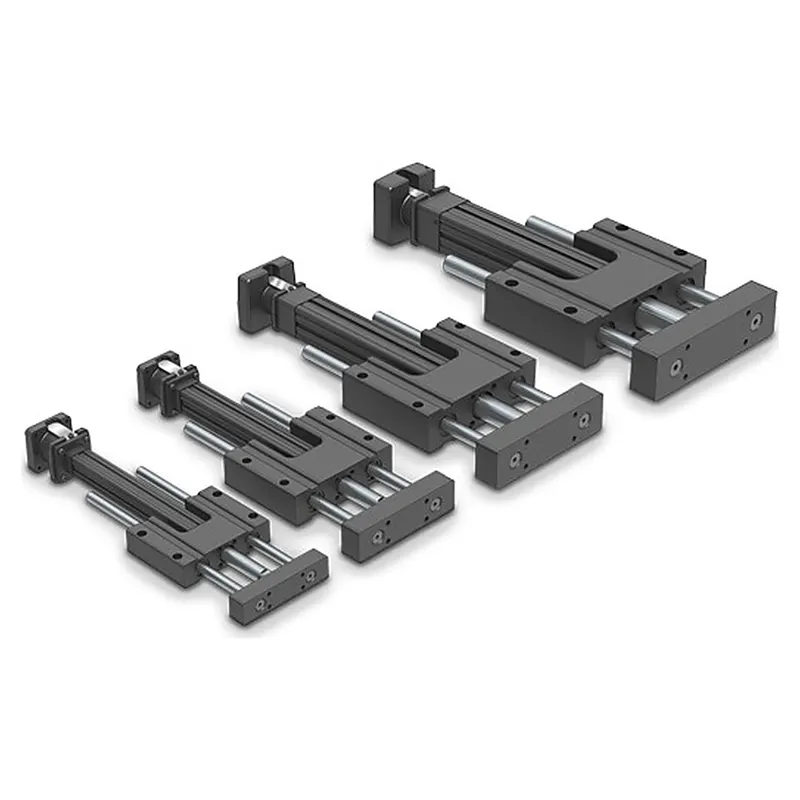

Tolomatic GSA Guided-Rod Electric Linear Actuators (up to 18.5 kN)

Tolomatic (USA) GSA is a high-thrust guided-rod electric linear actuator in four frames GSA12/16/24/32: max force 580-18,500 N (130-4,160 lbf), max load 182-544 kg (400-1,200 lbs), speed to 3,124 mm/s (123 in/s) and strokes 457-914 mm (18-36 in); the guided-rod anti-rotation design is stiff against side loads for pressing, clamping, lifting and pushing in automation and robot test rigs.

COMPONENT

Guiding Rod Electric CylinderGuided Rod ActuatorTolomaticLinear actuatorsHigh Thrust

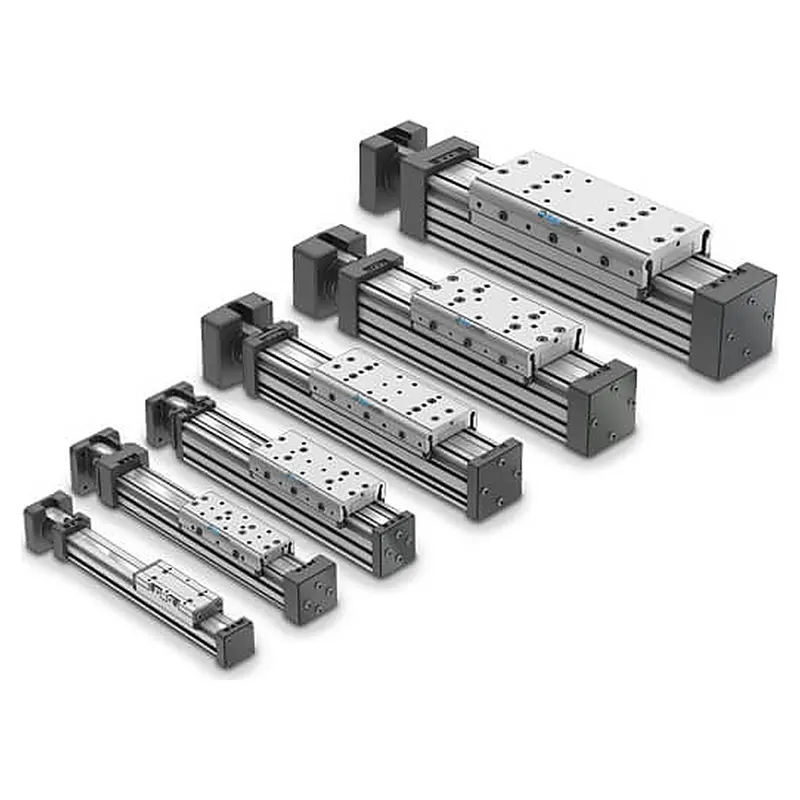

Tolomatic MXE-S Screw-Driven Electric Linear Actuators (up to 19.1 kN)

Tolomatic (USA) MXE-S is Tolomatic's most advanced screw-driven electric linear actuator series in six frames MXE16S-63S: max force 200-19,127 N (45-4,300 lbf), max load 16-236 kg (up to 472 kg with auxiliary carrier), speed to 1,524 mm/s and strokes to 3,404 mm (134 in); Solid Bearing (S) or Profiled Rail (P) carriers with Acme or ball screw drives for transfer, pick-and-place, clamping and mid/long-stroke linear axes.

COMPONENT

Lead-screw actuatorsScrew ActuatorTolomaticLinear actuatorsElectric cylinders

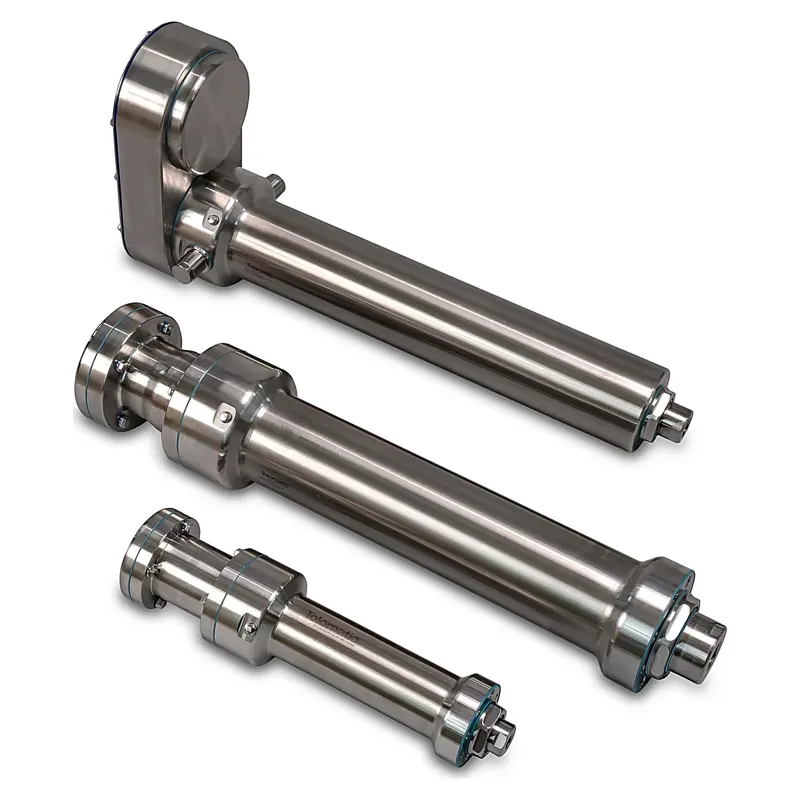

Tolomatic RSH Hygienic Stainless Steel Electric Rod Actuators (up to 35.3 kN)

Tolomatic (USA) RSH hygienic rod-style electric actuators use 316 stainless steel bodies with IP69K protection for high-pressure, high-temperature washdown; sizes RSH22/25/30 deliver 7.6-35.3 kN (1,700-7,943 lbf) max force, strokes to 1,219 mm (48 in) and speeds to 498 mm/s (19.6 in/s) for food, beverage, pharma and any wet or clean linear-joint application.

COMPONENT

Sanitary Electric CylinderStainless Steel ActuatorIP69KTolomaticFood Grade

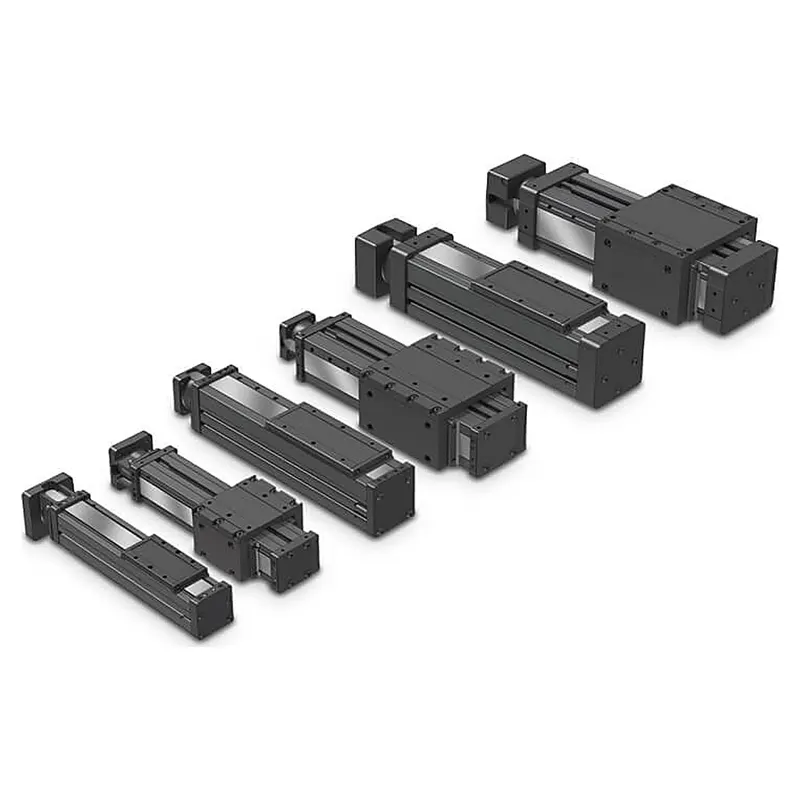

Tolomatic B3S Ball Screw Rodless Linear Actuators (up to 12.0 kN)

Tolomatic (USA) B3S is a ball-screw-driven rodless electric actuator family in three sizes B3S10/15/20: max force 1.8-12.0 kN (410-2,700 lbf), max load 268-911 kg, speed to 1,524 mm/s (60 in/s) and strokes to 3,454 mm (136 in); the rodless design is compact with long travel and high stiffness for transfer, pick-and-place, clamping and long-stroke linear axes in automation and humanoid lines.

COMPONENT

Rodless Electric CylinderRodless ActuatorBall ScrewTolomaticLinear actuators

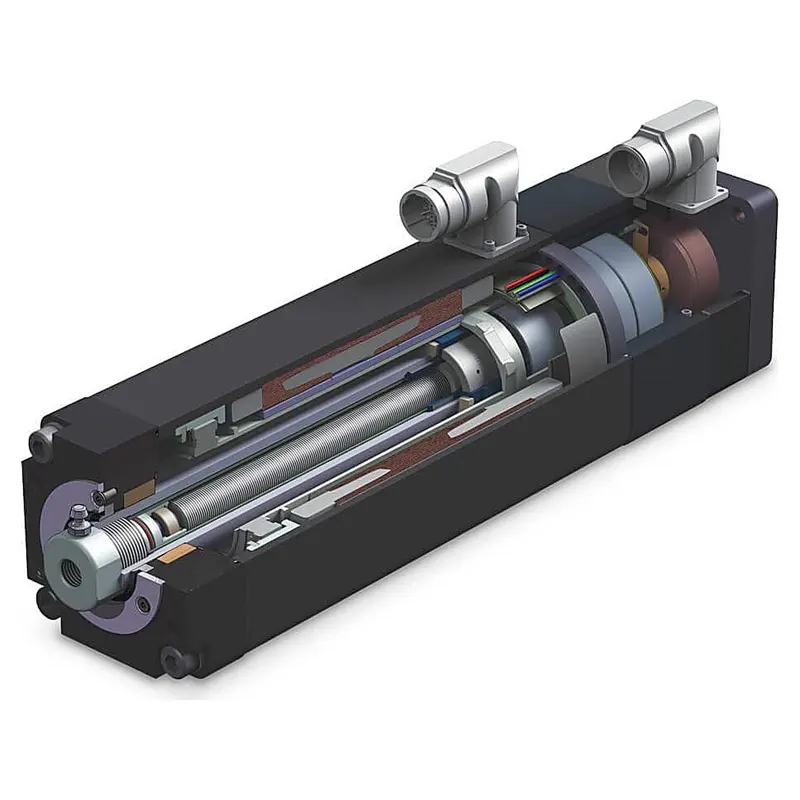

Tolomatic IMA Integrated Servo Linear Actuators (1.5-35.8 kN)

Tolomatic (USA) IMA is an integrated servo linear actuator that combines a brushless servo motor, ball or roller screw and servo drive in one housing - no coupling or external drive, minimal cabling and easy multi-axis synchronization; four frame sizes IMA22/33/44/55 deliver 1.5-35.8 kN (325-8044 lbf) peak force with strokes to 457 mm (18 in), speeds up to 1334 mm/s (52.5 in/s) and multiple lead choices at 0.0021 in/ft lead accuracy for factory automation, packaging, molding and humanoid linear joints.

COMPONENT

Integrated Servo Electric CylinderIntegrated Servo ActuatorTolomaticBall Screw Electric CylinderLinear actuators

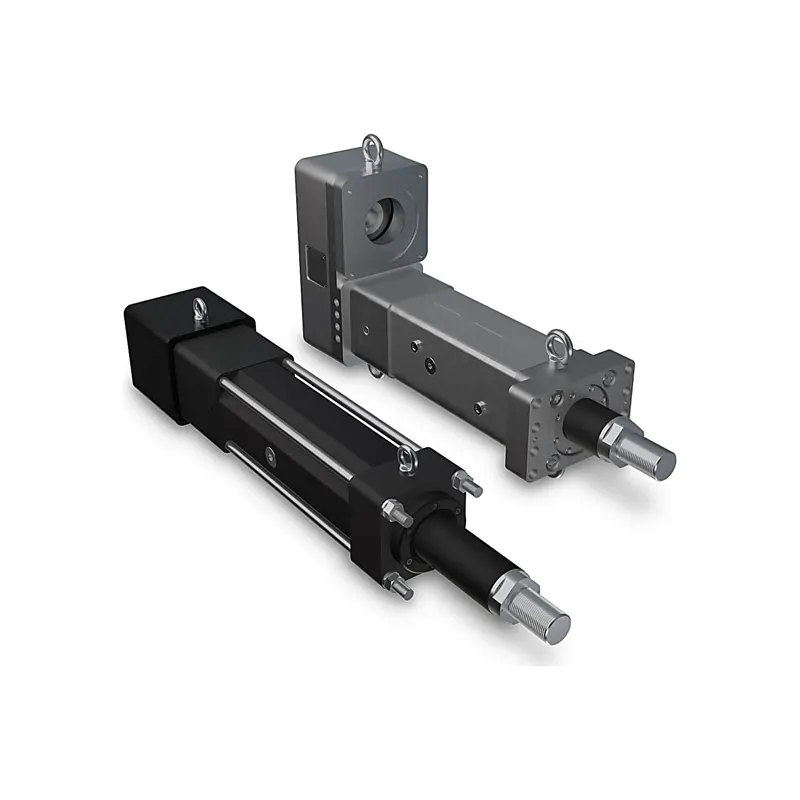

Tolomatic RSX Extreme Force High-Force Electric Rod Actuators (up to 445 kN)

Tolomatic RSX Extreme Force series are high-force electric rod actuators in six sizes RSX10-RSX50 delivering up to 100,000 lbf (445 kN) thrust, 1,500 mm stroke and 760 mm/s speed; roller-screw (RN) and ball-screw (BN) options with dynamic load ratings to 187,940 lbf, lead accuracy 0.0004 in/ft and backlash 0.0012 in - built for pressing, stamping, servo-press and hydraulic-to-electric conversion applications.

COMPONENT

High-Thrust Electric CylinderElectric cylindersTolomaticRSXTumbler Screw

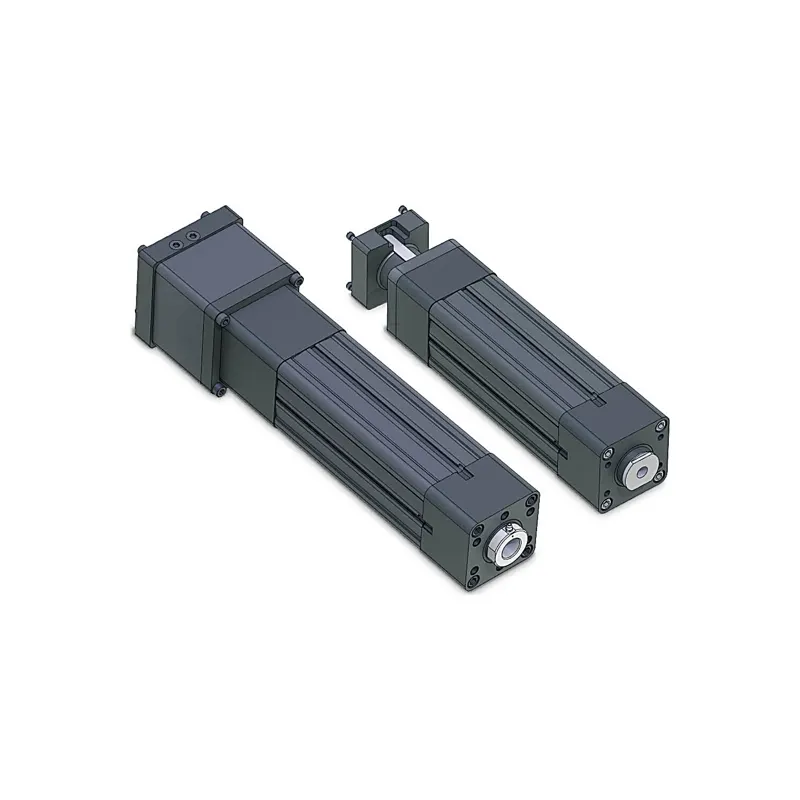

Tolomatic RSA Electric Rod-Style Linear Actuators (up to 58 kN)

Tolomatic (USA) RSA series are servo-driven electric rod-style actuators in six frame sizes RSA12-RSA64 with strokes to 1,524 mm (60 in), forces to 13,039 lbf (58 kN) and speeds to 3,120 mm/s; ball- and roller-screw lead options, integrated servo motor/drive sizing, IP65 rating and broad mounting accessories - a precision, energy-efficient replacement for hydraulic and pneumatic cylinders in automotive, tire, packaging and material-handling lines.

COMPONENT

Electric cylindersElectric Rod ActuatorTolomaticRSAServo Electric Cylinder
