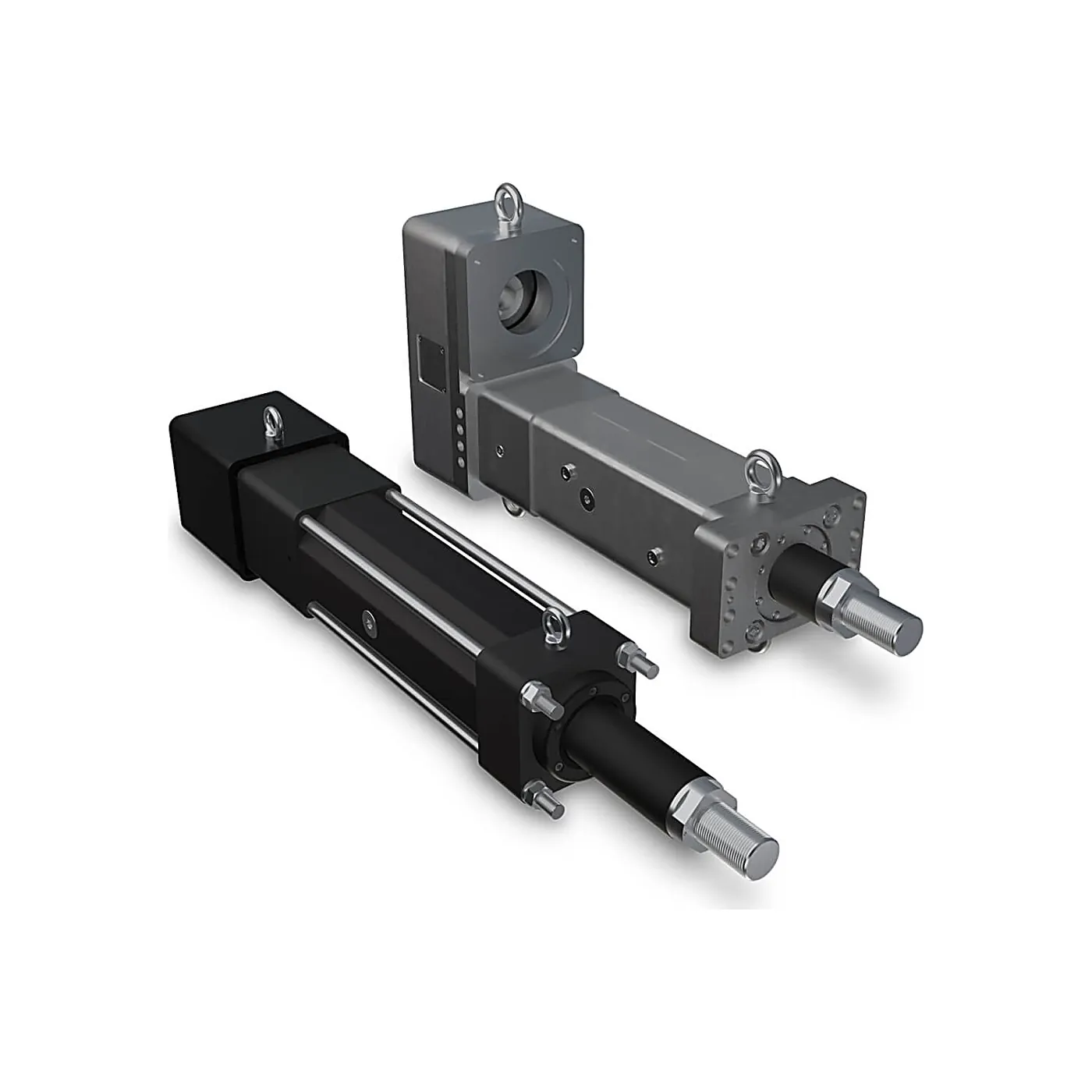

Tolomatic RSX Extreme Force High-Force Electric Rod Actuators (up to 445 kN)
Vendor: Tolomatic (USA)
Product: RSX Extreme Force
Tolomatic RSX Extreme Force series are high-force electric rod actuators in six sizes RSX10-RSX50 delivering up to 100,000 lbf (445 kN) thrust, 1,500 mm stroke and 760 mm/s speed; roller-screw (RN) and ball-screw (BN) options with dynamic load ratings to 187,940 lbf, lead accuracy 0.0004 in/ft and backlash 0.0012 in - built for pressing, stamping, servo-press and hydraulic-to-electric conversion applications.
| Sizes | RSX10 / RSX15 / RSX20 / RSX25 / RSX33P / RSX50 |
| Backlash | 0.0012 in |
| Max Force | 20,000-100,000 lbf (89-445 kN) |
| Max Speed | up to 30 in/s (760 mm/s) |
| Max Stroke | up to 59 in (1,500 mm) |
| Lead Accuracy | 0.0004 in/ft (RN roller screw) |
| Dynamic Load Rating | up to 187,940 lbf |
