Tolomatic IMA Integrated Servo Linear Actuators (1.5-35.8 kN)
Vendor: Tolomatic (USA)
Product: IMA

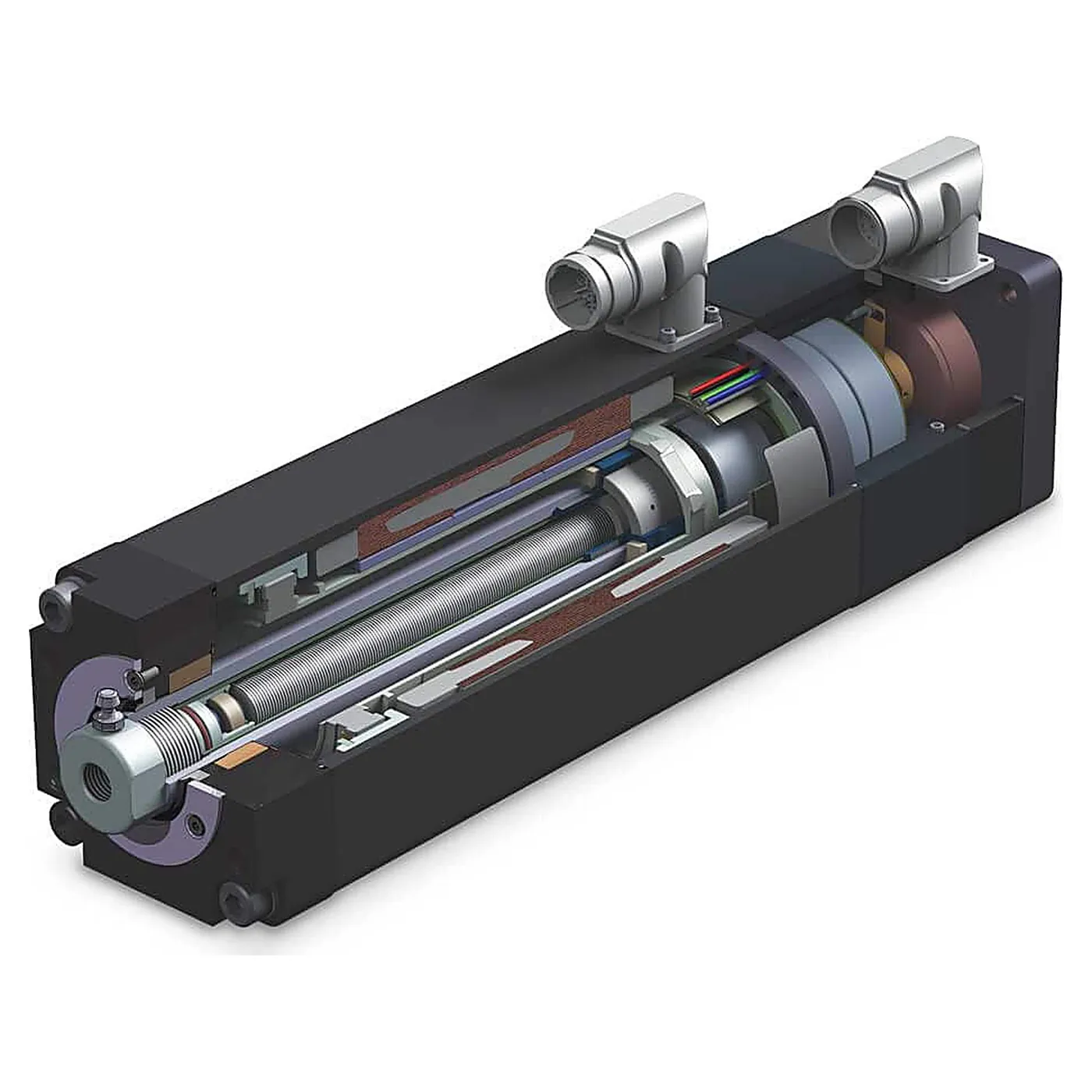

Tolomatic (USA) IMA is an integrated servo linear actuator that combines a brushless servo motor, ball or roller screw and servo drive in one housing - no coupling or external drive, minimal cabling and easy multi-axis synchronization; four frame sizes IMA22/33/44/55 deliver 1.5-35.8 kN (325-8044 lbf) peak force with strokes to 457 mm (18 in), speeds up to 1334 mm/s (52.5 in/s) and multiple lead choices at 0.0021 in/ft lead accuracy for factory automation, packaging, molding and humanoid linear joints.
| Max Force | 1.5-35.8 kN (325-8044 lbf) |
| Max Speed | up to 1334 mm/s (52.5 in/s) |
| Max Stroke | up to 457 mm (18 in) |
| Frame Sizes | IMA22 / IMA33 / IMA44 / IMA55 |
| Integration | servo motor + screw + drive in one unit |
| Screw Types | ball screw (BN) & roller nut (RN) options |
| Lead Accuracy | 0.0021-0.004 in/ft |
