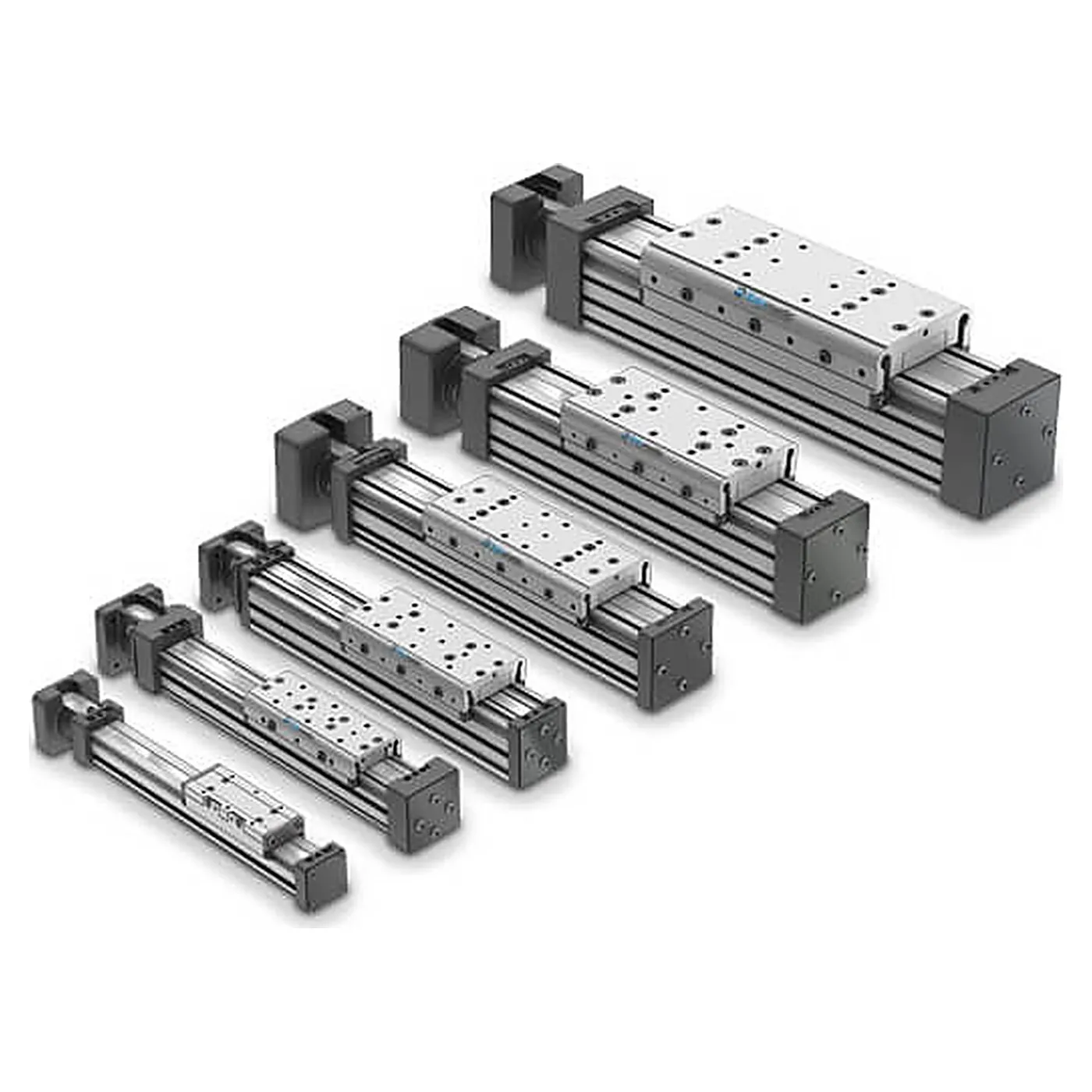

Tolomatic MXE-S Screw-Driven Electric Linear Actuators (up to 19.1 kN)
Vendor: Tolomatic (USA)
Product: MXE-S
Tolomatic (USA) MXE-S is Tolomatic's most advanced screw-driven electric linear actuator series in six frames MXE16S-63S: max force 200-19,127 N (45-4,300 lbf), max load 16-236 kg (up to 472 kg with auxiliary carrier), speed to 1,524 mm/s and strokes to 3,404 mm (134 in); Solid Bearing (S) or Profiled Rail (P) carriers with Acme or ball screw drives for transfer, pick-and-place, clamping and mid/long-stroke linear axes.
| Drive | Acme / ball screw, Solid Bearing (S) or Profiled Rail (P) carrier |
| Max Load | 16-236 kg (up to 472 kg with auxiliary carrier) |
| Max Force | 200-19,127 N (45-4,300 lbf) |
| Max Speed | 1,067-1,524 mm/s (42-60 in/s) |
| Max Stroke | 787-3,404 mm (31-134 in) |
| Frame Sizes | MXE16S / MXE25S / MXE32S / MXE40S / MXE50S / MXE63S |
