MEMSLink XDA205 Industrial-Grade 2-Axis MEMS Accelerometer

The XDA205 is MEMSLink's industrial X/Y two-axis MEMS accelerometer with configurable ±2g/±3g ranges, 1000 Hz 3dB bandwidth and 5 ug Allan bias stability, 20-bit two's-complement output over SPI at only 0.4 mA typical current; 3.0-3.6 V supply, -40°C to +85°C in a 6x6x2.25 mm LCC package with 5,000 g powered shock, aimed at tilt and deformation monitoring demanding small range, low noise and high stability.

COMPONENT

MEMS accelerometersIMULow NoiseMEMSLinkPitch Angle Measurement

MEMSLink XDR1101 Low-Noise Industrial-Grade Z-Axis MEMS Gyroscope

The XDR1101 is MEMSLink's low-noise industrial Z-axis MEMS gyroscope with a ±100°/s range and 12.5 Hz 3dB bandwidth, delivering 0.2°/hr Allan bias stability and only 0.03°/√hr ARW; 24-bit two's-complement output over SPI with integrated temperature sensor at 40 mA typical current; 3.0-3.6 V supply, -40°C to +85°C in a 5.8x7.8x3.2 mm LCC ceramic package with 3,000 g powered shock, suited to antenna azimuth and attitude measurement demanding tight noise and long-term stability.

COMPONENT

MEMS gyroscopesIMULow NoiseMEMSLinkAntenna Azimuth Measurement

MEMSLink XDA315 Industrial-Grade 3-Axis MEMS Accelerometer

The XDA315 is MEMSLink's industrial-grade 3-axis (X/Y/Z) MEMS accelerometer with user-configurable ±2g/±8g ranges, 1000 Hz 3dB bandwidth and 10 ug Allan bias stability, 20-bit two's-complement output over SPI at only 0.6 mA typical current; 3.0-3.6 V supply, -40°C to +85°C operation in a 6x6x2.25 mm LCC package with 5,000 g powered shock survival for tilt measurement, deformation and vibration monitoring and aided navigation.

COMPONENT

MEMS accelerometersIMUVibration MonitoringMEMSLinkPitch Angle Measurement

MEMSLink XDR1105 Industrial-Grade Z-Axis MEMS Gyroscope

The XDR1105 is MEMSLink's (SensorTech, STAR Market 688582) industrial-grade Z-axis MEMS gyroscope with a ±500°/s range, 100 Hz configurable 3dB bandwidth, 16,000 LSB/°/s sensitivity and 24-bit output; 0.4°/hr Allan bias stability and 0.15°/√hr ARW at 40 mA typical current, SPI digital output with a 16-bit temperature sensor; 3.0-3.6 V supply, -40°C to +85°C operation in a 5.8x7.8x3.2 mm LCC ceramic package surviving 3,000 g powered shock, aimed at aided navigation, AHRS, platform stabilization and industrial IMUs.

COMPONENT

MEMS gyroscopesIMUInertial navigationMEMSLinkPosture Measurement

MEMSLink XDA1201V High-Performance X-Axis MEMS Accelerometer

MEMSLink XDA1201V high-performance X-axis MEMS accelerometer: ±10 g full scale, 100 Hz bandwidth, 20 ug bias stability, 300 ppm scale-factor nonlinearity, 24-bit SPI digital output with integrated temperature sensor in a 7.8x5.8x3 mm LCC package, -40 to +125°C operation and 10,000 g powered shock for IMU, AHRS and platform stabilization.

COMPONENT

SensorsMEMS accelerometersMEMSLinkXDA1201VIMU

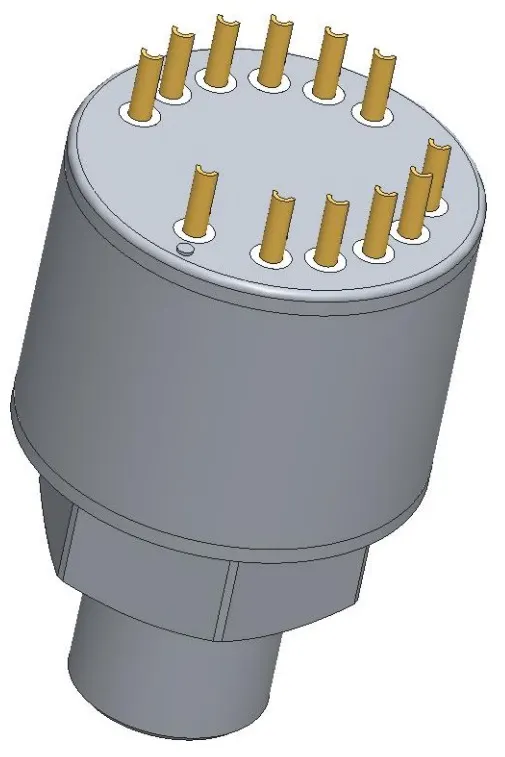

MEMSLink XDP8100 Resonant MEMS Absolute Pressure Sensor

MEMSLink XDP8100 resonant MEMS absolute pressure sensor: 0-350 kPa range, ±0.02%FS total accuracy (±0.01%FS enhanced grade), ±0.01%FS/yr long-term stability, <2 Pa/g acceleration sensitivity, SPI digital output without re-calibration in a φ25x27.5 mm housing with M12 pressure port for meteorology, pressure instruments and air-data computers.

COMPONENT

SensorsMEMS Pressure SensorMEMSLinkXDP8100Resonant

MEMSLink XDR330 High-Performance Z-Axis MEMS Gyroscope

High-performance Z-axis MEMS rate gyro from MEMSLink: ±100°/s range, <0.1°/hr bias instability (Allan), 200 ppm scale-factor nonlinearity, 12 Hz bandwidth, SPI digital output in an 11x11x1.5 mm LCC-48 package, -40 to +125°C operation and 20,000 g shock survival for inertial navigation, attitude measurement and platform stabilization.

COMPONENT

SensorsMEMS gyroscopesMEMSLinkXDR330Inertial navigation
