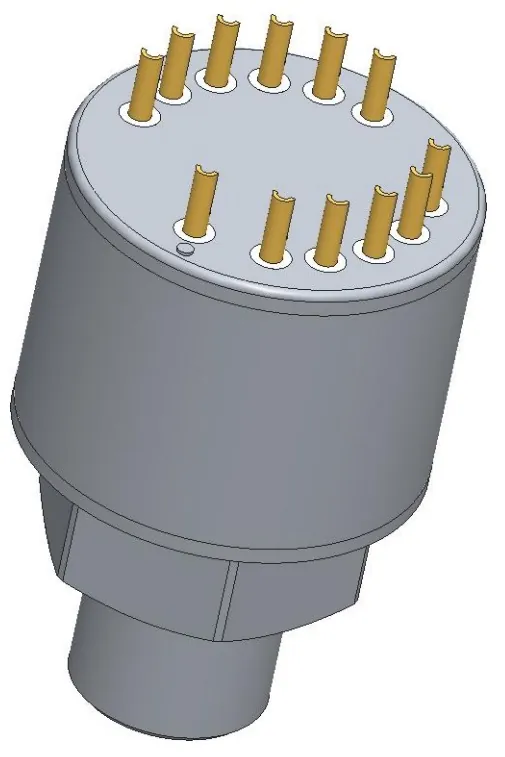

MEMSLink XDP8100 Resonant MEMS Absolute Pressure Sensor
Vendor: MEMSLink
Product: XDP8100
MEMSLink XDP8100 resonant MEMS absolute pressure sensor: 0-350 kPa range, ±0.02%FS total accuracy (±0.01%FS enhanced grade), ±0.01%FS/yr long-term stability, <2 Pa/g acceleration sensitivity, SPI digital output without re-calibration in a φ25x27.5 mm housing with M12 pressure port for meteorology, pressure instruments and air-data computers.
| Interface | SPI 5 V |
| Dimensions | φ25 × 27.5 mm |
| Overpressure | 2 × FS |
| Pressure Port | M12 |
| Operating Temp | -45°C ~ +85°C |
| Pressure Range | 0–350 kPa |
| Total Accuracy | ±0.02%FS / ±0.01%FS |
| Acceleration Effect | <2 Pa/g |
| Long Term Stability | ±0.01%FS / |
