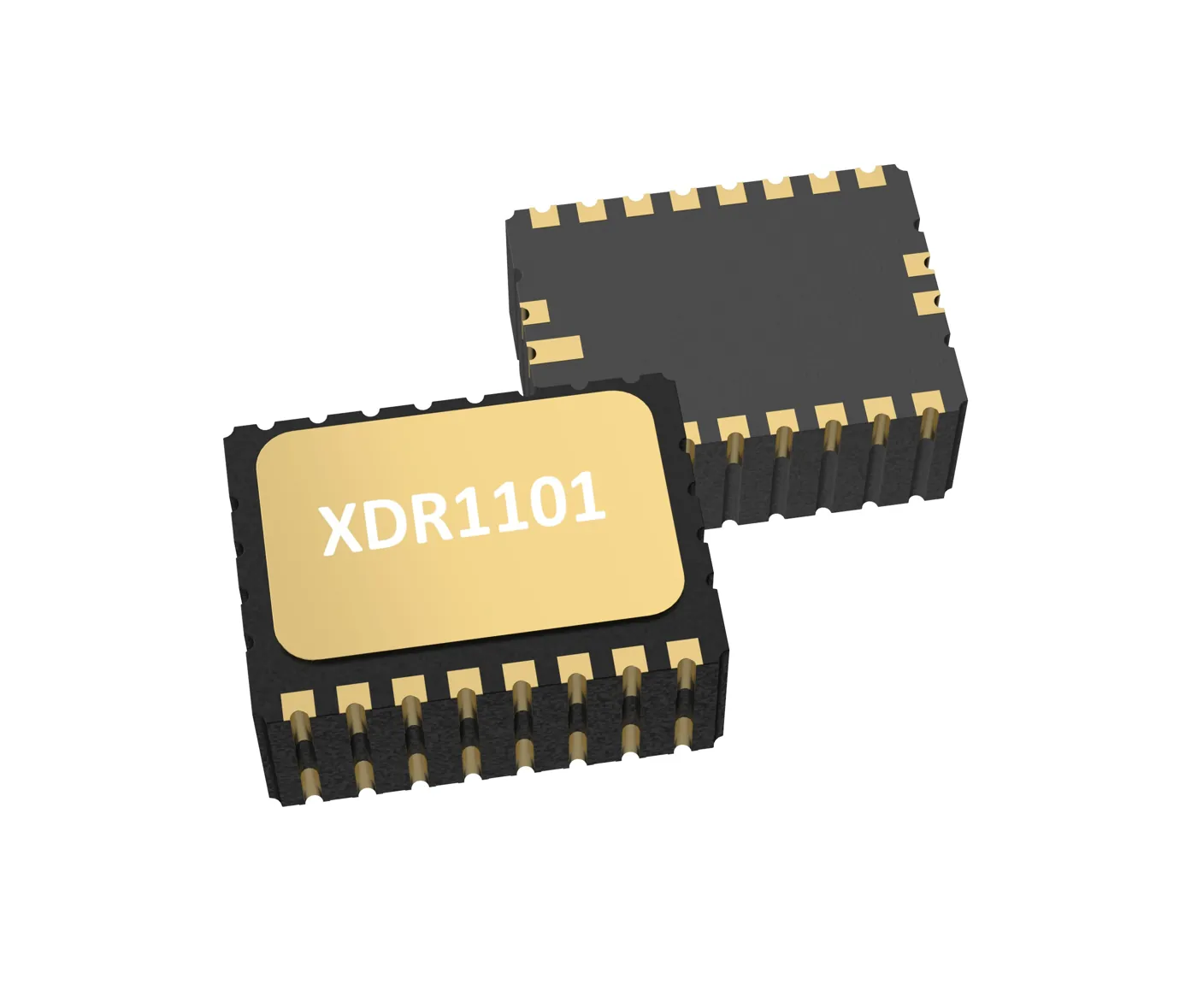

MEMSLink XDR1101 Low-Noise Industrial-Grade Z-Axis MEMS Gyroscope

Vendor: MEMSLink

Product: XDR1101 Z MEMS

The XDR1101 is MEMSLink's low-noise industrial Z-axis MEMS gyroscope with a ±100°/s range and 12.5 Hz 3dB bandwidth, delivering 0.2°/hr Allan bias stability and only 0.03°/√hr ARW; 24-bit two's-complement output over SPI with integrated temperature sensor at 40 mA typical current; 3.0-3.6 V supply, -40°C to +85°C in a 5.8x7.8x3.2 mm LCC ceramic package with 3,000 g powered shock, suited to antenna azimuth and attitude measurement demanding tight noise and long-term stability.
