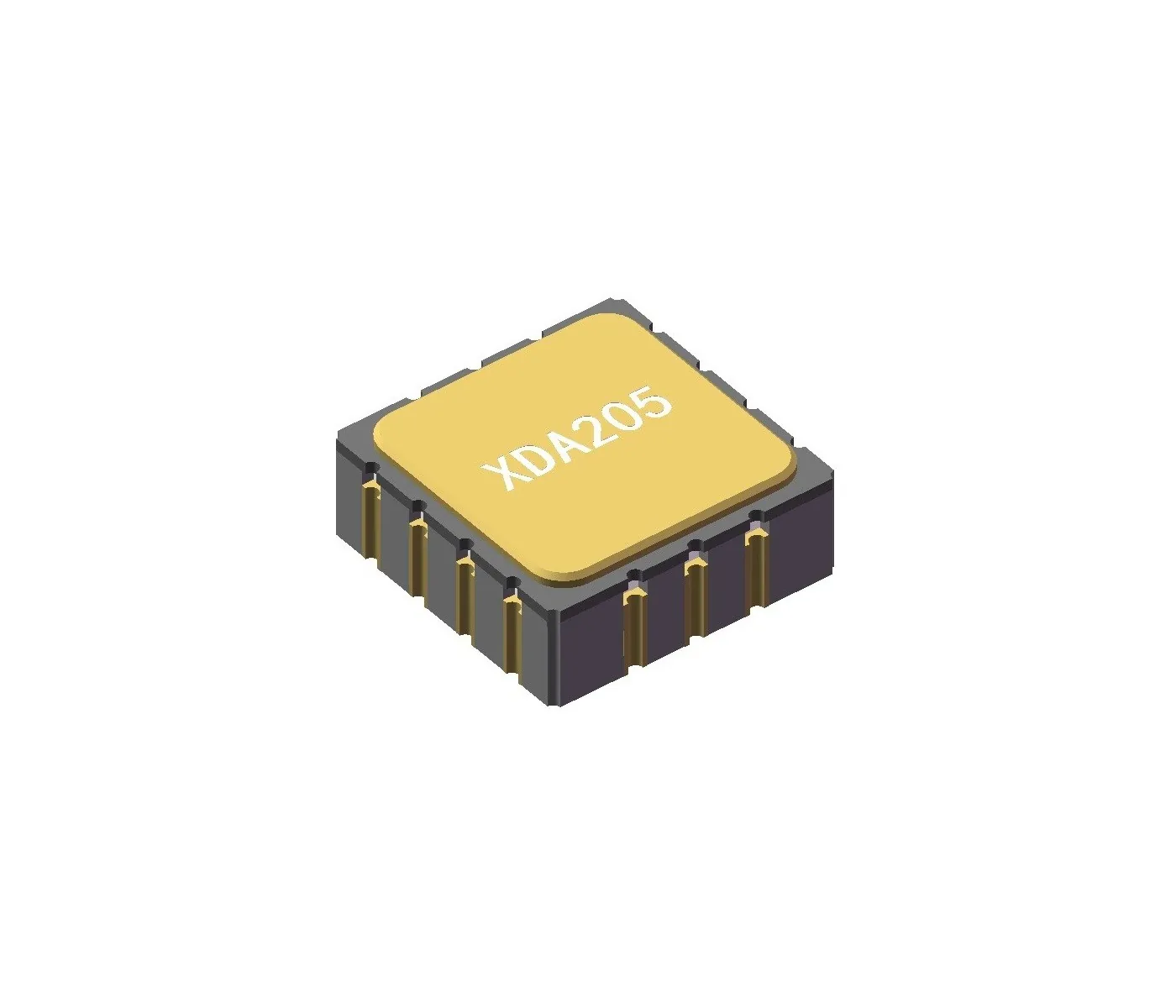

MEMSLink XDA205 Industrial-Grade 2-Axis MEMS Accelerometer

Vendor: MEMSLink

Product: XDA205 2 MEMS

The XDA205 is MEMSLink's industrial X/Y two-axis MEMS accelerometer with configurable ±2g/±3g ranges, 1000 Hz 3dB bandwidth and 5 ug Allan bias stability, 20-bit two's-complement output over SPI at only 0.4 mA typical current; 3.0-3.6 V supply, -40°C to +85°C in a 6x6x2.25 mm LCC package with 5,000 g powered shock, aimed at tilt and deformation monitoring demanding small range, low noise and high stability.
