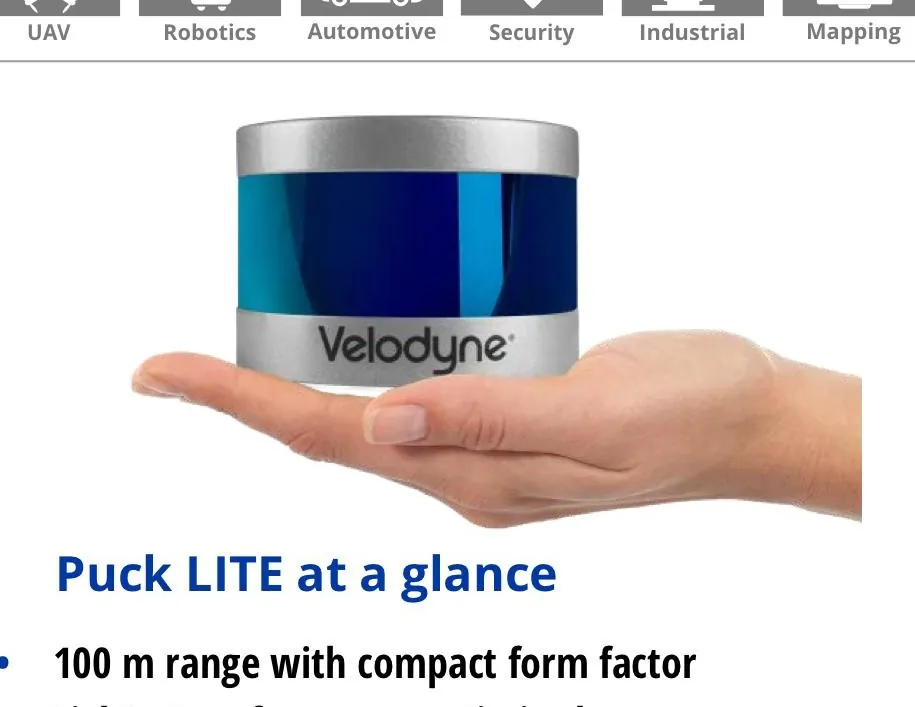

Velodyne Puck LITE Lightweight 3D LiDAR
Vendor: Velodyne LiDAR (Ouster, USA)
Product: Puck LITE 3D
Velodyne Puck LITE is the lightweight Puck: 16 channels, 360x30 deg FOV, 100 m range at +/-3 cm, 2.0 deg vertical resolution, 0.1-0.4 deg azimuth, 5-20 Hz, ~600k pts/s; 903 nm Class 1 eye-safe, 8 W, only ~590 g, -10 to +60 C. Ideal for payload-sensitive platforms like UAVs and inspection robots.
| Weight | ~590 g |
| Channels | 16 |
| Interface | 100 Mbps Ethernet |
| Max Range | 100 m |
| Point Rate | ~600k pts/s |
| Wavelength | 903 nm (Class 1 eye-safe) |
| Storage Temp | -40 to +105 C |
| Vertical Fov | 30 deg (+15 to -15) |
| Input Voltage | 9-18 V |
| Rotation Rate | 5-20 Hz |
| Horizontal Fov | 360 deg |
| Operating Temp | -10 to +60 C |
| Range Accuracy | +/-3 cm (typical) |
| Power Consumption | 8 W typ. |
| Azimuth Resolution | 0.1-0.4 deg |
| Vertical Resolution | 2.0 deg |
