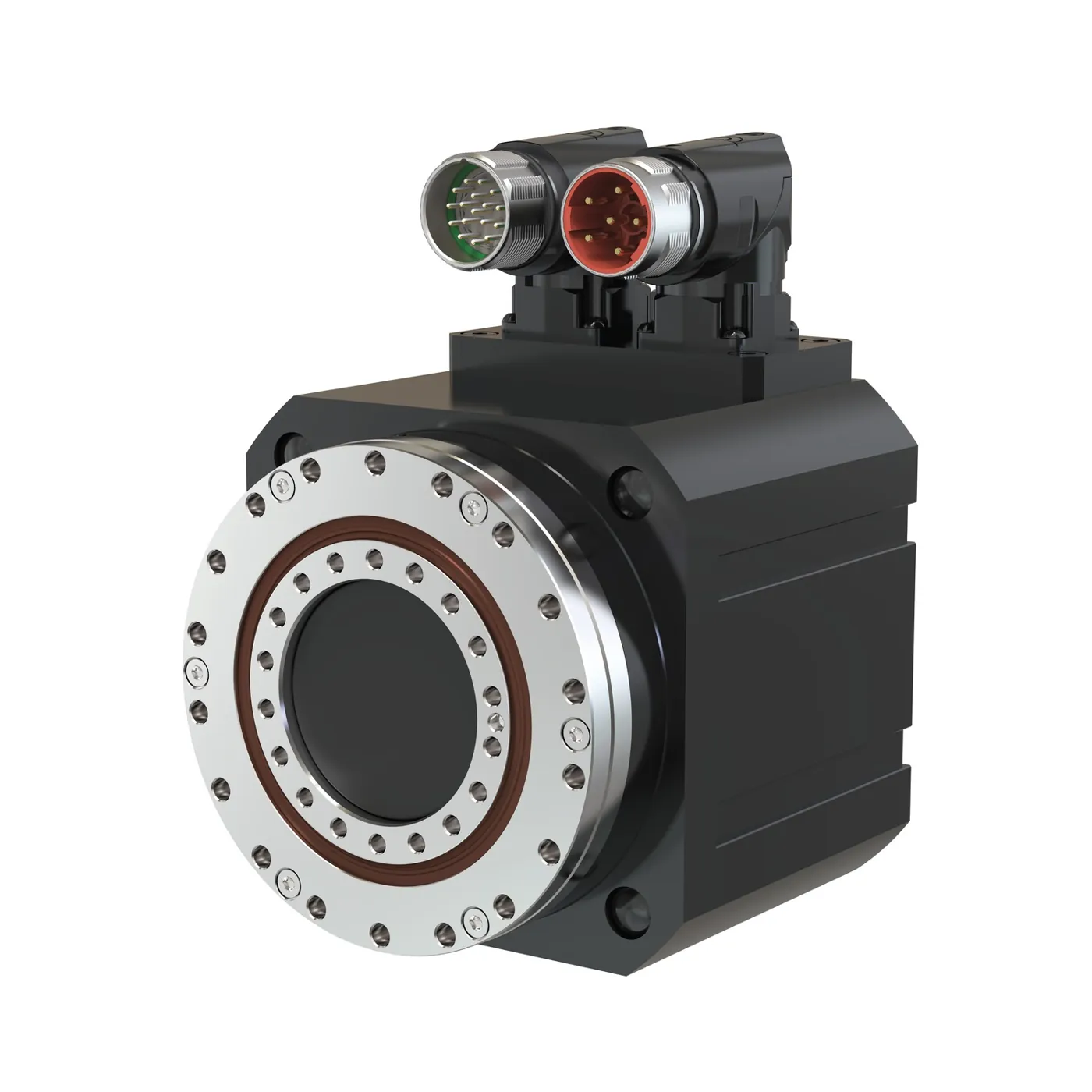

SPINEA DriveSpin Integrated Servo Joint Actuator Series
Vendor: SPINEA (Timken, Slovakia)
Product: DriveSpin
SPINEA (Slovakia, now part of Timken) is a European leader in precision cycloidal reduction and integrated actuators. DriveSpin combines an optimized servomotor with a TwinSpin cycloidal gear into a zero-backlash, high-dynamic actuator with high torsional/tilting stiffness and integrated output bearing: DS Standard covers 18-460 N·m rated torque with up to 1150 N·m acceleration/braking torque, ratios 47-133, 2000 rpm rated input; DSH hollow-shaft, DSM modular and DSF flat variants complete the line. Used in 6-axis robots, gantries and manipulators, CNC machines, bending machines, medical equipment, aerospace, flight simulators, semiconductor and radar systems.
| Variants | DS Standard / DSH Hollowshaft / DSM Modular / DSF Flat |
| Applications | 6-axis robots, gantry robots, CNC, bending machines, medical, aerospace, simulators, semiconductor, radar |
| Gear Technology | TwinSpin cycloidal, zero backlash, integrated radial-axial output bearing |
| Reduction Ratios | 47 - 133 |
| Rated Input Speed | 2000 rpm |
| Sizes / Rated Torque | DS050 18; DS060 18; DS070 50; DS095 85; DS110 122; DS115 170; DS140 268; DS155 460 N·m |
| Acceleration/braking Torque | 36 - 1150 N·m |
