#DriveSpin (4)

SPINEA DriveSpin DSM Modular Cycloidal Integrated Actuators (18-122 Nm)

SPINEA DriveSpin DSM is the modular variant of the DriveSpin family, combining a zero-backlash Twin Spin cycloidal gear with a servo motor in a modular package for flexible motor and interface configuration; four frames DSM 050/070/095/110 with 18-122 Nm rated output torque (DSM 070: 50 Nm rated, 100 Nm acceleration/braking), ratios 57/75, 2,000 rpm rated input. High positioning and repeat accuracy with strong torsional stiffness suit robot joints, precision turntables and industrial automation.

COMPONENT

Integrated jointsJoint modulesModularCycloidal reductionDriveSpin

SPINEA DriveSpin DSF Flat Low-Profile Cycloidal Integrated Actuators (12-85 Nm)

SPINEA (Slovakia, a Timken company) DriveSpin DSF is the flat low-profile variant of the DriveSpin family, integrating a zero-backlash Twin Spin cycloidal gear with a servo motor into a compact actuator with extremely short axial length; three frames DSF 050/070/095 with 12-85 Nm rated output torque (DSF 070: 50 Nm rated, 100 Nm acceleration/braking), ratios 57/75, 2,000 rpm rated input. The built-in bearing system gives high torsional stiffness and load capacity; low mass and small size suit robot joints, AGVs and medical devices with tight height constraints.

COMPONENT

Integrated jointsJoint modulesLow-profileCycloidal reductionDriveSpin

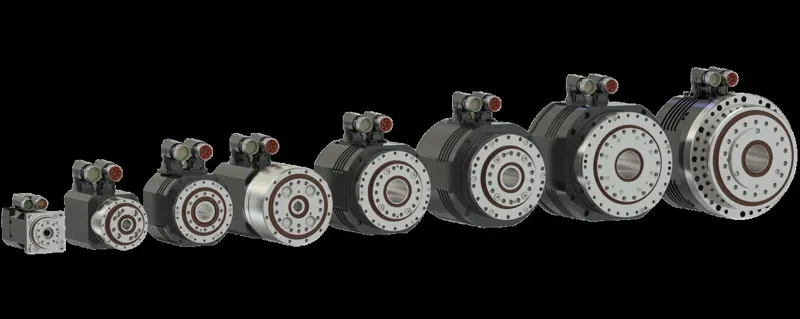

SPINEA DriveSpin DSH Hollow Cycloidal Integrated Actuators (18-420 Nm)

SPINEA (Slovakia, a Timken company) DriveSpin DSH are fully sealed integrated electric actuators combining zero-backlash cycloidal reduction with a servo motor, short axial length and 8-40 mm through-hole for cables, pipes or shafts; ten frames DSH 050-170 with 18-420 Nm rated torque, peak about 2x rated (DSH070: 50/100 Nm), ratios 57-125, 2,000 rpm rated input, high positioning and repeat accuracy for robot joints, AGVs and medical devices.

COMPONENT

Integrated jointsJoint modulesCycloidal reductionHollow ActuatorDriveSpin

SPINEA DriveSpin Integrated Servo Joint Actuator Series

SPINEA (Slovakia, now part of Timken) is a European leader in precision cycloidal reduction and integrated actuators. DriveSpin combines an optimized servomotor with a TwinSpin cycloidal gear into a zero-backlash, high-dynamic actuator with high torsional/tilting stiffness and integrated output bearing: DS Standard covers 18-460 N·m rated torque with up to 1150 N·m acceleration/braking torque, ratios 47-133, 2000 rpm rated input; DSH hollow-shaft, DSM modular and DSF flat variants complete the line. Used in 6-axis robots, gantries and manipulators, CNC machines, bending machines, medical equipment, aerospace, flight simulators, semiconductor and radar systems.

COMPONENT

Joint modulesServo ActuatorSPINEADriveSpinCycloidal reduction
