#Flexible sensors (6)

FLEXIBLE FOS-P300 Series Flexible Resistive Tactile Sensor

Resistive tactile sensing system from FLEXIBLE (Zhejiang Fulai New Materials, SHA 605488): multimodal pressure/temperature/proximity/shear perception in an ultra-thin conformable film for fingers and palms. FOS-P300-3DF measures 0.1-20 N normal force at 5% FS with 0.01 N resolution and <0.1 mm spatial resolution, 0.3-10 N shear; trigger pressure <3 kPa to >1 MPa, <10% point consistency, 4-pin UART at 100-300 Hz for robot tactile feedback.

COMPONENT

Tactile sensorsElectronic skinFlexible sensorsResistive HapticFolainew Material

Hanwei Stretch Strain Sensor ESSA-01/ESSB-01

Hanwei (Winsensor) stretch strain sensor ESSA-01/ESSB-01, 0.36/1 mm thick, 0-50% stretch range, 0.05% resolution, 99.9% linearity, >150k/300k cycles, 10-60 C, machine-washable >30/60 times; for flexible deformation and joint bending monitoring.

COMPONENT

Flexible sensorsStretch StrainHanwei TechnologyESSA

Hanwei Pressure-Strain Sensor ESPB-01/B1

Hanwei (Winsensor) pressure-strain sensor ESPB-01/B1, 2.3/2 mm thick, range 0-850 N / 0-1800 N, resolution 0.5/1.5 N, >300k cycles, 10-60 C, machine-washable; for large-range flexible force measurement.

COMPONENT

Flexible sensorsPressure StrainHanwei TechnologyESPB

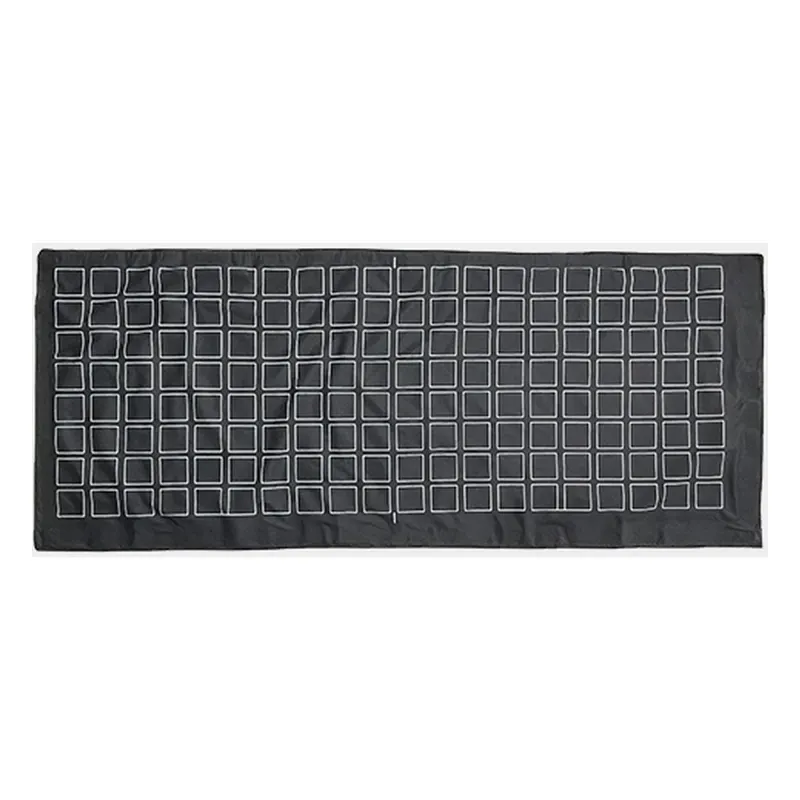

Hanwei Flexible Pressure Array Sensor (Fabric/TPU)

Hanwei (Winsensor) flexible pressure array sensor on fabric/TPU substrate, freely bendable; range 5-50 N, accuracy ±15%, 50 Hz refresh, 100 ms response, 0-40 C; for robot tactile skin and pressure distribution mapping.

COMPONENT

Pressure ArrayTactile ArrayFlexible sensorsHanwei Technology

Hanwei DF9 Series Flexible Thin-Film Force Sensor

Hanwei (Winsensor) DF9 resistive flexible thin-film force sensor, <0.3 mm thick, ranges 0-500 g to 0-20 kg (DF9-40/DF9-16), accuracy ±2.5%, response <1 ms, recovery <15 ms, >1M cycles life, >10 MOhm initial resistance, 3.3 VDC, -20 to 60 C; for robot grip force, foot pressure and contact sensing.

COMPONENT

Thin-Film Pressure SensorFlexible sensorsHanwei TechnologyDF9

0:50

Robot prototype with full-body flexible electronic skin

@warmcore7278 · 136 views · 2026-08-11

Electronic skinTactile PerceptionHumanoid robots
