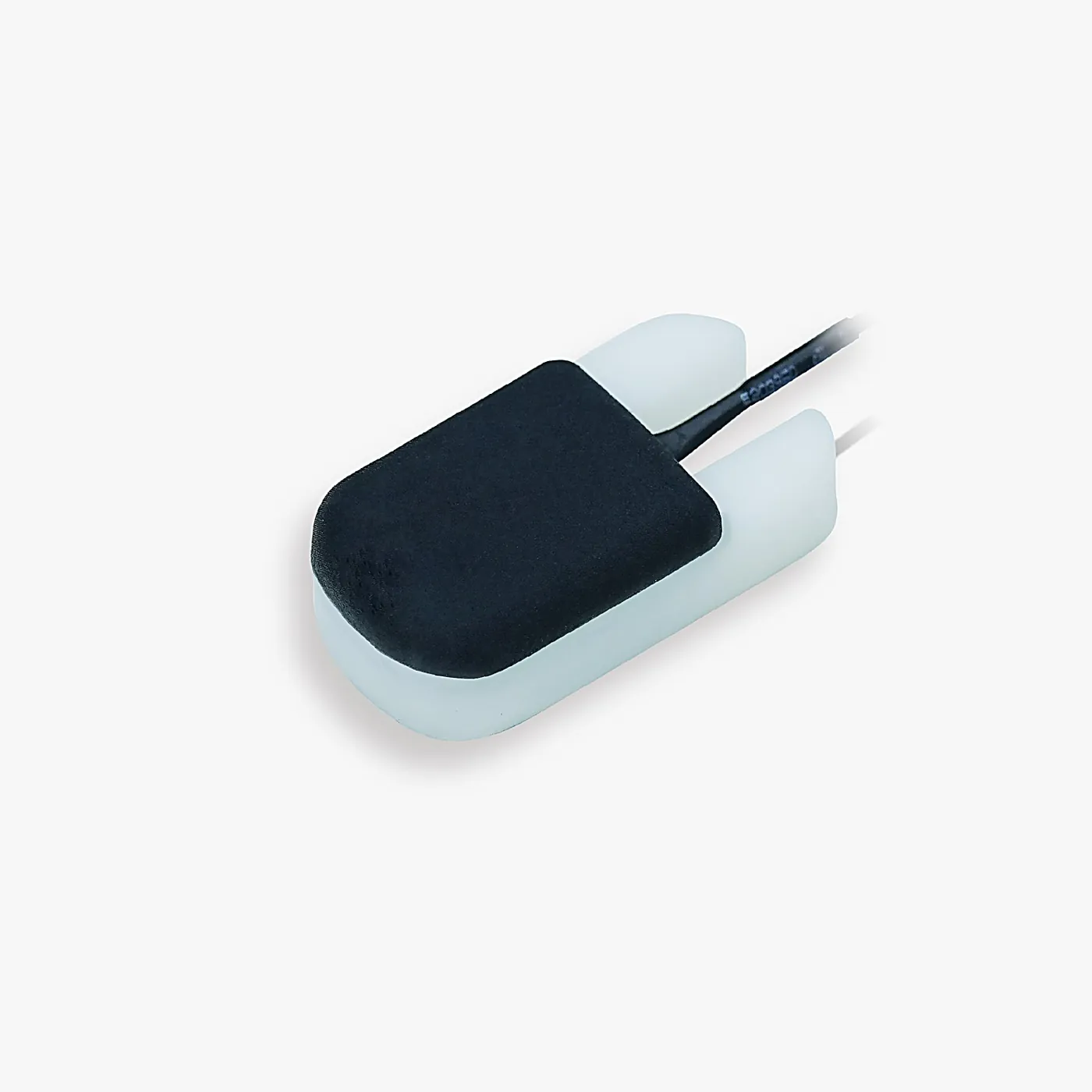

FLEXIBLE FOS-P300 Series Flexible Resistive Tactile Sensor
Vendor: FLEXIBLE
Product: FOS-P300
Resistive tactile sensing system from FLEXIBLE (Zhejiang Fulai New Materials, SHA 605488): multimodal pressure/temperature/proximity/shear perception in an ultra-thin conformable film for fingers and palms. FOS-P300-3DF measures 0.1-20 N normal force at 5% FS with 0.01 N resolution and <0.1 mm spatial resolution, 0.3-10 N shear; trigger pressure <3 kPa to >1 MPa, <10% point consistency, 4-pin UART at 100-300 Hz for robot tactile feedback.
| Sampling | 100–300 Hz |
| Interface | 4 Pin（UART / SPI / I²C） |
| Shear 3df | 0.3–10 N 5% FS / <10° |
| Temp Drift | <0.5% FS/°C |
| Consistency | <10% <10% @ 50% FS |
| Range P300p | 0.5–30 N 10% FS |
| Range P300s | 0.2–10 N 0.5–1% FS <1 mm |
| Accuracy 3df | 5% FS |
| Range P300s 6df | 0.2–20 N 5–10% FS 0.5–10 N |
| Force Resolution | 0.01 N |
| Normal Range 3df | 0.1–20 N（FOS-P300-3DF ） |
| Trigger Pressure | <3 kPa >1 MPa |
| Spatial Resolution 3df | <0.1 mm |
