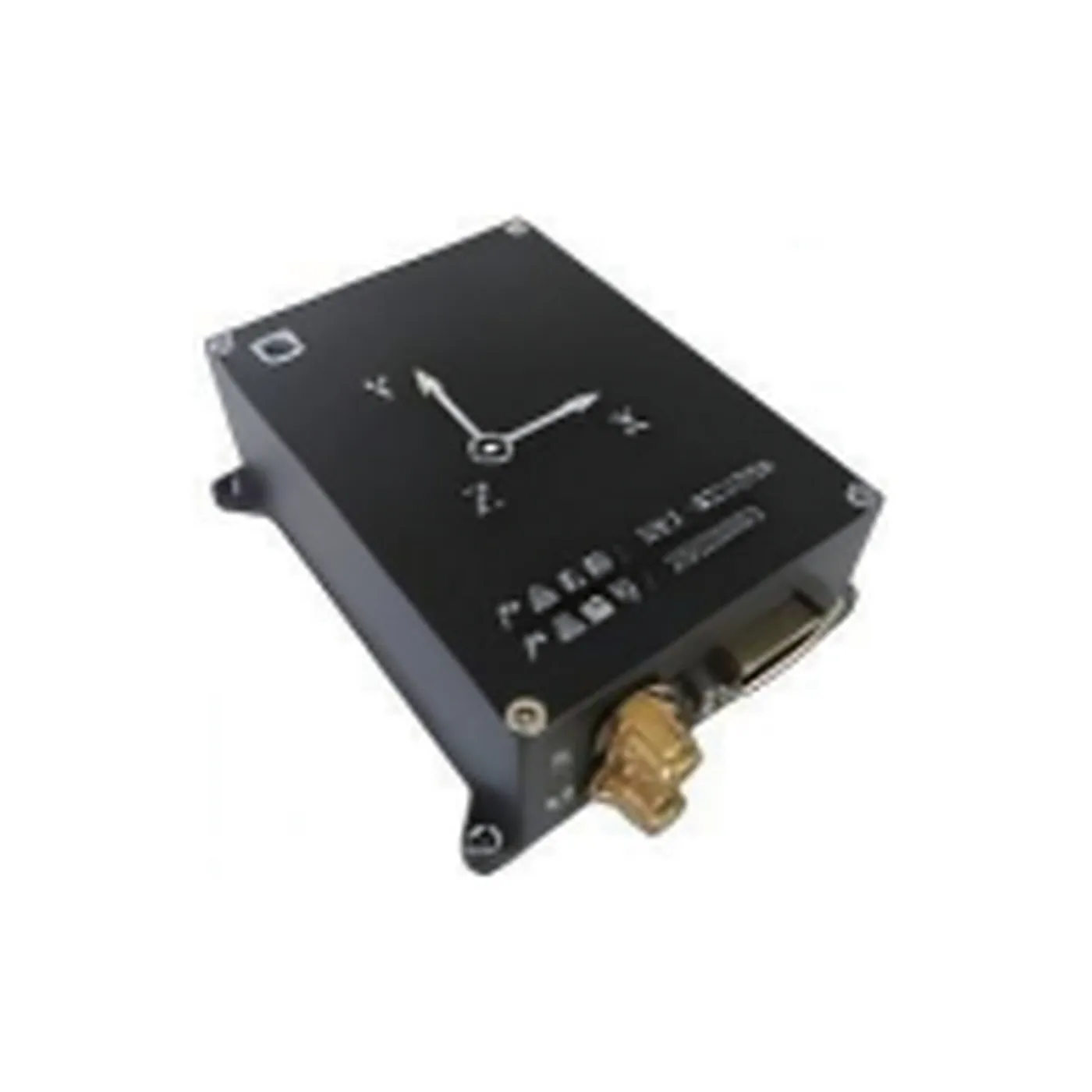

BITNAV DHX-MZ104 MEMS Integrated Navigation System
Vendor: BITNAV
Product: DHX-MZ104 MEMS
BITNAV (688282.SH) DHX-MZ104 lightweight cost-effective MEMS integrated navigation system: 68×50×25.5 mm, 105 g, 5-12 V supply, <2 W; gyro range ±450°/s with ≤3°/h (10s,1σ) bias stability and ≥200 Hz bandwidth, accelerometer ±16 g (±32 g optional) with ≤100 μg (10s,1σ) bias stability; horizontal attitude 0.1° (1σ) and heading 0.1° (1σ, 2 m baseline), single-point positioning 3 m (1σ) / height 4.0 m (1σ), velocity 0.1 m/s (1σ), RS-232/RS422 output; for unmanned vehicle, vessel and UAV navigation, control and survey.
| Size | 68 × 50 × 25.5 mm |
| Type | MEMS integrated navigation system (INS/GNSS) |
| Power | 5-12 V, <2 W |
| Weight | 105 g |
| Bandwidth | ≥200 Hz (gyro & accel) |
| Interface | RS-232 / RS422 |
| Gyro Range | ±450°/s |
| Accel Range | ±16 g (±32 g optional) |
| Attitude Accuracy | 0.1° (1σ) horizontal; 0.1° (1σ) heading, 2 m baseline |
| Position Accuracy | 3 m (1σ) single point; 4.0 m (1σ) height |
| Velocity Accuracy | 0.1 m/s (1σ) |
| Gyro Bias Stability | ≤3°/h (10s, 1σ) |
| Accel Bias Stability | ≤100 μg (10s, 1σ) |
