HiPNUC HI71 Tactical-Grade Compact Attitude/INS Module
Vendor: HiPNUC ( )
Product: HI71 /

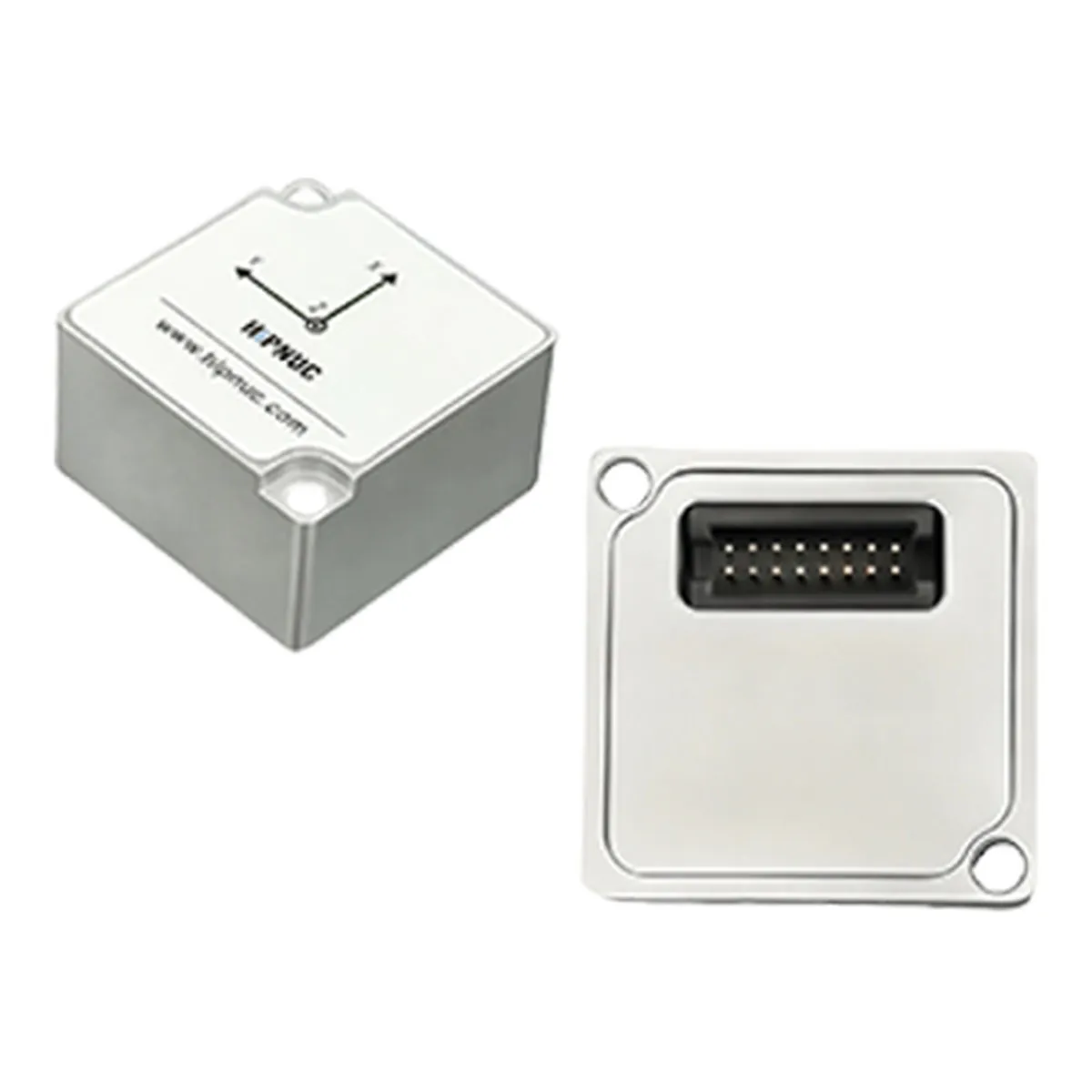

HiPNUC (Beijing) HI71 is a tactical-grade compact inertial module in a 24×24×14 mm aluminum case with board-to-board connectors for easy integration. Four variants: T2 (VRU), T4 (AHRS + barometer), M4 (MRU heave) and N4 (INS): gyro ±300 °/s with 0.3 °/h bias instability and 0.0004 °/s√Hz XY noise density; accelerometer ±16 g with 10 μg bias instability; T4/M4/N4 add a ±20 Gauss magnetometer and 300~1200 hPa barometer. Pitch/roll 0.05~0.1°, UART up to 1000 Hz and CAN at 200 Hz, binary/CANopen/Modbus/NMEA protocols with PPS/UTC sync, 3.6~5 V supply at 370 mW.
| Variants | T2 (VRU) / T4 (AHRS) / M4 (MRU) / N4 (INS) |
| Dimensions | 24 × 24 × 14 mm (aluminum) |
| Output Rate | UART 1000 Hz / CAN 200 Hz |
| Supply Voltage | 3.6~5 V |
| Barometer Range | 300~1200 hPa (T4/M4/N4) |
| Gyro Full Range | ±300 °/s |
| Accel Full Range | ±16 g |
| Power Consumption | 370 mW |
| Gyro Noise Density | XY 0.0004 / Z 0.0006 °/s√Hz |
| Magnetometer Range | ±20 Gauss (T4/M4/N4) |
| Gyro Bias Instability | 0.3 °/h |
| Accel Bias Instability | 10 μg |
| Static Pitch Roll Accuracy | 0.05~0.1° |
