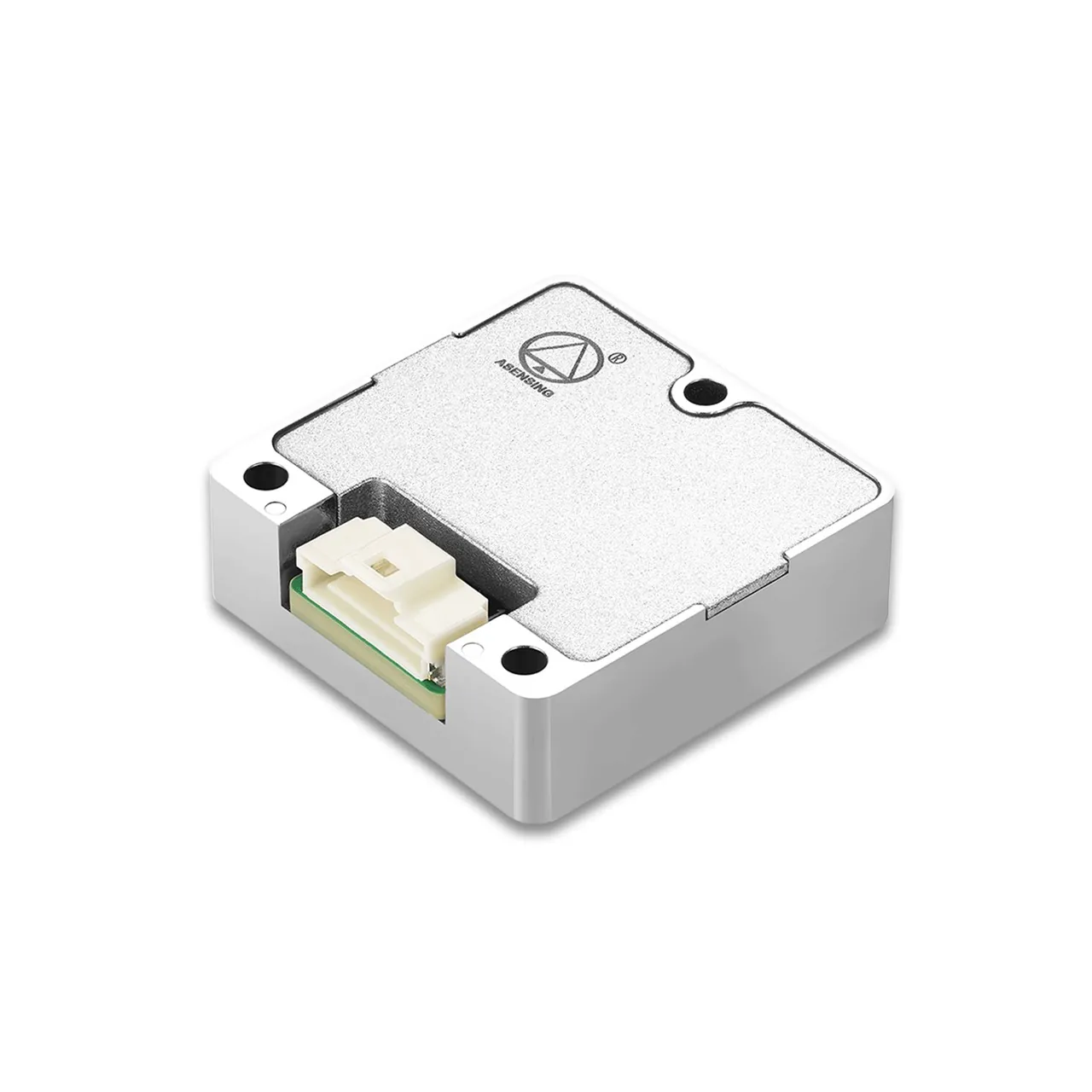

Asensing IMU5305 Industrial 6-Axis IMU
Vendor: Asensing ( )
Product: IMU5305 IMU
Asensing (Guangzhou) IMU5305 is a general-purpose industrial 6-axis IMU: gyro ±500 °/s with bias instability ≤2 °/h and angular random walk ≤0.18 °/√h; accelerometer ±16 g with bias instability ≤0.035 mg. Measures 30×30×10 mm, weighs 26.2±1 g, 5±0.5 V supply ≤0.1 A, UART+PPS interface (SPI optional) — a cost-effective domestic choice for attitude estimation on robots, AGVs and unmanned platforms.
| Axes | 6 (3-axis accel + 3-axis gyro) |
| Supply | 5 ± 0.5 V, ≤0.1 A |
| Weight | 26.2 ± 1 g |
| Gyro Arw | ≤0.18 °/√h |
| Dimensions | 30 × 30 × 10 mm |
| Interfaces | UART + PPS (SPI optional) |
| Gyro Full Range | ±500 °/s |
| Accel Full Range | ±16 g |
| Gyro Bias Instability | ≤2 °/h |
| Accel Bias Instability | ≤0.035 mg |
