Hevi-Rail steel I-channel rail 1000 mm, 18MnNb6 steel yield 430 N/mm2; for HVB-055/HVBEA-455 rollers.
COMPONENT

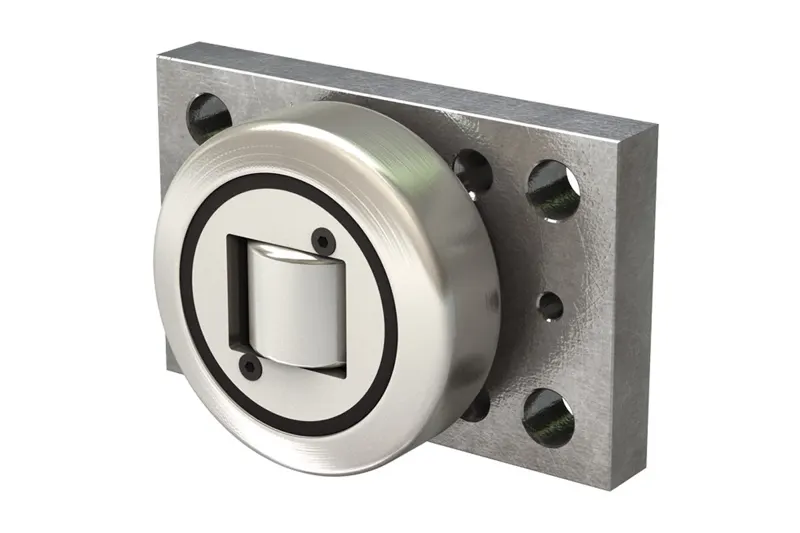

Hevi-Rail heavy duty roller 52.5 mm OD with welded horizontal flange plate; radial 5.23 kN static.
Single roller pillow block for 25 mm shaft; 3.25 x 2.63 x 1.94 in, approx. 1 lbs, open style for supported shafting.
Heavy-duty steel U-channel linear rail, 1000 mm long x 65 mm wide, 18MnNb6 ferritic steel (yield 430 N/mm², tensile 550-770 N/mm², HB 160-210), mates with HVB-053 / HVBEA-453 rollers.
Fixed Heavy Duty Linear Roller Bearing with a 62mm diameter, part of the Hevi-Rail Linear Guide system, designed to handle substantial axial and radial loads. Compatible with the Hevi-Rail Linear Rail HVR-0 U-Type. The roller bearing is crafted from durable case-hardened S450J2 MOD.

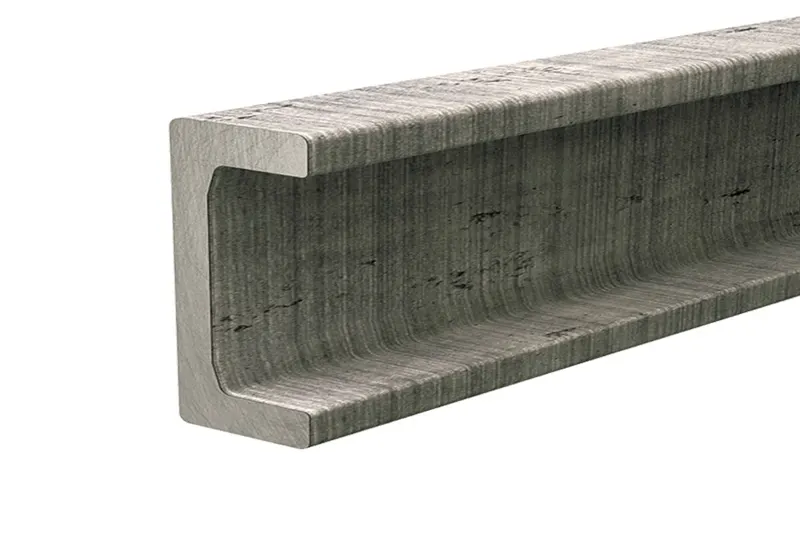

U-Channel Heavy Duty Linear Rail made of steel and 1000mm long, for roller bearings HVB-054 and HVBEA-454 (eccentric adjustable) of the Hevi-Rail linear guide system. The material composition of the rail is 18MnNb6 ferritic steel (yield: 430 N/mm², tensile: 550-770 N/mm², Brinell hardness: 160-210).
