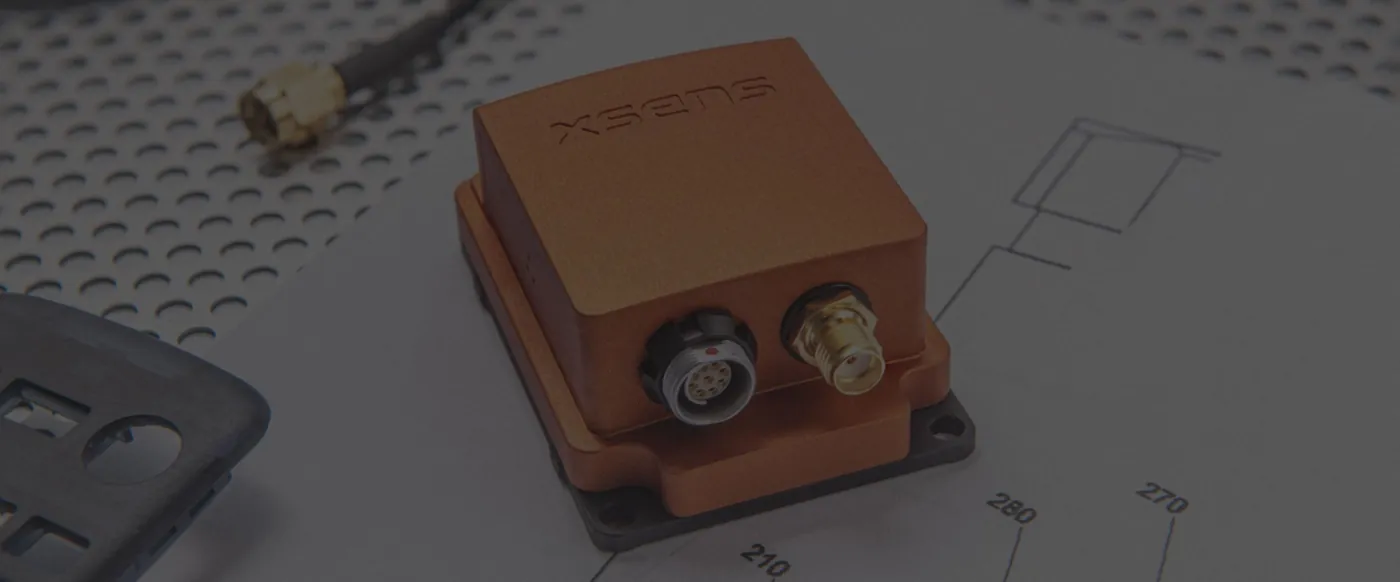

Movella Xsens MTi-G-710 GNSS/INS
Vendor: Movella Technologies B.V. (Netherlands, formerly Xsens)
Product: MTi-G-710 GNSS/INS
Movella (formerly Xsens) MTi-G-710 is a GNSS/INS module with u-blox MAX-M8: 1.0 m (1 sigma) position, 0.05 m/s velocity, 0.2 deg RMS roll/pitch, 0.8 deg RMS heading; 450 deg/s gyro with 10 deg/h bias stability, IP67, 58 g, 660 mW, USB/RS232/RS422. Dependable combined navigation for inspection robots, ag machinery and vehicles.
| Brand | u-blox |
| Model | MAX-M8 |
| Weight | 58 g |
| Position | 1.0 m (1σ STD) |
| Velocity | 0.05 m/s (1σ STD) |
| Barometer | onboard |
| Protocols | Xbus, ASCII (NMEA) |
| Dimensions | 57 × 41.9 × 23.6 mm |
| Interfaces | USB, RS232, RS422, UART |
| Roll, Pitch | 0.2 deg RMS |
| Yaw/heading | 0.8 deg RMS |
| Magnetometer | onboard |
| Input Voltage | 3V3, 4.5 V–34 V |
| Noise Density | 0.01 °/s/√Hz |
| Output Frequency | up to 2 kHz |
| Standard Full Range | 450 deg/s |
| In-run Bias Stability | 10 deg/h |
| Ip-rating (equivalent) | IP67 |
| Power Consumption (typ.) | 660 mW |
