TQ-RoboDrive ILM-E Frameless Servo Kits (0.32-3.3 Nm, Made in Germany)
Vendor: TQ-RoboDrive (Germany)
Product: ILM-E

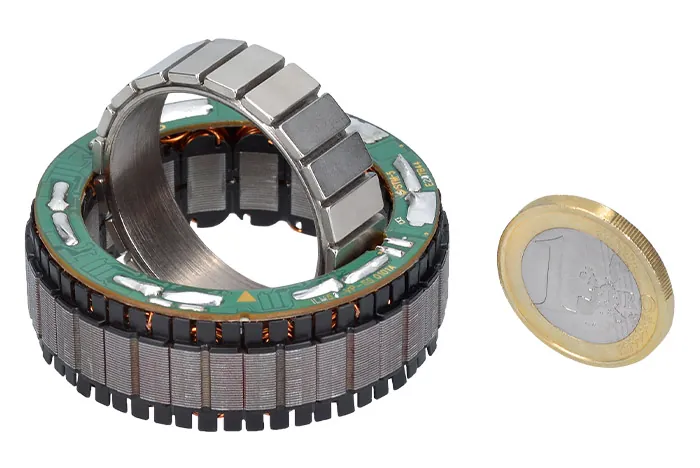

TQ-RoboDrive (Germany) ILM-E is a cost-efficient frameless servo kit family spanning eight models in 50/69/85 mm frames, with 0.32-3.3 Nm rated torque, up to 10.6 Nm peak at 48 V and 7,900-12,000 rpm max speed; stators weigh only 76-822 g with 62-309 mNm/A torque constants, a spacious hollow shaft for cabling and shaft-through integration, -40~125 C stator rating, 10 pole pairs and 100% Made in Germany, targeting torque-dense robot joints, medical devices and automation.
| Models | ILM-E50x08 / 50x14 / 70x10 / 70x18 / 85x13 / 85x23 / 85x26 / 85x30 |
| Max Speed | 7,900-12,000 rpm |
| Peak Torque | 1.03-10.6 Nm |
| Stator Temp | -40 ~ 125 C |
| Rated Torque | 0.32-3.3 Nm @ 48 V |
| Diameter Weight | 50/69/85 mm; 76-822 g |
| Torque Constant | 62-309 mNm/A |
