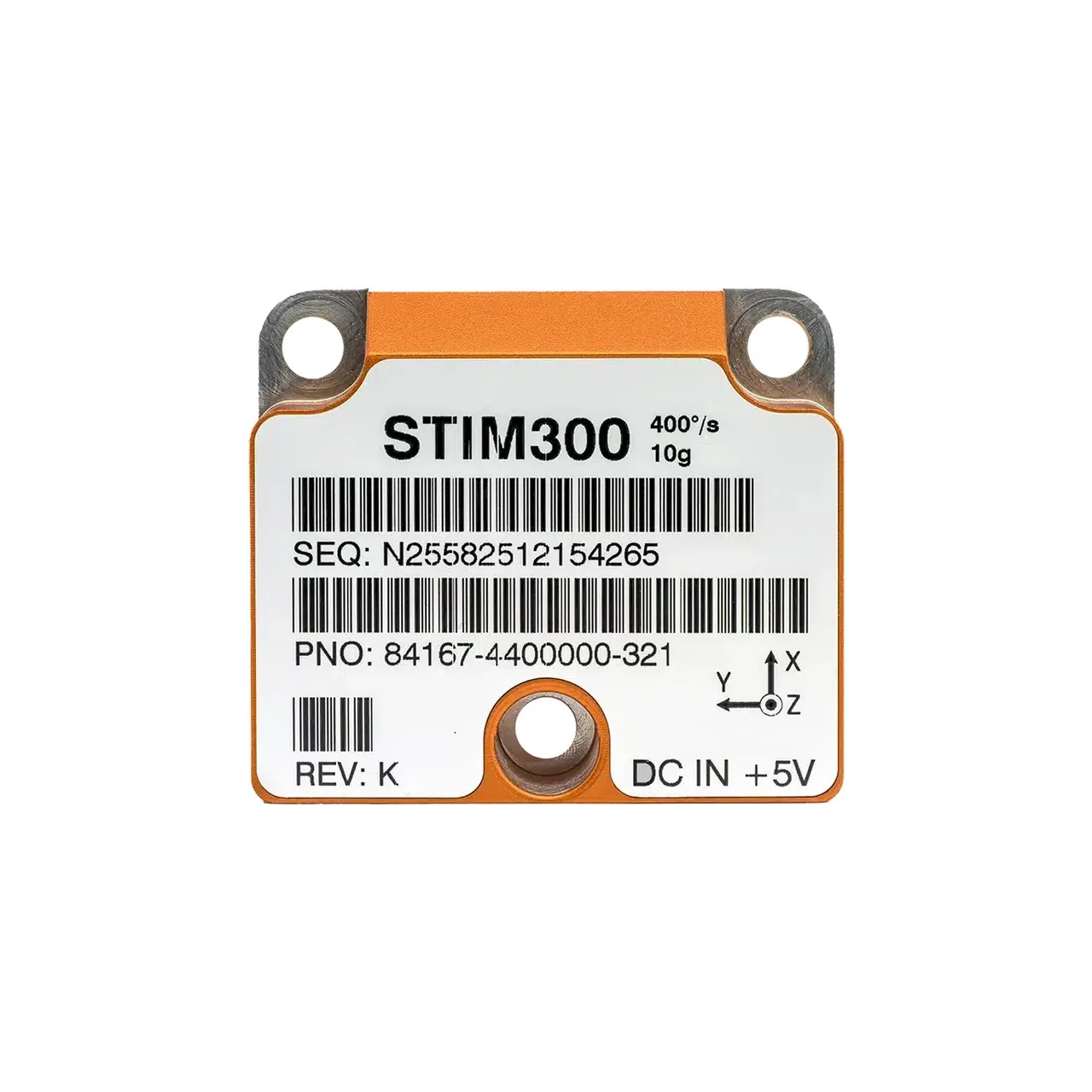

Safran STIM300 Tactical-Grade High-Performance MEMS IMU
Vendor: Safran Navigation & Timing ( , Sensonor)
Product: STIM300 IMU
Safran Navigation & Timing (formerly Sensonor, Norway) STIM300 is a small, lightweight, high-performance non-GPS-aided tactical-grade MEMS IMU containing 3 highly accurate MEMS gyros, 3 high-stability accelerometers and 3 inclinometers, factory calibrated and temperature compensated. Gyro full scale ±400 °/s (output capped at ±480 °/s) with 262 Hz bandwidth and up to 2000 samples/s; 0.3 °/h bias instability and 0.15 °/√h angular random walk (Allan variance, 25 °C), 3 °/h drift-rate stability over temperature; the ±10 g accelerometer shows 0.04 mg bias instability and 0.07 m/s/√h velocity random walk; axis misalignment is just 1 mrad. Single +5 V supply at 1.5~2 W, RS422 interface, 55 g mass, ITAR-free — a cost-effective FOG-class alternative for precision navigation on humanoid robots, robot dogs, unmanned systems and stabilization platforms.
| Weight | 55 g |
| Interfaces | RS422 |
| Sample Rate | up to 2000 samples/s |
| Gyro Bandwidth | 262 Hz (-3 dB) |
| Operating Temp | -40 to +85 °C |
| Supply Voltage | 4.5-5.5 V (nom. 5 V) |
| Gyro Full Range | ±400 °/s (output capped ±480 °/s) |
| Accel Full Range | ±10 g (standard) |
| Axis Misalignment | 1 mrad |
| Power Consumption | 1.5~2 W |
| Gyro Bias Instability | 0.3 °/h (Allan variance, 25 °C) |
| Accel Bias Instability | 0.04 mg (Allan variance, 25 °C) |
| Gyro Angular Random Walk | 0.15 °/√h (Allan variance, 25 °C) |
| Accel Velocity Random Walk | 0.07 m/s/√h |
