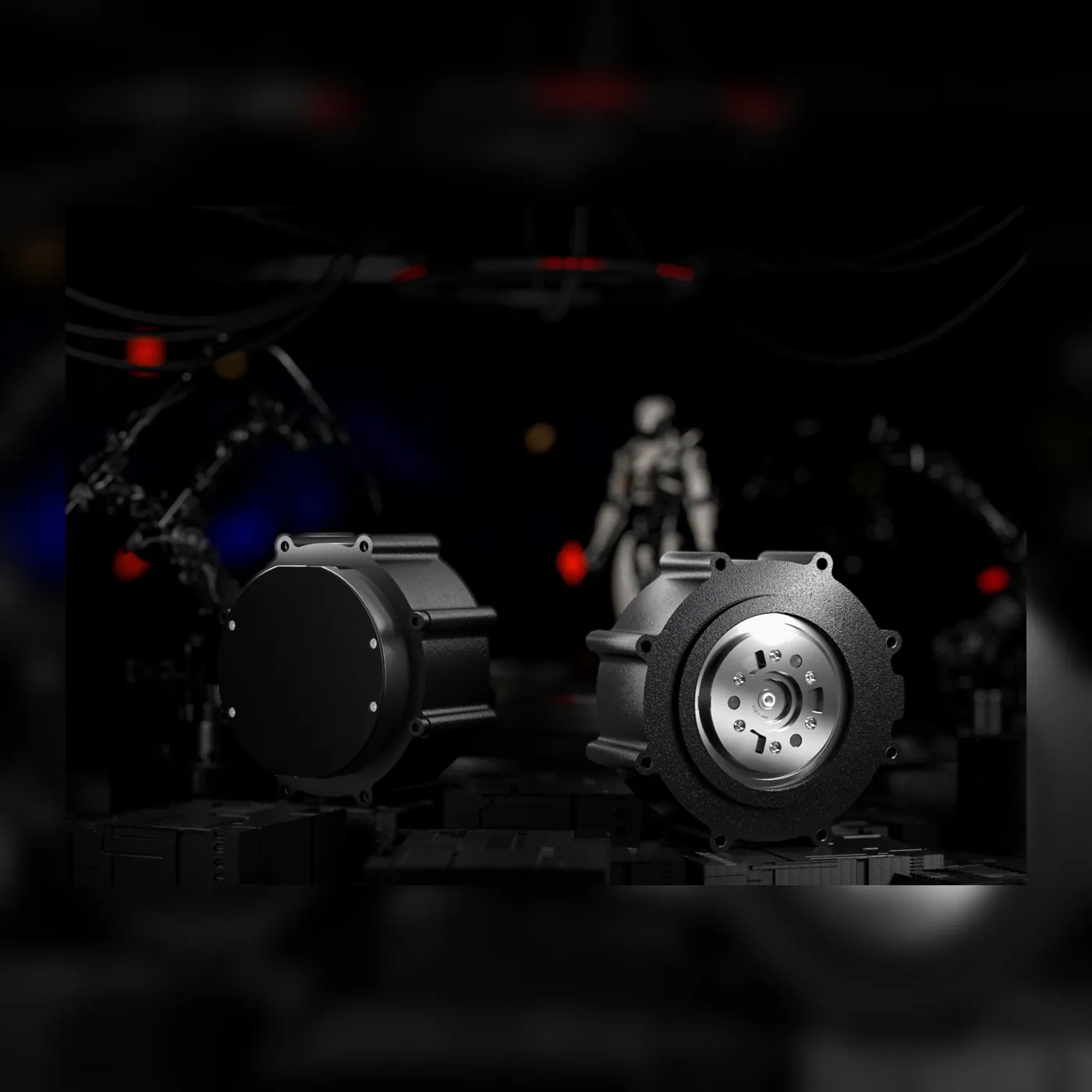

RobStride RobStride 03 Quasi-Direct-Drive Joint Module
Vendor: RobStride
Product: RobStride 03
RobStride 03 high-torque quasi-direct-drive joint module: 60N·m peak / 20N·m rated torque, 9:1 ratio, 880g, torque density 66.67N·m/kg, 380W rated power, dual magnetic encoders. Suited for humanoid shoulder/waist/hip joints.
| Size | 106×106×56mm |
| Price | ￥999 |
| Speed | 195rpm /100rpm |
| Weight | 880g |
| Protection | IP52( IP67) |
| Peak Torque | 60N·m |
| Rated Power | 380W |
| Rated Torque | 20N·m |
| Rated Voltage | 48V (15-60V) |
| Reduction Ratio | 9:1 |
