RoboSense EM4 Ultra-Long-Range Digital LiDAR

Vendor: RoboSense Technology Co., Ltd. (China, 2498.HK)

Product: EM4

RoboSense EM4 Ultra-Long-Range Digital LiDAR

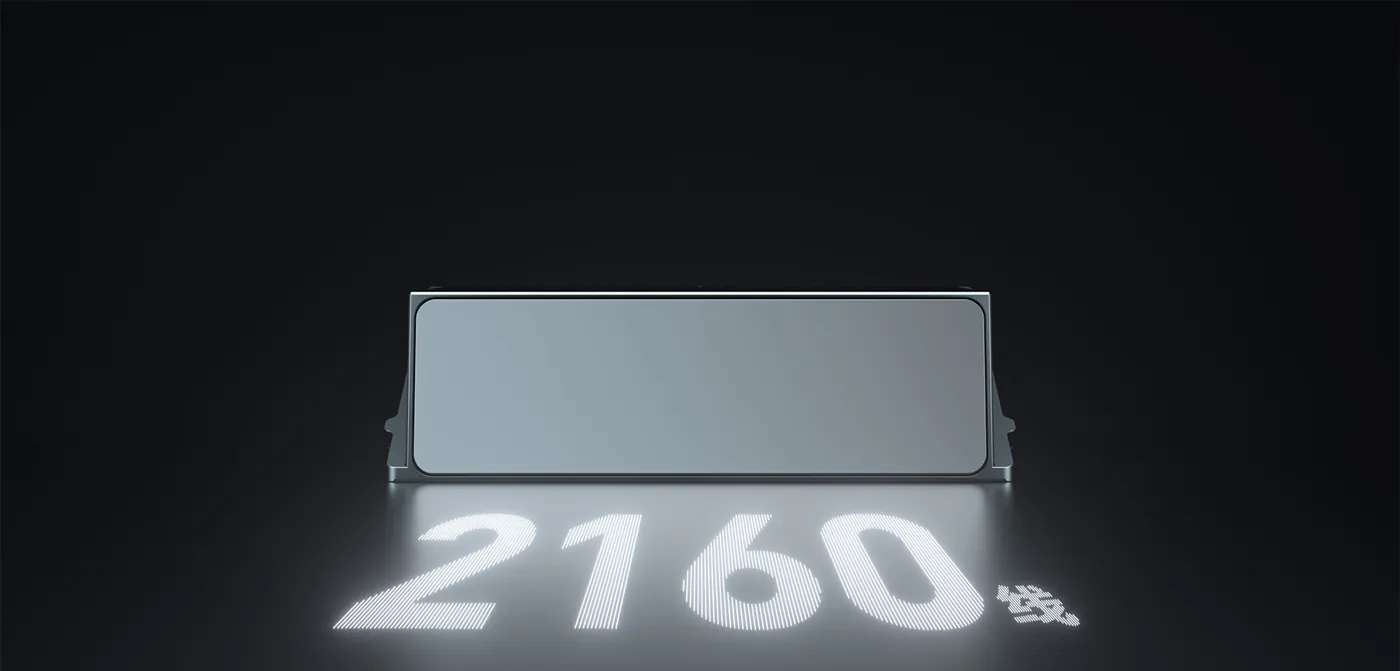

RoboSense (Shenzhen, HKEX 2498.HK) EM4 is the first product on the new digital EM platform and the world's first 'thousand-line' ultra-long-range digital LiDAR: up to 2160 lines, 600 m max range (300 m @10% reflectivity), 120x27 deg FOV, 41.04M pts/s single return; built on the self-developed SPAD-SoC fully digital architecture with 60% lossless data compression, resolving small distant objects such as tires, cones and paper boxes and extending ADAS response time by up to 70%. Also serves long-range avoidance, high-definition perception and mapping for inspection robots and unmanned vehicles.

Fov	120 deg x 27 deg
Beams	2160 lines (max)
Point Rate	41.04M pts/s (single return)
Architecture	digital SPAD-SoC, EM platform
Detection Range	600 m max; 300 m @ 10% reflectivity
Data Compression	60% lossless

https://www.robosense.ai/rslidar/EM4
