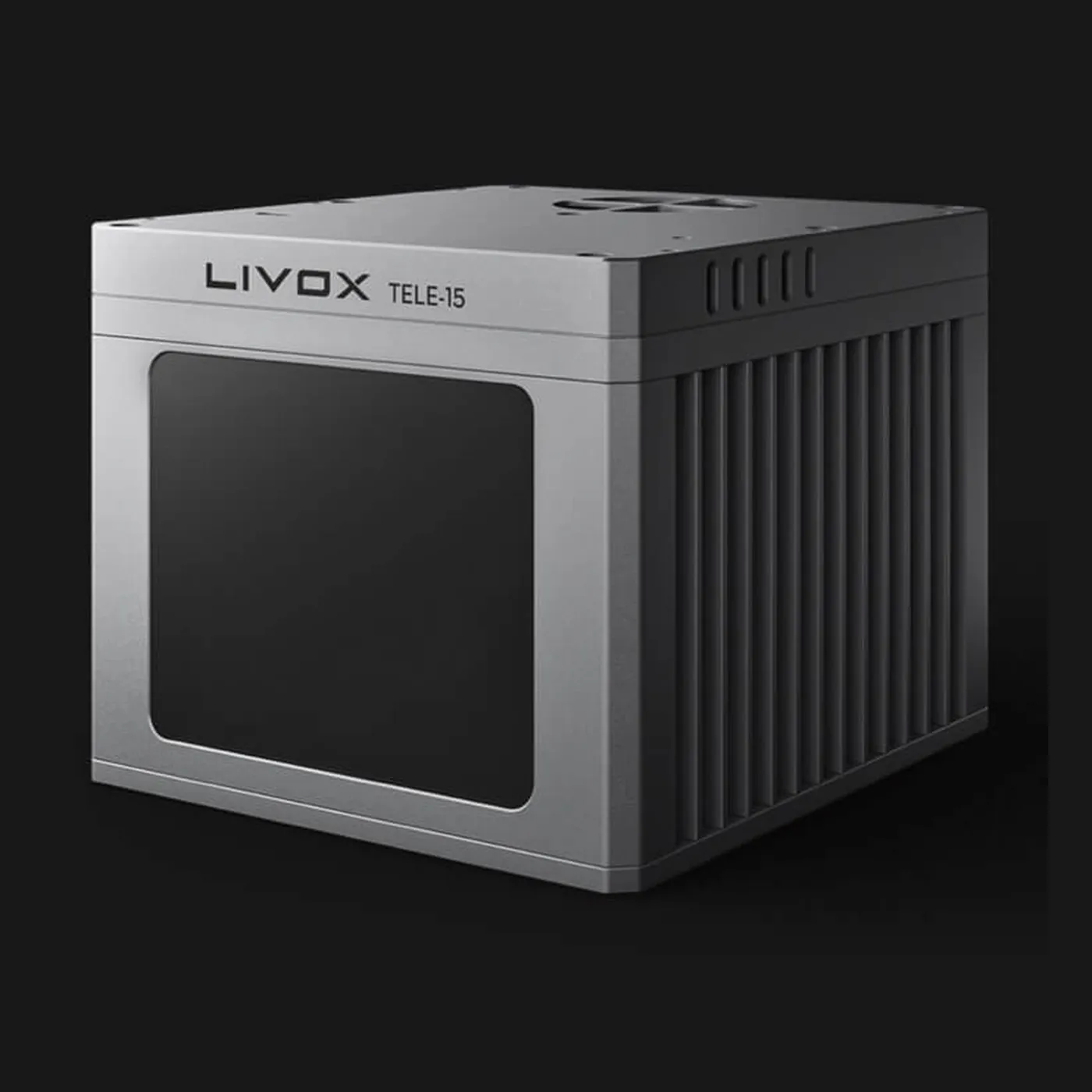

Livox Tele-15 Long-Range Hybrid Solid-State LiDAR
Vendor: Livox (DJI)
Product: Tele-15
Livox Tele-15 long-range hybrid solid-state LiDAR: 320 m @10% / 500 m @50% reflectivity range, 14.5°×16.2° FOV with 99.8% coverage in 0.1 s, 2 cm @20 m precision, <0.03° angular precision, 240k/480k (dual return) pts/s, ≤2 ms latency, built-in BMI088 IMU, IP67, -40 to 85°C operating range, 12 W typical; for high-speed platforms and long-range inspection perception.
| Fov | 14.5° × 16.2° |
| Imu | Built-in BMI088 |
| Laser | 905 nm, Class 1 (IEC 60825-1) |
| Power | 12 W typical |
| Weight | 1600 g / 1500 g (with / without module) |
| Dimensions | 112×94.2×122 mm (with self-dissipation module) |
| Point Rate | 240,000 pts/s (480,000 dual return) |
| Data Latency | ≤2 ms |
| Fov Coverage | 99.8% @ 0.1 s |
| Detection Range | 320 m @10% / 500 m @50% reflectivity |
| Range Precision | 2 cm @20 m (1σ) |
| Angular Precision | <0.03° (1σ) |
| Ingress Protection | IP67 |
| Operating Temperature | -40 to 85°C |
