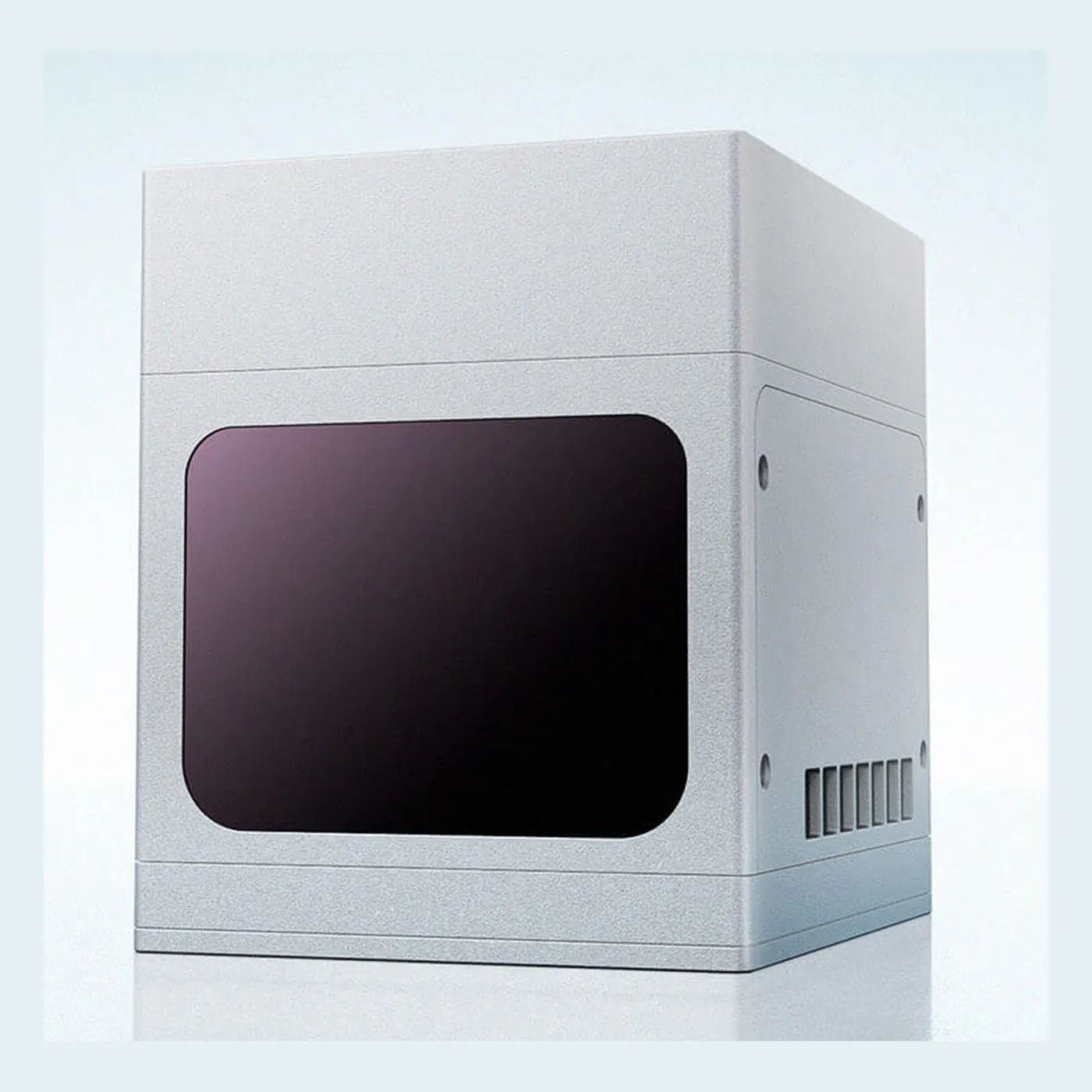

Livox Avia 2 Long-Range Hybrid Solid-State LiDAR
Vendor: Livox (DJI)
Product: Avia 2
Livox Avia 2 long-range hybrid solid-state LiDAR with a 1535 nm eye-safe laser: normal mode 400 m @5% reflectivity with 80°×80° FOV; focus mode ≥800 m @10% (max 1000 m) with 15°×15° FOV; ≤5 cm range accuracy, ≤0.02° angular precision, 350k/100k pts/s, IP66, 50 W steady-state, 9-27 V DC, ≤1.8 kg; for long-range, high-precision perception and fixed-point observation.
| Fov | Normal 80°×80°; Focus 15°×15° |
| Imu | Built-in ICM40609D |
| Laser | 1535 nm, Class 1 (eye-safe) |
| Power | 50 W steady-state (9-27 V DC) |
| Weight | ≤1.8 kg (with fan) |
| Dimensions | 146×113×139 mm (with fan) |
| Point Rate | 350,000 pts/s (normal), 100,000 (focus) |
| Range Accuracy | ≤5 cm (5-400 m); precision ≤4 cm @1σ |
| Detection Range | Normal: 400 m @5%; Focus: ≥800 m @10% (max 1000 m) |
| Angular Precision | ≤0.02° (1σ) |
| Ingress Protection | IP66 |
