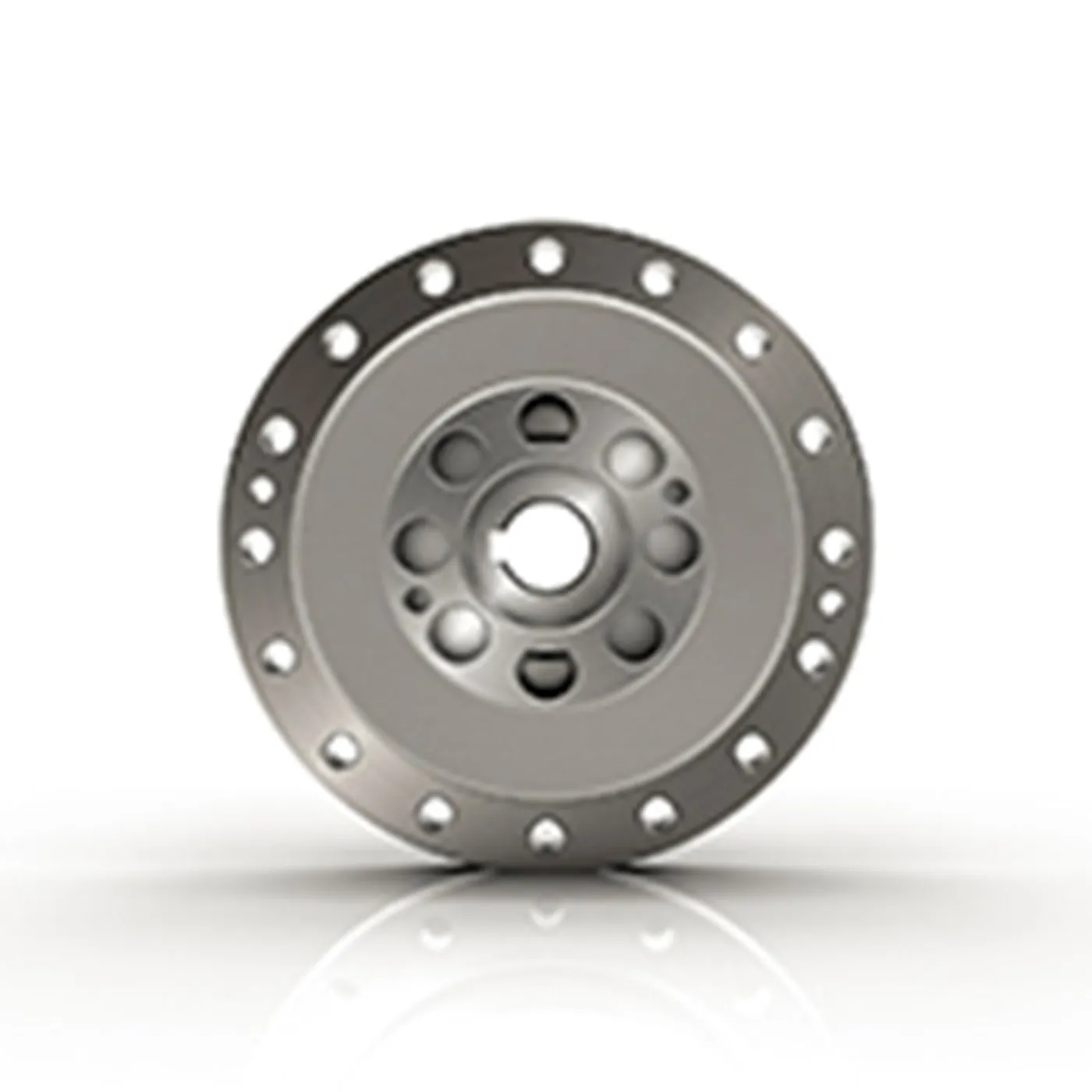

Harmonic Drive CSG-2A Strain Wave Precision Reducer (Component Set)
Vendor: Harmonic Drive
Product: CSG-2A
Harmonic Drive is the inventor and global leader of strain wave (harmonic) gearing. The CSG-2A component set (wave generator, flexspline, circular spline) spans 10 sizes 14-65 with ratios 50-160: rated torque (L10) 7-1,236 N·m, repeated peak 23-3,419 N·m, momentary peak 46-6,175 N·m, standard accuracy 1 arcmin (1.5 for size 14), zero backlash and high torsional stiffness (K1 0.34-54 x10^4 N·m/rad) at only 0.09-6.7 kg - the go-to precision reducer for cobot, humanoid, semiconductor and optics joints.
| Mass | 0.09-6.7 kg |
| Type | strain wave (harmonic) precision reducer, cup-type component set |
| Sizes | 14 / 17 / 20 / 25 / 32 / 40 / 45 / 50 / 58 / 65 |
| Backlash | zero backlash; standard accuracy 1 arcmin (size 14: 1.5 arcmin) |
| Applications | cobot/humanoid robot joints, semiconductor & optics equipment, precision automation |
| Reduction Ratio | 50 / 80 / 100 / 120 / 160 |
| Rated Torque L10 | 7-1,236 N·m |
| Repeated Peak Torque | 23-3,419 N·m |
| Momentary Peak Torque | 46-6,175 N·m |
| Torsional Stiffness K1 | 0.34-54 x10^4 N·m/rad |
