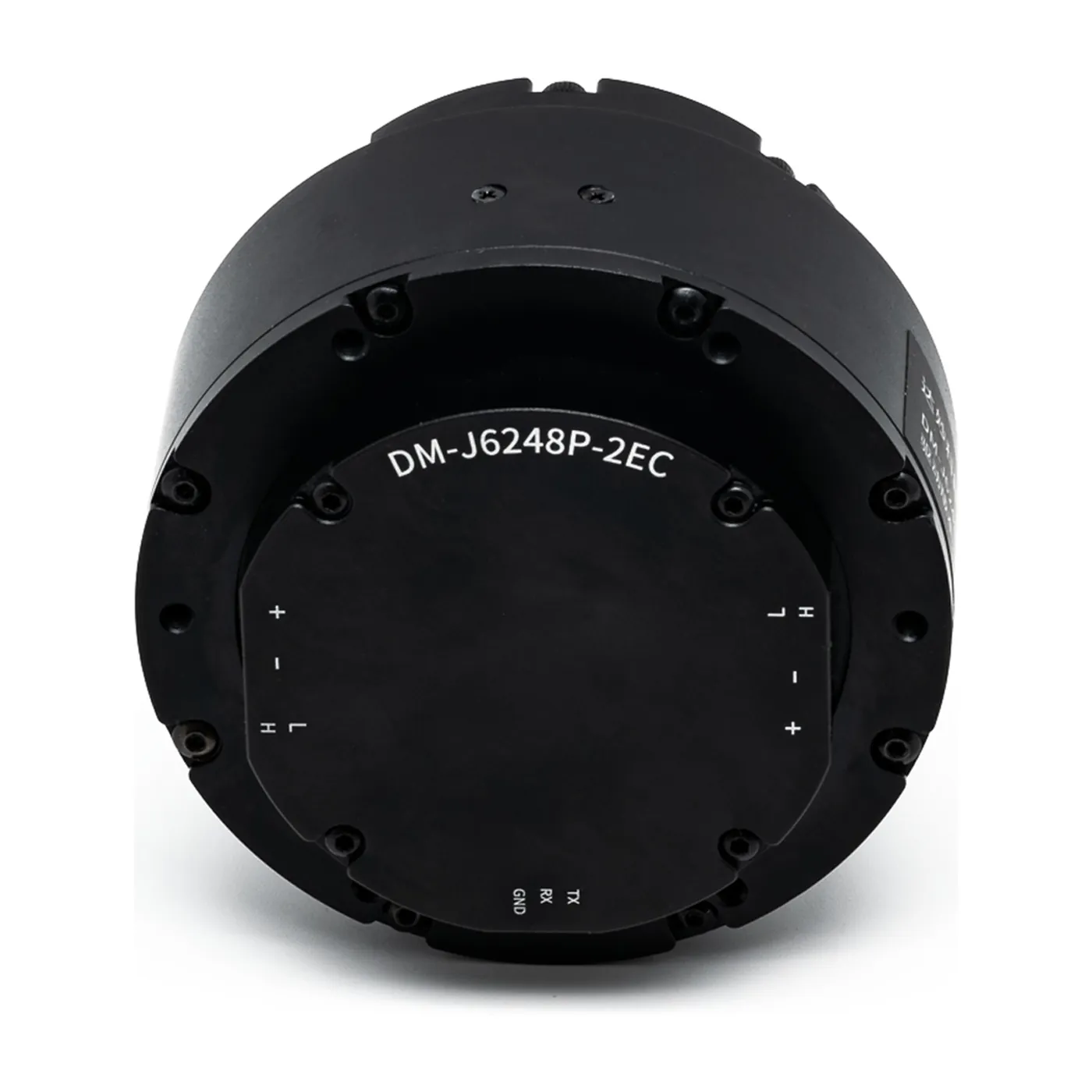

DaMiao DM-J6248P-2EC Planetary Joint Module (30 N·m rated)
Vendor: DaMiao Technology
Product: DM-J6248P-2EC
DaMiao DM-J6248P-2EC high-torque planetary joint module: rated torque 30 N·m, peak 97 N·m, rated speed 30 deg/s, max 75 deg/s, ratio 48:1. CAN @5Mbps, 16-bit mag encoder. 24V supply, joint height 82mm, 17mm hollow shaft, 2250g, radial 4000N / axial 2500N. For heavy-duty, low-speed robot joints.
| Bus | CAN @5Mbps |
| Model | DM-J6248P-2EC |
| Weight | 2250 g |
| Encoder | 16 |
| Voltage | 24V (12-26.5V) |
| Max Speed | 75 deg/s |
| Axial Load | 2500 N |
| Gear Ratio | 48:1 |
| Peak Torque | 97 N·m |
| Radial Load | 4000 N |
| Rated Speed | 30 deg/s |
| Vendor Site | https://www.dmbot.cn |
| Hollow Shaft | 17 mm |
| Joint Height | 82 mm |
| Peak Current | 38.7 A @24V |
| Rated Torque | 30 N·m |
| Rated Current | 11.3 A @24V |
