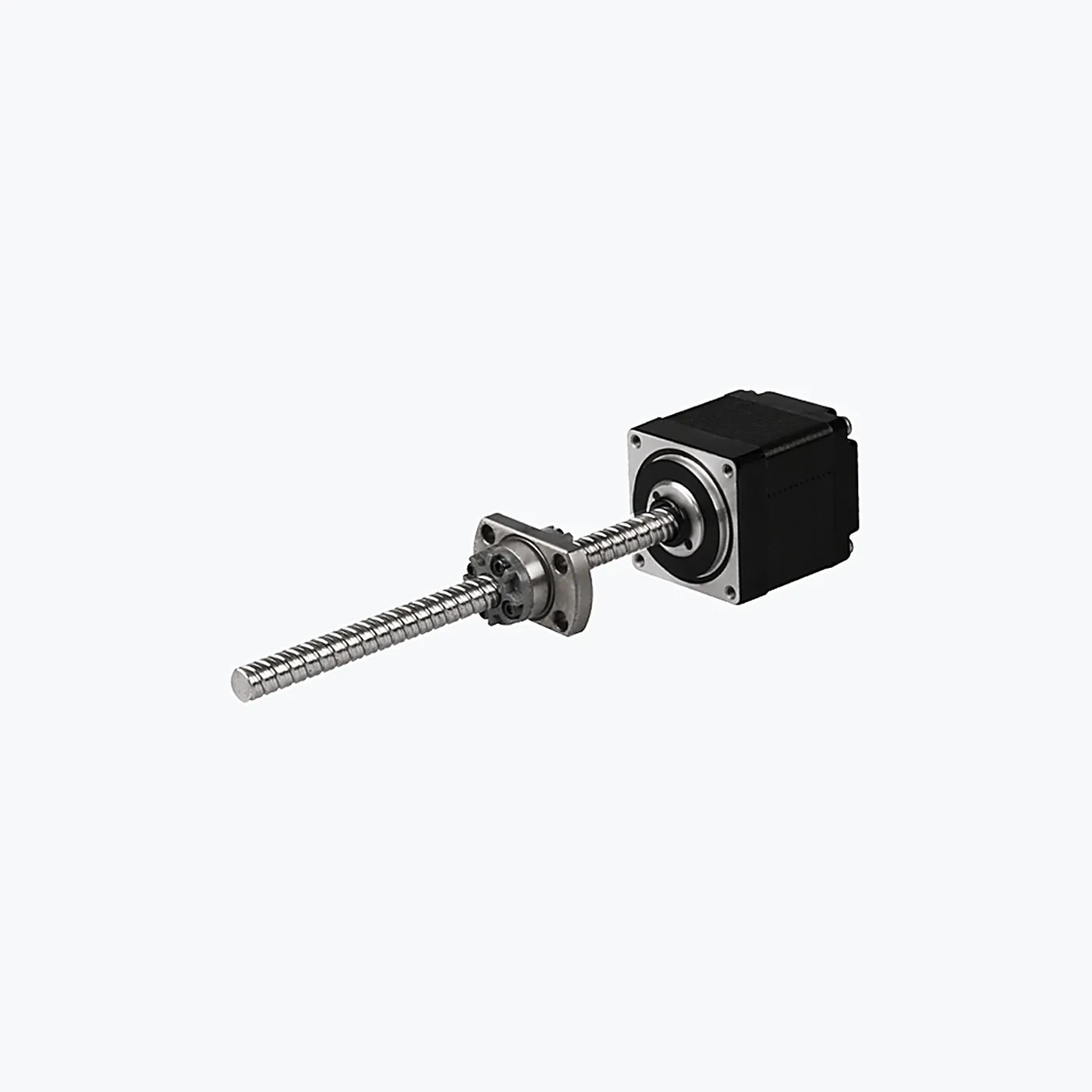

DINGS Ball Screw Linear Actuator Series
Vendor: DINGS
Product: （14-57 / DLG）
DINGS (controlled subsidiary of Jiangsu Leili) ball screw linear actuators in six frame sizes (14-57 mm), all external-drive, plus 28/42 DLG integrated rail-guided and DRS non-guided designs; 90-96% transmission efficiency (vs 26-70% for trapezoidal screws), 0.005-0.1 mm/step; C7 standard accuracy with C5/C3 options, Ф0.8 balls, SCM415H screw/nut at HRC58-62, rated dynamic 680-880 N / static 1200-1500 N, axial backlash ≤0.02 mm; optional encoders (to 1000/2000 resolution) and power-off brake (24 V, 5.5 W, >0.3 N·m holding, 2M-cycle life, <60 dB); for X-Y tables, medical devices, semiconductor and valve control.
| Series | 14 / 20 / 28 / 35 / 42 / 57 mm external drive; 28/42 DLG rail-guided, DRS non-guided |
| Options | encoder to 1000/2000 resolution; brake 24 V 5.5 W, >0.3 N·m, 2M cycles, <60 dB |
| Accuracy | C7 standard; C5 / C3 optional |
| Backlash | axial ≤0.02 mm |
| Ball Screw | Ф0.8 mm balls; SCM415H shaft & nut, HRC58-62 |
| Efficiency | 90 - 96% (trapezoidal nut 26 - 70%) |
| Rated Load | dynamic 680 - 880 N; static 1200 - 1500 N (BS0601/0602/0606) |
| Step Length | 0.005 - 0.1 mm/step |
| Motor Example | 11E2110 2.1 V/1 A/2.1 Ω; 11E2209 3.9 V/0.95 A/4.1 Ω |
