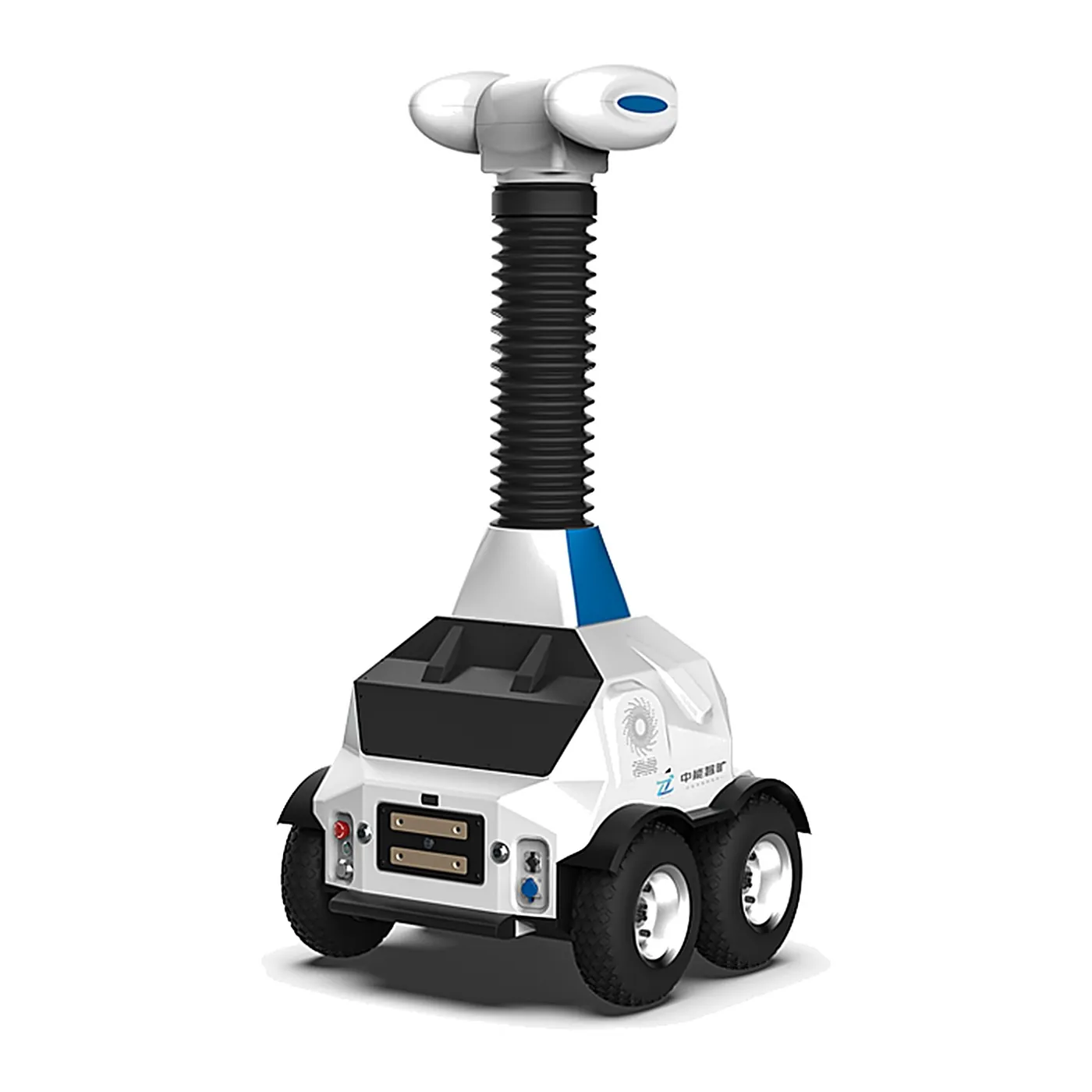

ZNZK RW200 Wheeled Lift Inspection Robot
Overview
The ZNZK-RW200 adds a 0-780mm lifting mast with a dual-sensor pan-tilt to Zhongneng Zhikuang's wheeled chassis for high-position meter inspection in switch rooms, machine rooms and pipe galleries: 103kg, IP54, 4WD on 13-inch tires, 1.2m/s on concrete with zero-radius turning and 6h runtime; LiDAR+IMU navigation with ±10mm extension and ±30mm repeat positioning, 0.06-80m detection range; optional O2/EX/H2S gas modules and a 10.1-inch onboard display, 30x visible-light plus thermal imaging over 5G or Wi-Fi Mesh.
Specifications
| Lift Platform | 0-780mm 0.3m/s |
| Gas detection | O2 0-30%vol / EX 0-100%LEL / H2S 0-500ppm（ CO） |
| Infrared thermal imaging | -20~350℃（ 600℃） 384×288（ 640×480） |
