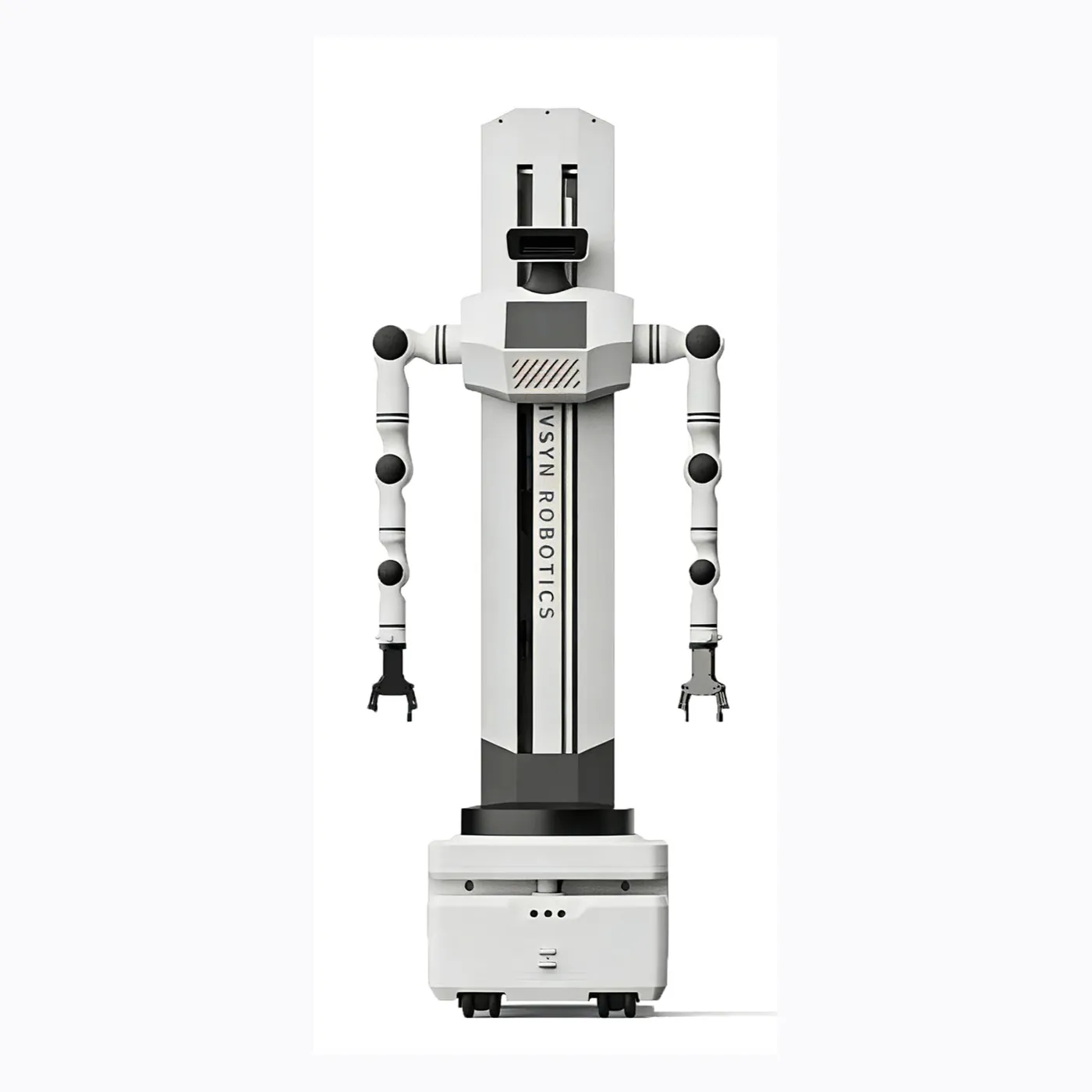

Livsyn L1 Multi-functional Humanoid Robot
Overview
Livsyn L1 upgrades the L0 by adding a lifting column with rotation on top of all L0 capabilities: 1000mm lift stroke, arm height 350-1350mm above ground and ±150-degree column rotation, raising total DoF to 28 (2 waist); it stands 1560mm tall at about 120kg with 80-100kg payload, walks at 0.6-1.2m/s over uneven ground and 12-degree slopes; each arm has 6 DoF and each dexterous hand 6 micro servo electric cylinders with swappable end effectors; compute is an NVIDIA Orin (2048 CUDA + 64 Ampere tensor cores) with a 12-core Cortex-A78AE CPU, plus depth camera, microphone array and speaker; a 24V 30Ah LiFePO4 battery gives over 8h runtime on hard ground with charging within 4h; it targets unmanned retail, logistics warehousing and smart manufacturing.
Specifications
| Load | 80-100kg |
| Degrees of freedom | 28（ 6×2 / 6×2 / 2 / 2） |
| Dexterous hand | 6 / |
| Chassis | +4 2 |
| Endurance | >8h |
| Computing Power | NVIDIA Orin（2048 CUDA +64 Ampere ） 12 Cortex-A78AE |
| Communication | WiFi 2.4G |
