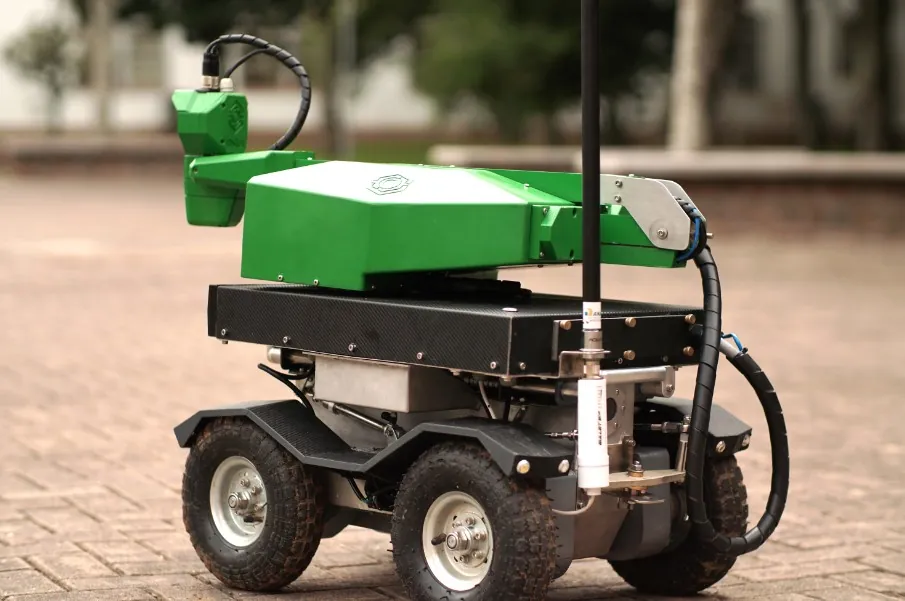

Instor Tupã Wheeled Inspection Robot

Overview

Four-wheel-drive inspection robot from Brazil for hazardous industrial areas: independent suspension on 4 wheels with rubber tires and aluminum chassis, 88mm ground clearance, 45° max slope, IP66 protection; top speed 9 km/h; 5-DoF articulated arm (1260mm) carrying a 4K PTZ camera with thermal imaging, plus front/rear HD cameras and LED lighting with three-channel real-time video; remote control up to 1km (AirMax) or 100m over 5G, optional umbilical reel; lithium battery with 2-10h runtime and fast charge, joystick control with 14-inch LCD or 10-inch tablet (optional IP65).
