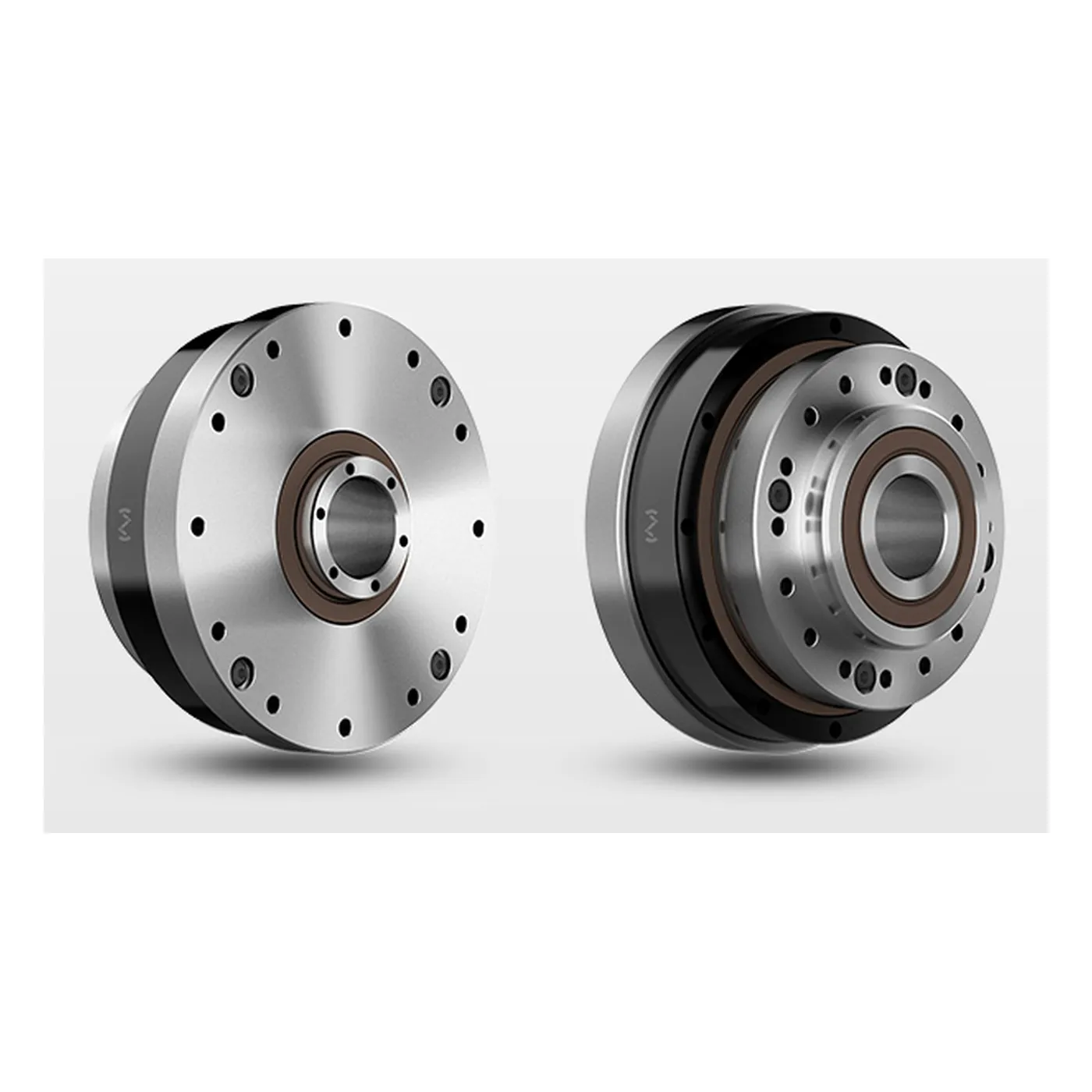

Tongchuan HSG Series Harmonic Reducer
Vendor: Tongchuan Precision
Product: HSG
HSG series harmonic reducers, sizes HSG-14 to HSG-40, ratios 50-120, rated torque 6.7-363 Nm at 2000 rpm, peak 43.7-1454 Nm, input up to 8500 rpm, backlash <=10 arcsec, life 10,000-15,000 h, 0.41-7.7 kg, for cobot and humanoid joints.
| Life | 10,000-15,000 h |
| Ratio | 50-120 |
| Sizes | HSG-14/17/20/25/32/40 |
| Weight | 0.41-7.7 kg |
| Backlash | <=10 arcsec |
| Input Speed | 8500-4000 rpm |
| Peak Torque | 43.7-1454 Nm |
| Rated Torque | 6.7-363 Nm @2000 rpm |
