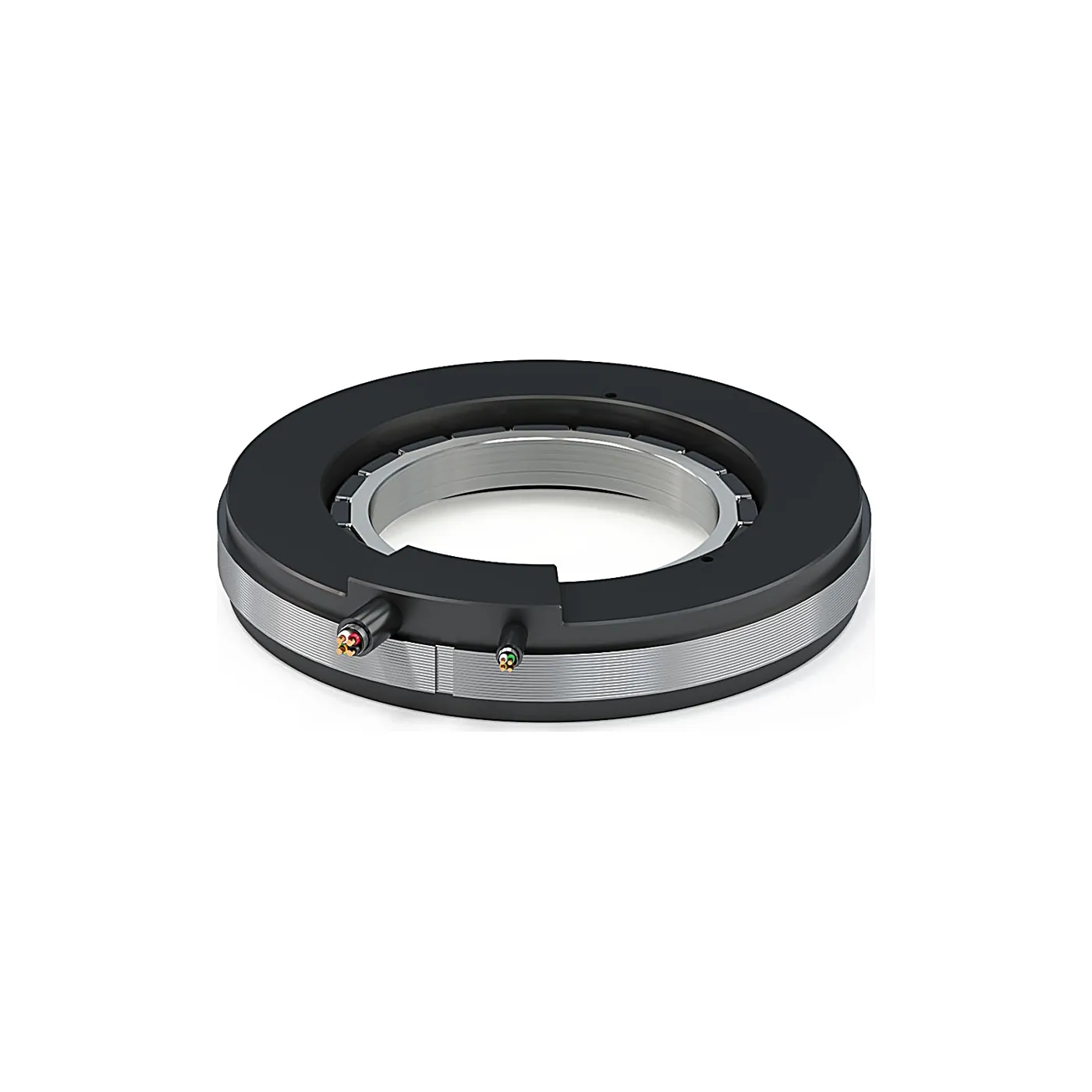

Tecnotion QTR 105 Frameless Torque Motors (1.4-12 Nm continuous)
Vendor: Tecnotion (Netherlands)
Product: QTR 105
Tecnotion (Netherlands) QTR 105 frameless direct-drive torque motors: 105 mm OD with flat stacks from just 17 mm and a large inner diameter for easy integration in medical and precision rotary tables; continuous torque 1.4-12.0 Nm, peak 1.9-18.1 Nm, ultimate 3.0-28.4 Nm, optional winding variants and digital hall sensors; the QTR family spans frame sizes 65/78/105/133/160 for semiconductor, printing and rotary direct-drive applications.
| Family | QTR 65 / 78 / 105 / 133 / 160 |
| Options | digital hall sensor, multiple windings |
| Peak Torque | 1.9-18.1 Nm |
| Stack Height | from 17 mm |
| Outer Diameter | 105 mm |
| Ultimate Torque | 3.0-28.4 Nm |
| Continuous Torque | 1.4-12.0 Nm |
