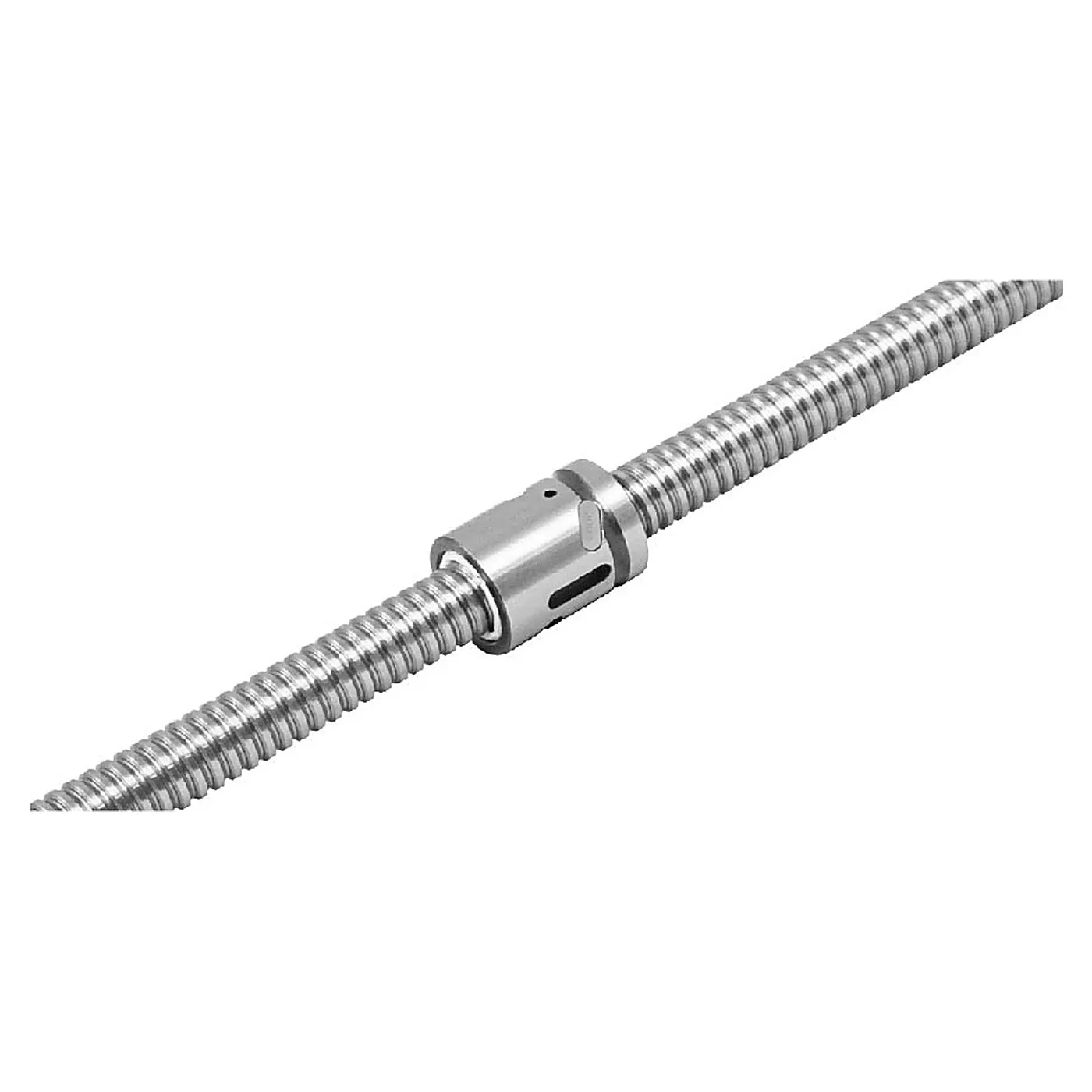

TBI Motion SCI/SCNI Precision Ground Ball Screws (Ø16-80 mm)
Vendor: TBI Motion
Product: SCI/SCNI
TBI Motion SCI/SCNI precision ground ball screw series covers shaft diameters Ø16-80 mm with leads 4-10 mm; dynamic load rating up to 7346 kgf, static up to 31953 kgf and axial stiffness up to 109 kgf/μm; SCNI uses longer nuts for higher load capacity with dual-circuit recirculation for smooth running - built for machine tools, injection molding and heavy robot axes.
| Lead Range | 4-10 mm |
| Shaft Diameter | 16-80 mm |
| Axial Stiffness | up to 109 kgf/μm |
| Max Static Load | 31953 kgf (313 kN) |
| Max Dynamic Load | 7346 kgf (72 kN) |
