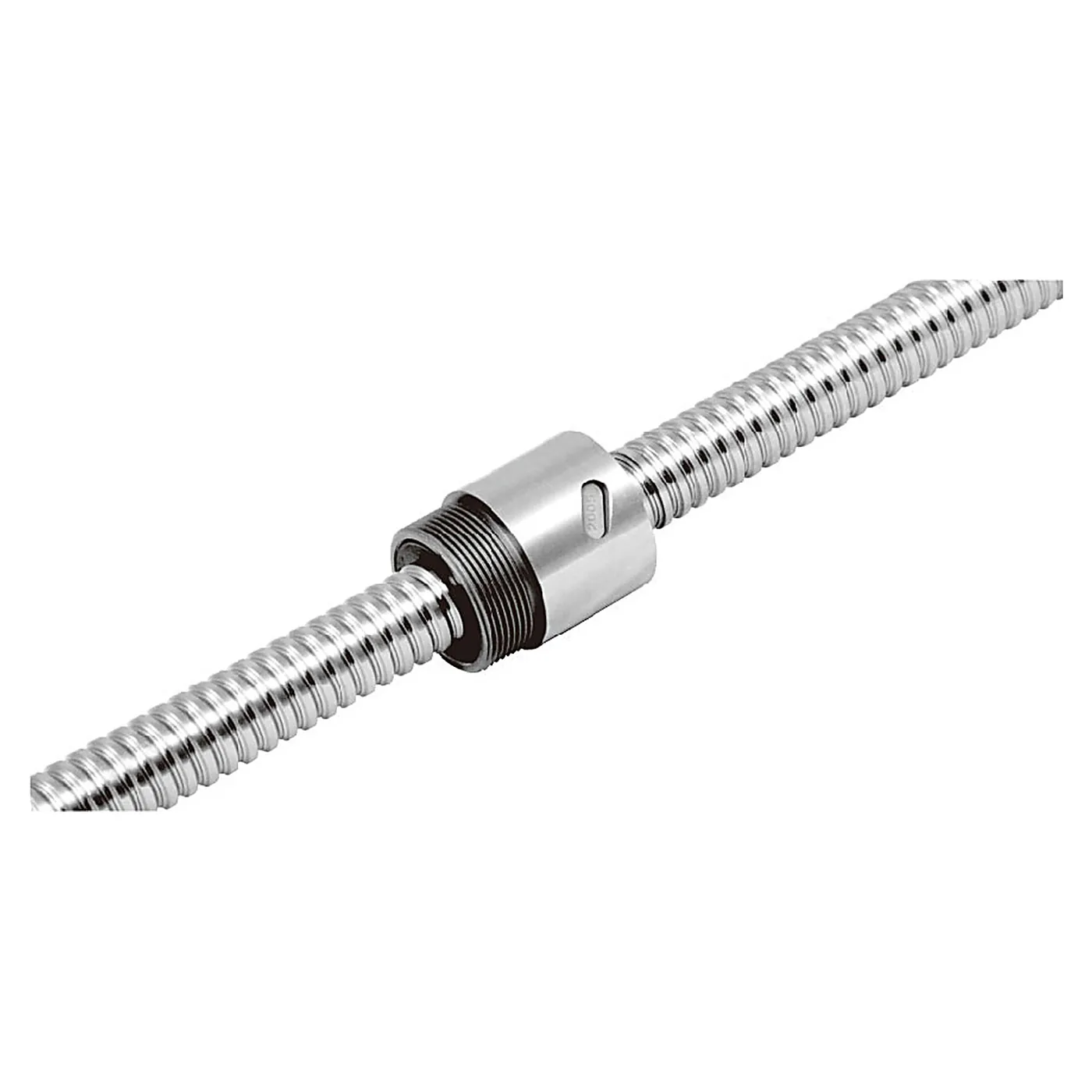

TBI Motion BSH Precision Ground Ball Screws (Ø8-25 mm)
Vendor: TBI Motion
Product: BSH
TBI Motion BSH precision ground ball screw series: shaft diameters Ø8-25 mm with leads 2-10 mm; dynamic load rating up to 2954 kgf, static up to 7295 kgf and axial stiffness up to 41 kgf/μm; external circulation for Ø12 and below, internal circulation for Ø14 and above giving compact, quiet nuts - suited to machine-tool axes, robot travel axes and automation.
| Lead Range | 2-10 mm |
| Circulation | external ≤Ø12 / internal ≥Ø14 |
| Shaft Diameter | 8-25 mm |
| Axial Stiffness | up to 41 kgf/μm |
| Max Static Load | 7295 kgf (71.5 kN) |
| Max Dynamic Load | 2954 kgf (29 kN) |
