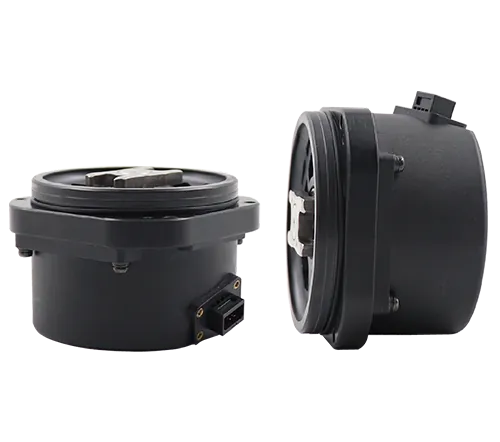

Tamagawa Seiki OIS/OIH-Series Incremental Rotary Encoders

Vendor: Tamagawa Seiki

Product: OIS/OIH （TS5000/TS5100/TS5200/TS5300）

Tamagawa Seiki's incremental rotary encoders span the general-purpose OIS series (OIS38/OIS66/OIS68/OIS128, Φ38-Φ128 mm, 25-5,000 C/T, DC+5 to +24 V, up to 200 kHz response, IP50-IP57 sealing, 7,200 rpm max) and the in-servo OIH series (OIH35/OIH48/OIH60, 500-12,000 C/T with A,B,Z plus U,V,W commutation signals, DC+5 V, 200 kHz, -20 to +85°C); starting torque down to 4.4e-3 N·m with 98 m/s² (10G) vibration and 980 m/s² (100G) shock endurance, the classic speed/position feedback for servo motors, machine spindles and robot joints.
