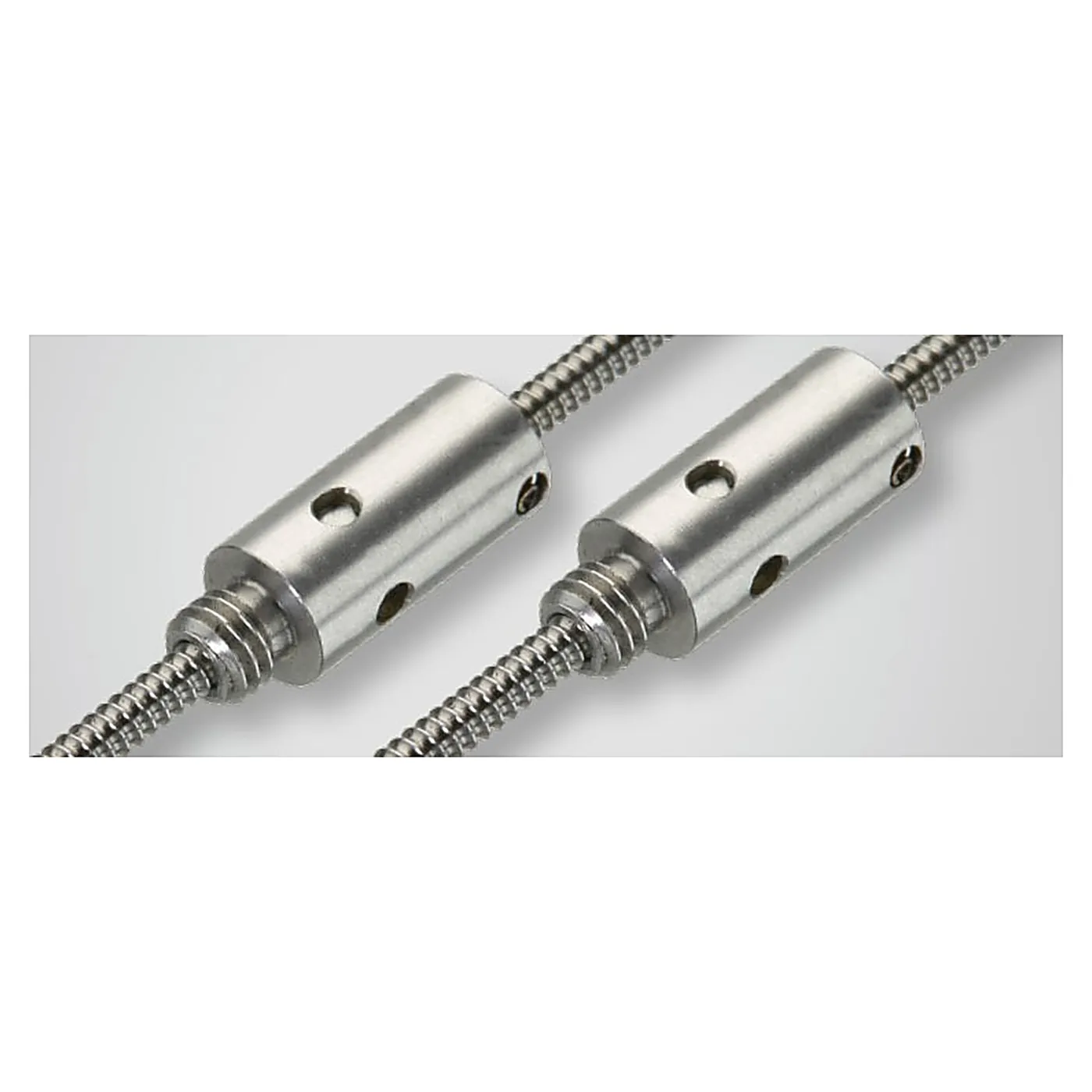

Steinmeyer 1510 Spring-Preloaded Double-Nut Miniature Ball Screws (Ø3-16 mm)
Vendor: August Steinmeyer (Germany)
Product: 1510
August Steinmeyer (Germany) 1510 is a spring-preloaded double-nut miniature ball screw with 2-point contact and internal ball return for backlash-free running at very low friction torque; the 89-model range spans Ø3-16 mm nominal diameters and 0.5-5 mm leads with dynamic capacities 0.09-2.5 kN, static 0.09-3.2 kN, ball diameters 0.6-2 mm and nominal strokes to 800 mm at accuracy class P - suited to medical, semiconductor and humanoid dexterous micro linear drives.
| Lead | 0.5-5 mm |
| Models | 89 |
| Preload | spring-preloaded double nut, 2-point contact |
| Static Load | 0.09-3.2 kN |
| Dynamic Load | 0.09-2.5 kN |
| Ball Diameter | 0.6-2 mm |
| Nominal Stroke | up to 800 mm |
| Nominal Diameter | Ø3-16 mm |
