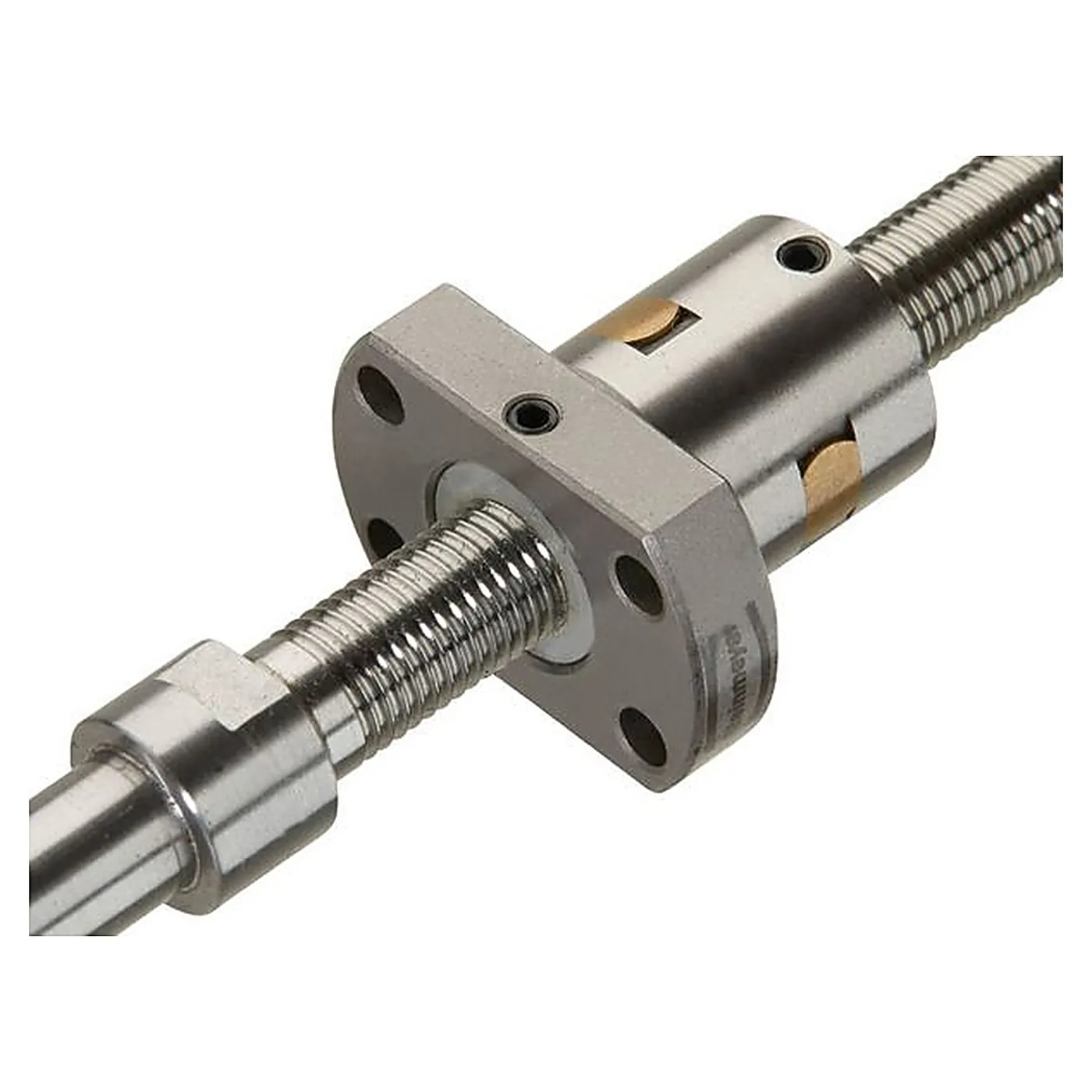

Steinmeyer 1412 Flange-Single-Nut Miniature Ball Screws (Ø3-16 mm)
Vendor: August Steinmeyer (Germany)
Product: 1412
August Steinmeyer (Germany) 1412 miniature ball screws carry a single nut with integral mounting flange (flange OD Ø15-35 mm) for direct screw fixing to the load or carriage - reliable locating, easy assembly, backlash-free running at accuracy class P; the 59-model range spans Ø3-16 mm nominal diameters and 0.5-2.5 mm leads with dynamic capacities 0.09-2.9 kN, static 0.09-4.9 kN, ball diameters 0.6-1.5 mm and nominal strokes to 450 mm for medical, semiconductor and humanoid micro drives.
| Lead | 0.5-2.5 mm |
| Models | 59 |
| Nut Style | single flange nut, flange OD Ø15-35 mm |
| Static Load | 0.09-4.9 kN |
| Dynamic Load | 0.09-2.9 kN |
| Ball Diameter | 0.6-1.5 mm |
| Accuracy Class | P, backlash-free |
| Nominal Stroke | up to 450 mm |
| Nominal Diameter | Ø3-16 mm |
