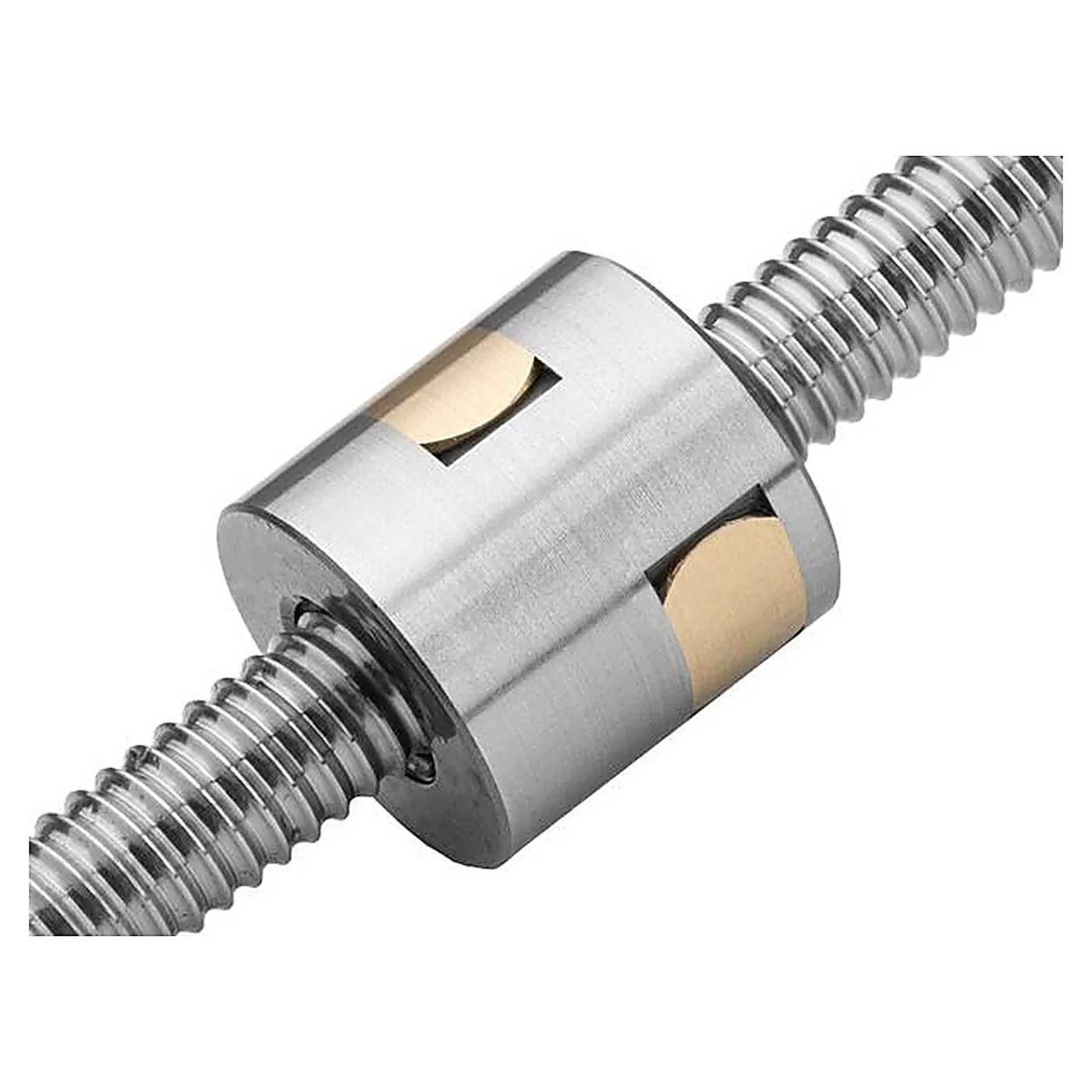

Steinmeyer 1214 Cylindrical-Nut Miniature Ball Screws (Ø3-16 mm)
Vendor: August Steinmeyer (Germany)
Product: 1214
August Steinmeyer (Germany) 1214 miniature ball screws feature a cylindrical nut ground to h6 tolerance for press-fit or locating-ring installation into housing bores - compact, backlash-free and rated accuracy class P; the 59-model range spans Ø3-16 mm nominal diameters and 0.5-2.5 mm leads with dynamic capacities 0.09-2.9 kN, static 0.09-4.9 kN, ball diameters 0.6-1.5 mm and nominal strokes to 450 mm, a compact choice for space-constrained medical, semiconductor and humanoid micro linear drives.
| Lead | 0.5-2.5 mm |
| Models | 59 |
| Nut Style | cylindrical nut, OD ground h6 |
| Static Load | 0.09-4.9 kN |
| Dynamic Load | 0.09-2.9 kN |
| Ball Diameter | 0.6-1.5 mm |
| Accuracy Class | P, backlash-free |
| Nominal Stroke | up to 450 mm |
| Nominal Diameter | Ø3-16 mm |
