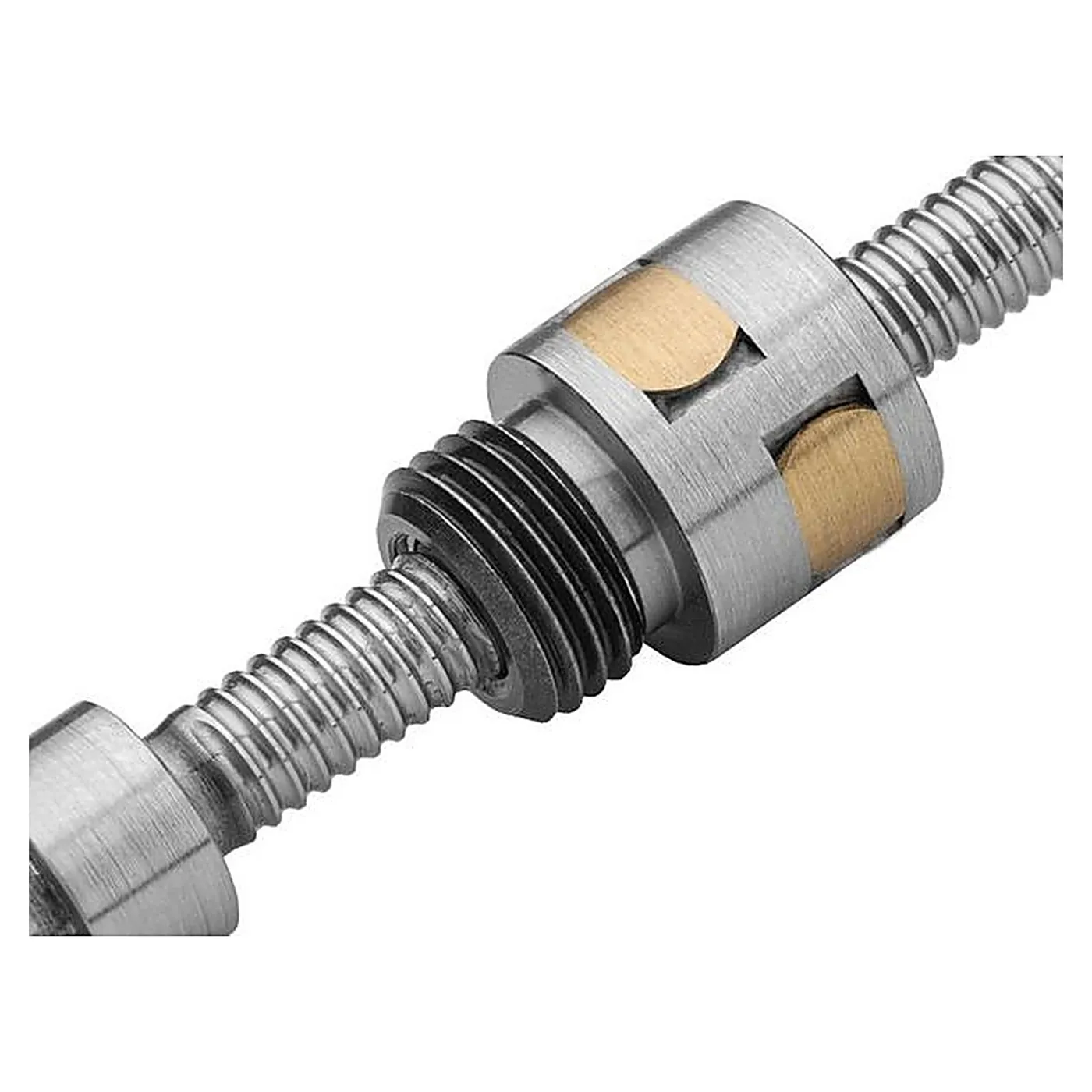

Steinmeyer 1112 Miniature Ball Screws with Connecting-Thread Nut (Ø3-16 mm)
Vendor: August Steinmeyer (Germany)
Product: 1112
August Steinmeyer (Germany) 1112 miniature ball screws use a nut with integral connecting thread for direct screw-on attachment to drive shafts or load interfaces, running backlash-free at accuracy class P; the 59-model range spans Ø3-16 mm nominal diameters and 0.5-2.5 mm leads with dynamic capacities 0.09-2.9 kN, static 0.09-4.9 kN, ball diameters 0.6-1.5 mm and nominal strokes to 450 mm in two shaft styles - suited to medical, semiconductor and humanoid dexterous micro linear drives.
| Lead | 0.5-2.5 mm |
| Models | 59 |
| Nut Style | nut with connecting thread (2 shaft styles) |
| Static Load | 0.09-4.9 kN |
| Dynamic Load | 0.09-2.9 kN |
| Ball Diameter | 0.6-1.5 mm |
| Accuracy Class | P, backlash-free |
| Nominal Stroke | up to 450 mm |
| Nominal Diameter | Ø3-16 mm |
