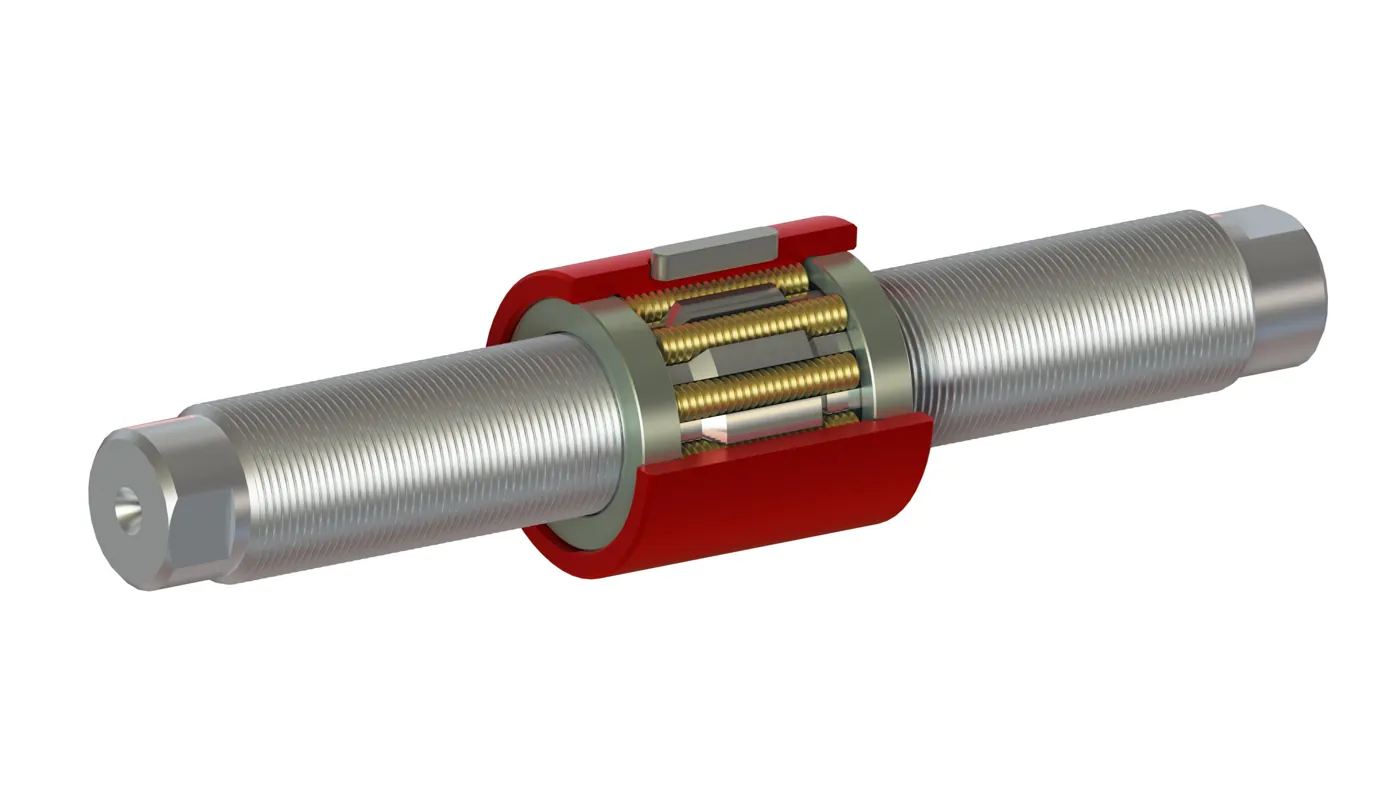

Rollvis RVR Recirculating Planetary Roller Screws
Vendor: Rollvis
Product: RVR
Rollvis (Switzerland) RVR recirculating planetary roller screws achieve 1-2 micron positioning accuracy and very high repeatability with leads as small as 0.25 mm/rev; shaft diameters 8-125 mm, leads 0.25-5 mm and dynamic load ratings 7.3-986 kN in a smaller nut diameter. All-metal construction with precision-ground nuts, rollers and shafts; low input torque to drive and hold loads with back-drive resistance and very high rigidity, ideal for precision positioning, telescopes, downhole tools and grinding machines.
| Lead | 0.25-5 mm |
| Design | recirculating rollers, smaller nut diameter, all-metal precision-ground |
| Dynamic Load | 7.3-986 kN |
| Shaft Diameter | 8-125 mm |
| Positioning Accuracy | 1-2 microns |
