RLS AksIM-2 Off-Axis Rotary Absolute Magnetic Encoder
Vendor: RLS (Renishaw Group)
Product: AksIM-2™

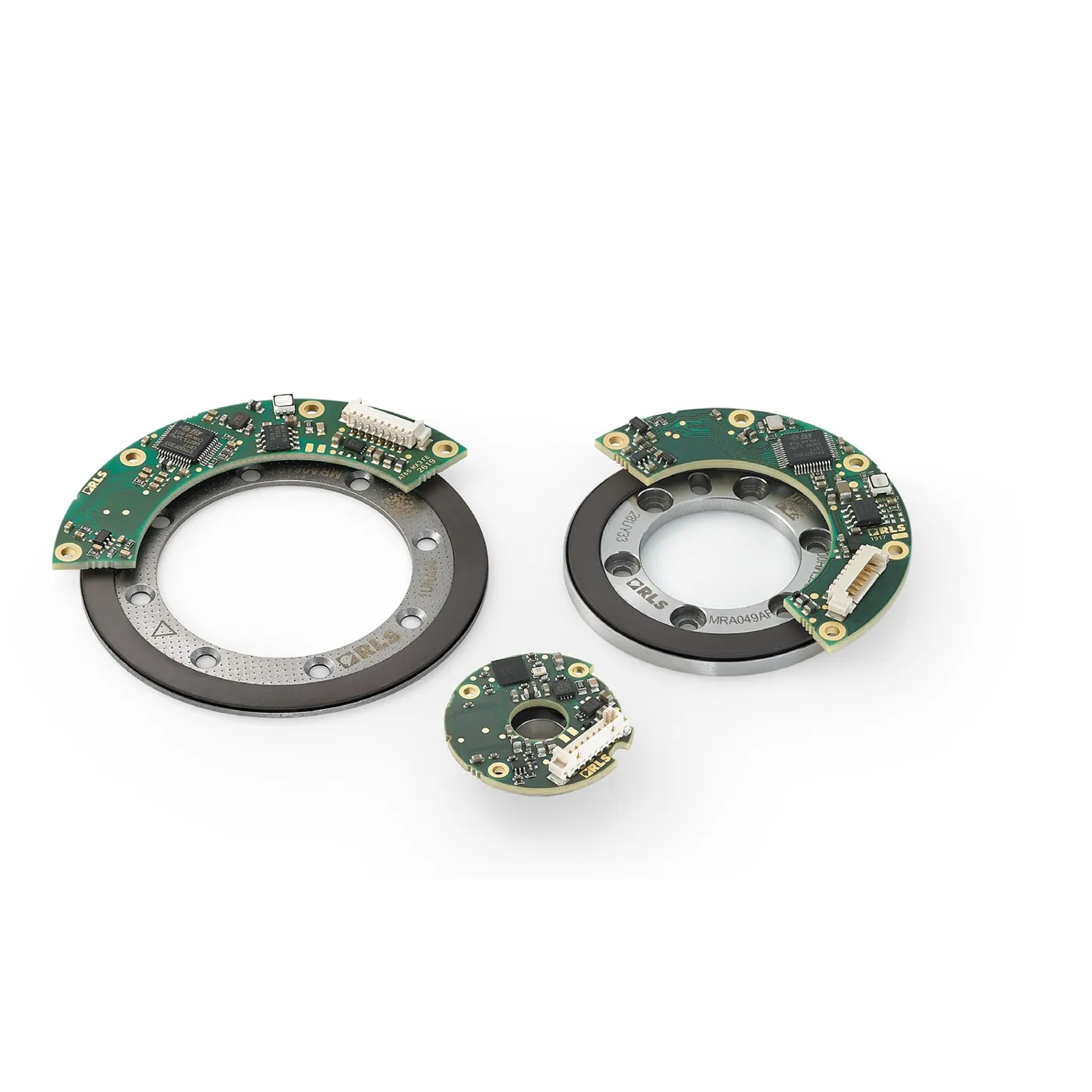

RLS (Slovenia, part of the Renishaw group) is a specialist in rotary and linear magnetic encoders. AksIM-2 is a non-contact off-axis absolute rotary encoder module for applications with limited installation space: a compact, low-profile readhead detects the field of a thin axially magnetized ring. It uses a custom magnetic-sensor ASIC with BiSS C, SSI or asynchronous serial output, resolutions up to 20 bits, true absolute measurement with no hysteresis, built-in self-monitoring and a self-calibration option, and immunity to external magnetic fields; system accuracy after self-calibration is +/-0.004 to +/-0.020 deg (+/-14 to +/-72 arcsec), max speed 10,000 rpm, 4.5-5.5 V supply (typ. 130 mA); ring inner diameters span 8-68 mm in 11 sizes with -40 to +105 C operation. Used for position feedback in electric motors, medical devices and robot joints.
| Type | off-axis rotary absolute magnetic encoder module (readhead + axially magnetized ring) |
| Supply | 4.5-5.5 V at connector; typ. 130 mA, max 150 mA |
| Accuracy | +/-0.004 to +/-0.020 deg (+/-14 to +/-72 arcsec) after encoder self-calibration |
| Features | custom magnetic sensor ASIC, self-calibration option, no hysteresis, true absolute, built-in self-monitoring, immunity to external magnetic fields |
| Humidity | 0-70% non-condensing |
| Datasheet | MBD01 (cdn.rls.si/documents/datasheets/MBD01.pdf) |
| Max Speed | 10,000 RPM |
| Readheads | MB022 / MB029 / MB039 / MB049 / MB053 / MB064 / MB080 with matching MRA rings |
| Interfaces | BiSS C, SSI, asynchronous serial |
| Resolution | up to 20 bit |
| Temperature | operating -40 to +105 C (MB022: -40 to +85 C); storage -40 to +105 C |
| Applications | electric motors, medical, robotics |
| Ring Sizes Id | 8 / 10 / 12.7 / 20 / 25 / 30 / 34 / 40 / 55 / 64 / 68 mm |
