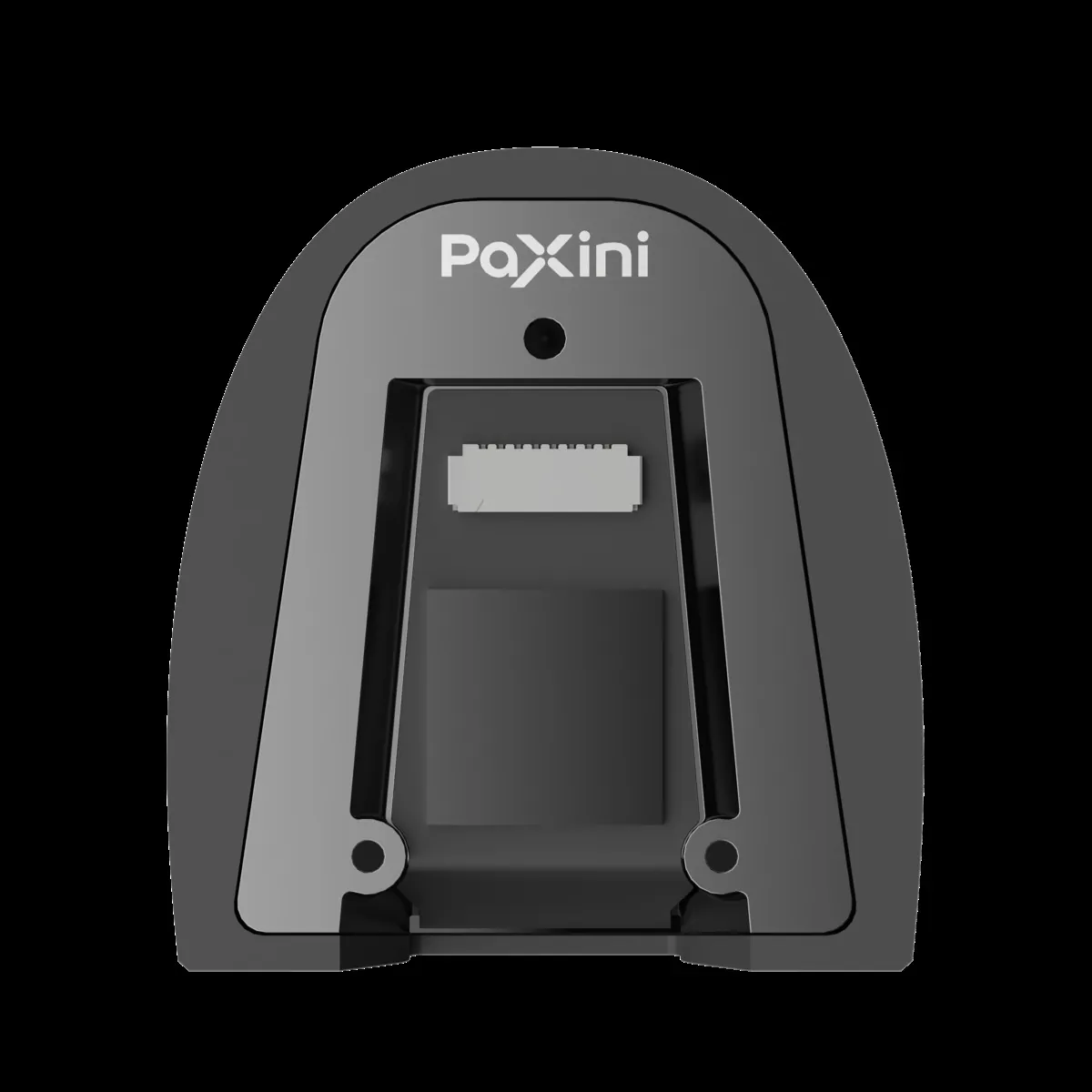

PaXini PX-6AX-GEN3 Third-Gen Professional 6D Tactile Sensor
Vendor: PaXini
Product: PX-6AX-GEN3
PaXini PX-6AX-GEN3 third-generation 6D Hall-effect array tactile sensor: 0-25 N normal / ±10 N tangential range, 0.01 N minimum force resolution, 0.1 mm spatial resolution, up to 717 taxels, 1 MHz sampling with 1 kHz output, <0.5%FS repeatability, IP68 sealing and >10M press life across 12 fingertip/fingerpad/palm form factors for dexterous hands and humanoid robots.
| Life | >1000 |
| Range | 0-25 N ±10 N |
| Taxels | 717 |
| Ingress | IP68 |
| Overload | 200% / 300% |
| Sampling | 1,000,000 Hz（ 1000 Hz） |
| Min Force | 0.01 N |
| Repeatability | <0.5%FS |
| Operating Temp | 0-50°C |
| Supply Voltage | 3-5 V |
| Spatial Resolution | 0.1 mm |
