Neugart PLE Economy Planetary Gearboxes (5-800 Nm, i=3-512)
Vendor: Neugart (Germany)
Product: PLE

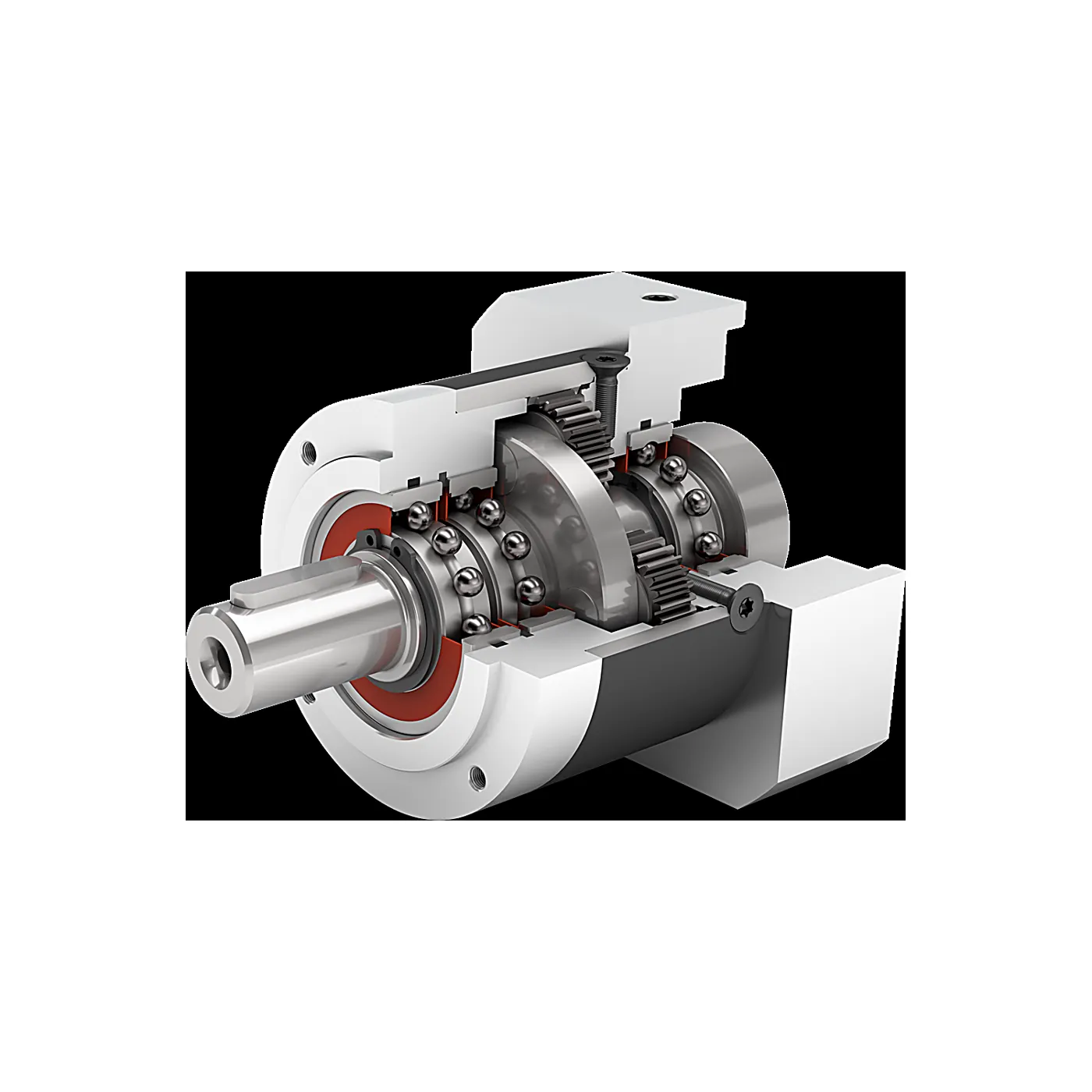

Neugart (Germany) PLE is an economy spur-gear planetary gearbox in five frame sizes PLE040-PLE160 with cyclic torque 5-800 Nm, ratios i=3-512 and standard torsional backlash <6-<15 arcmin; radial force 200-5,000 N, axial force 240-11,000 N, single-stage efficiency 98%, 20,000 h service life, IP54, -25 to 90°C, lifetime grease lubrication and any mounting position - a cost-effective servo/stepper gearbox for packaging, conveying and general automation.
| Ratios | i=3-512 |
| Efficiency | 98 / 97 / 92 % (1/2/3 stages) |
| Protection | IP54 |
| Axial Force | 240-11,000 N |
| Frame Sizes | PLE040 / PLE060 / PLE080 / PLE120 / PLE160 |
| Temperature | -25 to 90 C |
| Radial Force | 200-5,000 N |
| Service Life | 20,000 h |
| Cyclic Torque | 5-800 Nm |
| Torsional Backlash | <6 to <15 arcmin (standard) |
