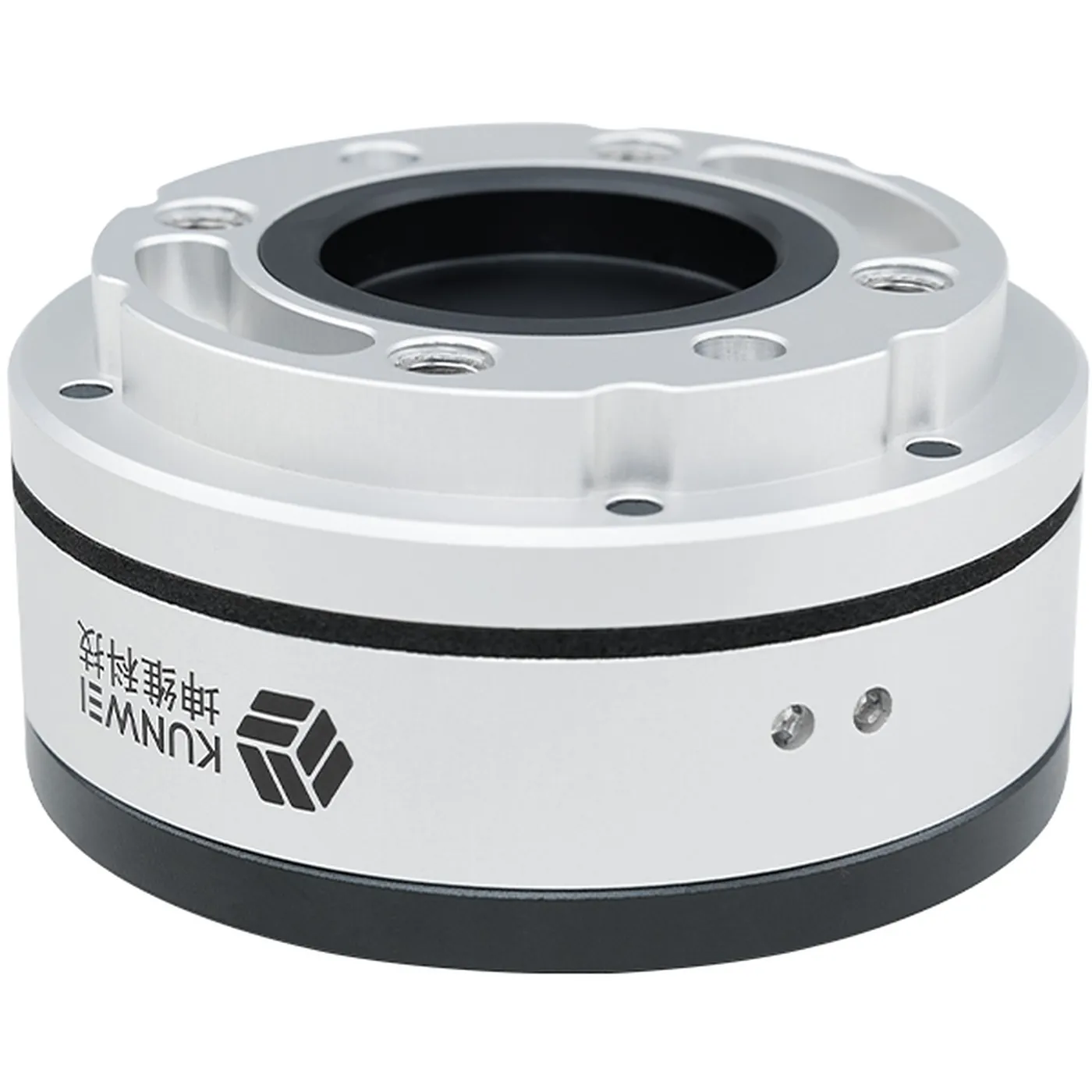

Kunwei KWR75 Series 6-Axis Force/Torque Sensor
Vendor: Kunwei
Product: KWR75
The Kunwei KWR75 series is a 75 mm-diameter general-purpose 6-axis force/torque sensor in aerospace-grade alloy with embedded high-precision smart electronics; eight range versions (Fz 30-3000 N, Mz 1.5-45 N·m) calibrated via six-axis combined calibration deliver 0.5%FS accuracy, 0.1%FS repeatability and 0.03%FS resolution, with 300%FS overload, IP64 protection and only 0.08-1.12 kg weight; full industrial-protocol support for robot joints, arm end-effectors and test rigs.
| Height | 31.5-33.5 mm |
| Weight | 0.08-1.12 kg |
| Accuracy | 0.5% F.S. |
| Diameter | 75 mm |
| Material | aluminum alloy / alloy steel |
| Overload | 300% F.S. |
| Protection | IP64 |
| Resolution | 0.03% F.S. |
| Repeatability | 0.1% F.S. |
| Rated Range Fz | 30-3000 N |
| Rated Range Mz | 1.5-45 N·m |
